FloorCrafter

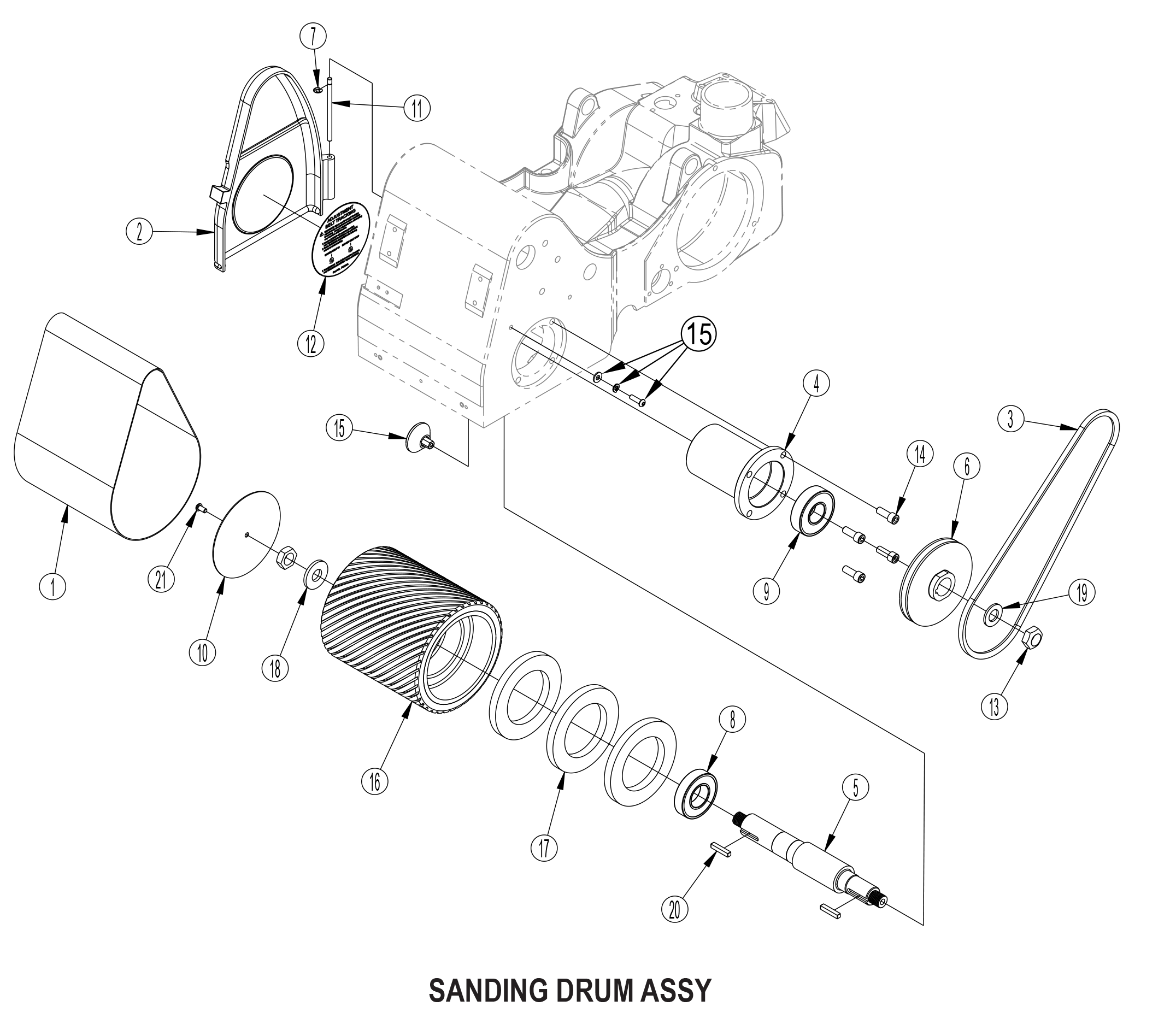

Sanding Drum Assembly
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |

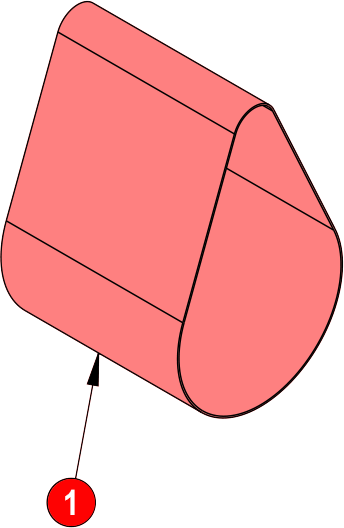

| 1 | 56382754 | 1 | Beltabrasive100grt 8sndrs Cs=5 | 11 | 60389A | 1 | Pin Hinge | |

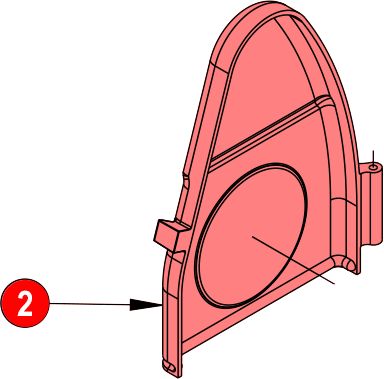

| 2 | 20021A | 1 | Access Door (07014A, 07202A, 56380917) | 12 | 70236A | 1 | Label Belt Tracking | |
| 20021B | 1 | Access Door, Blk (07014B) | 13 | 81106A | 2 | Nuthex Lock3/4-10 | ||

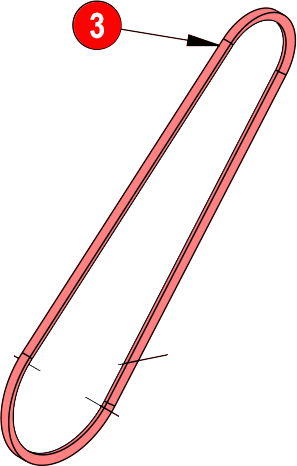

| 3 | 51024A | 1 | Belt Drive | 14 | 86110A | 4 | Screw-3/8-16 X 1-Socket Head | |

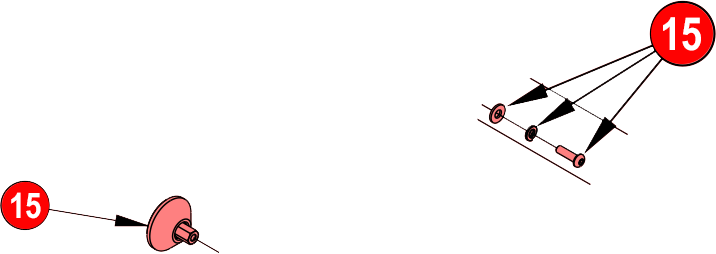

| 4 | 51051A | 1 | Bearing Carrier | 15 | 10958A | 1 | Roller Asm. | |

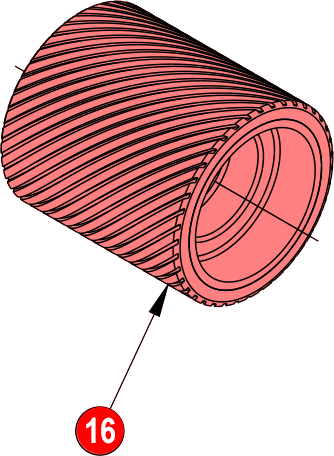

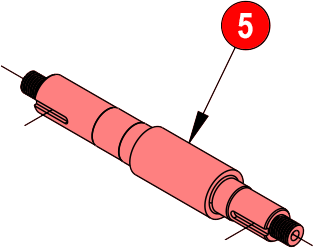

| 5 | 51052A | 1 | Shaft Arbor | 16 | 20015A | 1 | Wheel Contact | |

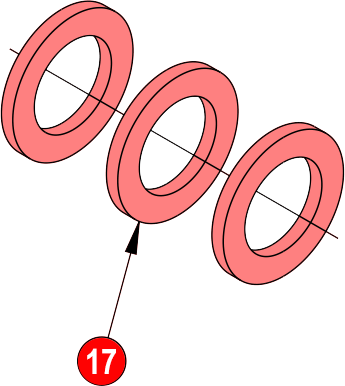

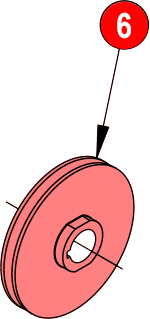

| 6 | 51053A | 1 | Pulley Drum | 17 | 30675A | 3 | Dust Shield | |
| 7 | 51211A | 1 | E-Ring .25 Dia | 18 | 60377A | 1 | Retainer Contact Wheel | |
| 8 | 51223A | 1 | Bearing Ball | 19 | 60378A | 1 | Retainer Drum Pulley | |

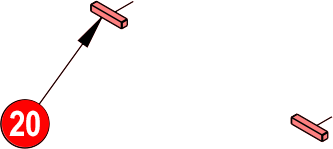

| 9 | 51224A | 1 | Bearing Ball | 20 | 60394A | 2 | Key Square .250 X 1.38 | |

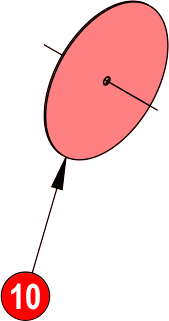

| 10 | 60376A | 1 | Plate Drum End | 21 | 87700A | 1 | ew 1/4-20 X 1/2 B.H. |
