To purchase parts for the Legend (Base Assembly 2):

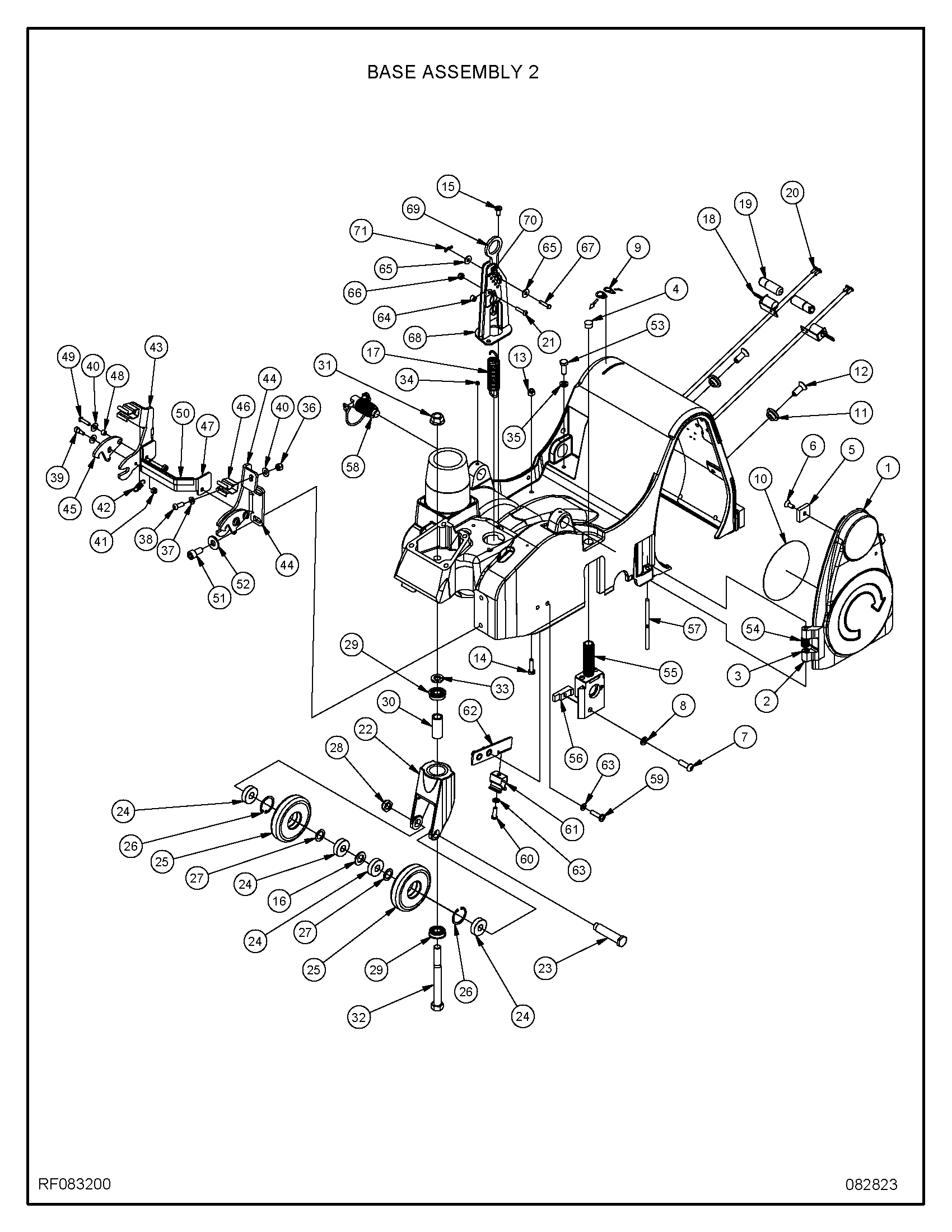

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".





ITEMQTYPART NUMBERDESCRIPTIONITEMQTYPART NUMBERDESCRIPTION
11AS037202DOOR, DRUM, BLACK362NB025900NUT, LOCK, 1/4", SS
 1AS037205DOOR, DRUM, RED372NB6110WASHER, LOCK, 1/4"
 1AS037206DOOR, DRUM, BLUE382NB049000SCREW, BH, 1/4-20 X 3/4, SS
 1AS037207DOOR, DRUM, GOLD39280018ABOLT SHOULDER 1/4X1/4
 1AS037208DOOR, DRUM, WHITE406NB025400WASHER, FLAT, 1/4", SS
23NB077600WASHER, NYLON, 1/4 ID X .1/2 OD X 1/16 THK416NB030700NUT, LOCK, #10-24, SS
3151211AE-RING .25 DIA422AS059200SPRING, LATCH, DOLLY, BRACKET
4156323560BUTTON PLUG .500 E00046431AS046101BRACKET, DOLLY, LEFT
5160906ABLOCK WEAR EZ-8441AS046102BRACKET, DOLLY, RIGHT
61962505SCR 1/4 -20X 5/8 SF ST CAP452AS046000LATCH, DOLLY
71NB5282SCREW, BH, 5/16-18 X 1462AS064100CLIP, RETAINING
81NB6111WASHER, LOCK, 5/16"471AS127300BRACKET, CROSSBAR, SUPPORT
91AS015100DECAL, DIRECTION, BELT TENSION482AS127200SPACER, LEGEND, DOLLY
10170236ALABEL BELT TRACKING492NB033300SCREW, BH, 10-24 X 7/8
112AS045000STUD, KEYHOLE506.00 inIN1015TRIM, BATTERY TRAY
122NB044500SCREW, SOCKET, FLAT, C/S, 3/8-16 X 1"51486112ASCREW, 3/8-16 X 3/4 SOCKET HD
13181102ANUT STOP ELASTIC 1/4-20 HEX524NB3450WASHER, FLAT,USS, 3/8"
141NB6530SCREW, CAP, HH, 1/4-20 X 153185812ASCREW 5/16-18 X 7/8 HEX HD GR5
152962823SCR 1/4-20 X 1/2 PN ST PH541AS051200SPRING, TORSION, DOOR
16187003AWASHER .59X1.00X.09 FLAT ST551AS047800BRACKET, LEVELING, ASSEMBLY
171AS047400SPRING, TENSION, HEAD PRESSURE561AS048200CLAMP, AXLE BLOCK
182AS009500SOCKET, ASSY, LAMP, BAYONET571AS051300PIN, HINGE, DRUM DOOR
192AS055600LAMP, 12V DC, LED, BAYONET582AS050000PIN, PULL, ASSEMBLY
20485303ASCREW, 8-32 X 3/8, PN ST PH592NB030400SCREW, PHILLIPS, PAN HD, 1/4-20 X 1
211NB049100SCREW, BH, 10-24 X 7/8, SS601NB049000SCREW, BH, 1/4-20 X 3/4, SS
22120024AYOKE CASTER611AS064100CLIP, RETAINING
23160353AAXLE WHEEL621AS064700BRACKET, CLIP ASSEMBLY
24451226ABEARING BALL 6002633NB6110WASHER, LOCK, 1/4"
25219611AWHEEL ASM CASTER 80 A641NB078600SPACER, NYLON, .192 ID X .25 L
262747304RING RETAIN ARM BRG 37652NB060700WASHER, NYLON, .218 ID x .625 OD x .062 TH
27261355ASPACERCASTER WHEEL AM 8&12661NB030700NUT, LOCK, #10-24, SS
281NB003100NUT, HEX, 1/2"-13, NYLOCK, JAM671NB078500PIN, CLEVIS, 3/16 DIA X .875
29251279ABEARING BALL-1/2X1-1/8X5/16681AS066500BRACKET, HEAD PRESSURE,WLDMT
30160355ASPACER CASTER BEARING691AS066600LEVER, HEAD PRESS., SELECT
31181209ANUT LARGE FLANGE 1/2-13701AS079100DECAL, HEAD PRESSURE, LEGEND
321NB073400BOLT, HEX, 1/2-13 X 4.5, GD 8711NB078900PIN, COTTER , 3/16, HAIRPIN
33187101AWASHER LOCK 1/2 NOM721AS054800CORD, LIGHT, LEGEND (NOT SHOWN)
342NB072400SCREW, SET, 1/4-20 X 3/16"732AS078700CONNECTOR, 5 CONDUCTOR (NOT SHOWN)
351980652WASHER, LOCK, 5/16
