American 12 Motor Assembly

Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.

part 29

part 28

part 27

part 26

part 25

part 24

part 23

part 22

part 21

part 20

part 19

part 18

part 17

part 16

part 15

part 14

part 13

part 12

part 11

part 10

part 9

part 8

part 7

part 6

part 5

part 4

part 3

part 2

part 2

Item	Part Number	Qty	Description		Item	Part Number	Qty	Description
1	56381703	1	MOTOR PULLEY AM-12		15	170674	3	CONNECTOR WIRE NUT - RED

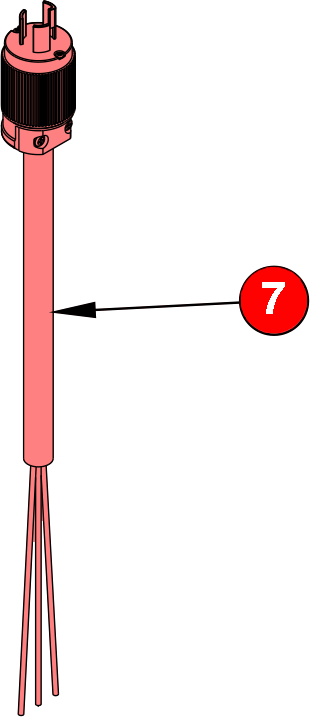

2	56382557	1	MOTOR CORD 3P-4W		16	962870	1	SCR 3/8 -16X1 BT ST ALLEN
3	56382827	1	CABLE CONNECTOR 3/4		17	MX1075	1	WASHER, LOCK, 3/8"

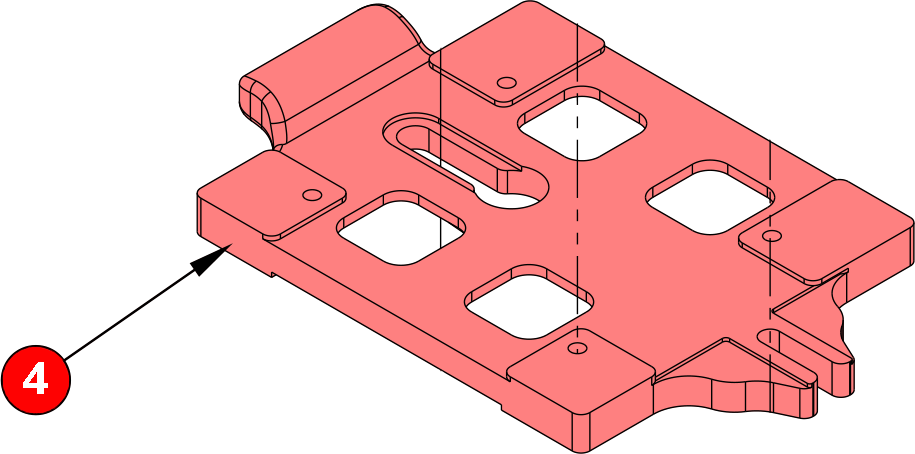

4	AS019300	1	PLATFORM, MOTOR, BLACK, AM-12		[ ]	AS021500	1	GASKET, LID, CONDUIT BOX, 3PH
5	AS018300	1	MOTOR, 10HP, 230V 60HZ, 213TZ		[ ]	AS021600	1	BEARING, SHAFT END, 3PH
6	87034A	1	RETAINER MOTOR PULLEY		[ ]	AS021700	1	BEARING, FAN END, 3PH
7	962288	4	BOLT 3/8-16 X 1.00 HEX HD		[ ]	AS021800	1	FAN, MOTOR, 3PH
8	68704A	1	WASHER-SCREW-MOTOR		[ ]	AS021900	1	CONDUIT BOX, 3PH
9	84220A	1	SCREW 1/2-13 X 2 1/4 FLAT HD		[ ]	AS022000	1	LID, CONDUIT BOX, 3PH
10	67820A	1	SPACER-SCREW-MOTOR		[ ]	AS022100	1	GASKET, CONDUIT BOX, 3PH

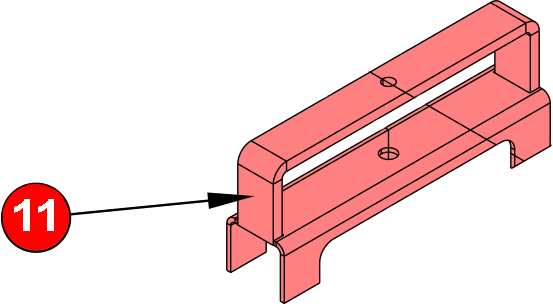

11	87006A	1	WASHER .56 X 1.38 X 11 FLAT ST		[ ]	AS022200	1	COVER, FAN, MOTOR, 3PH
12	85706A	1	SCREW 1/2-13 X 1-3/4 HX ST CAP

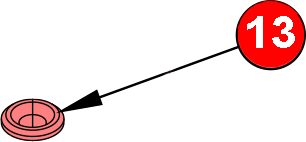

13	87101A	1	WASHER LOCK 1/2 NOM					[ ] = NOT SHOWN
14	920196	1	NUT 1/2-13 HEX JAM
