B-2+ Edger

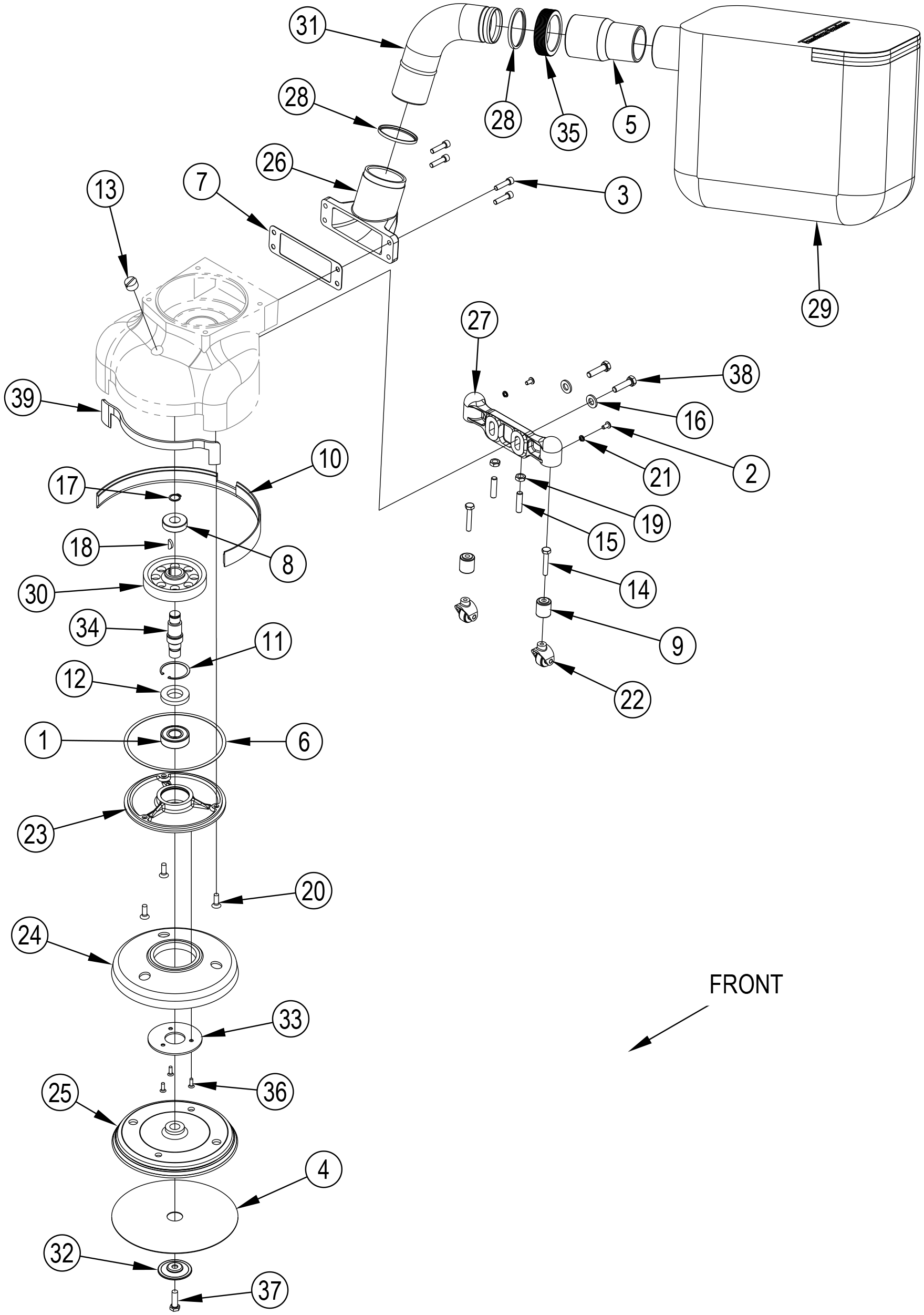

Lower Assembly
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |

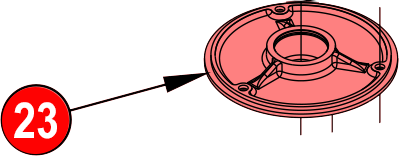

| 1 | 902550 | 1 | Bearing Ball-6203 | 23 | 12906A | 1 | Cover, Asm - Gear Case | |

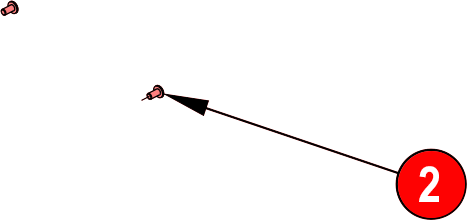

| 2 | 962015 | 2 | Screw 10-24 X 3/8 Pn St Ph | 24 | 15000A | 1 | Assembly, Roller Guard | |

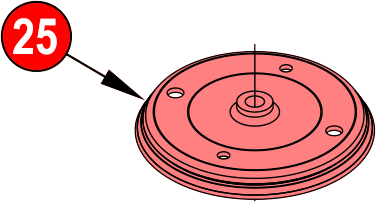

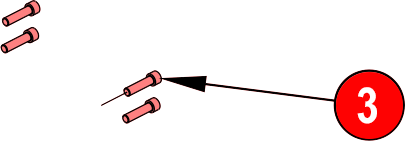

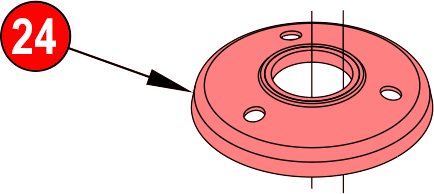

| 3 | 962454 | 4 | Scr 1/4 -20x1 Sc St Cap | 25 | 21067A | 1 | Disc Sanding | |

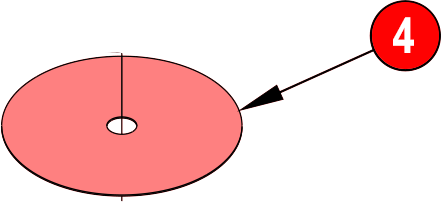

| 4 | 56382755 | 1 | Disc 7 Sanding 60 Cs=100 (Case of 100 / One disc is included with the machine) | 26 | 21078A | 1 | Exhaust Adaptor | |

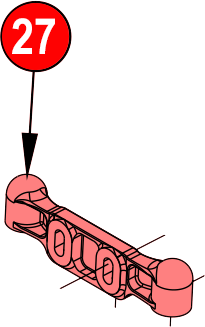

| 5 | 30563A | 1 | 2" X 1.50" HOSE ADAPTOR | 27 | 21106A | 1 | Bracket, Caster | |

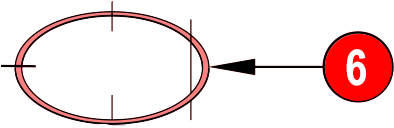

| 6 | 34232A | 1 | Gasket-Gear Case Cover | 28 | 30613A | 2 | Seal, Pipe | |

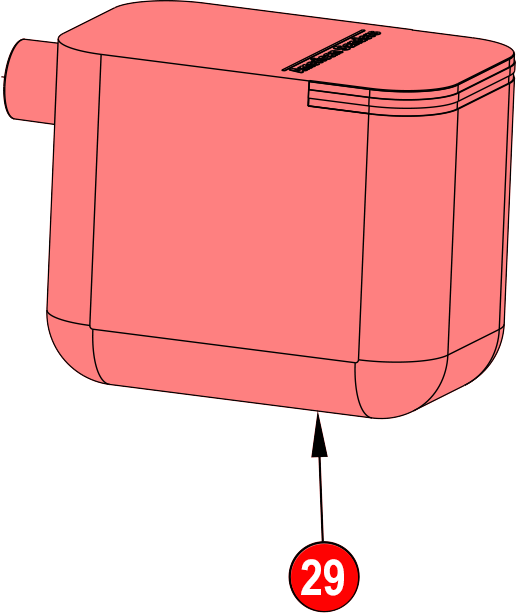

| 7 | 34233A | 1 | Gasket-Discharge Pipe | 29 | 53544B | 1 | Bag, Edger | |
| 8 | 51127A | 1 | Bearing-Ballshield & Seal | 30 | 61568A | 1 | Gear, Drive, B2, (Rh) | |

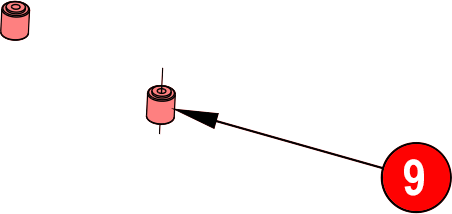

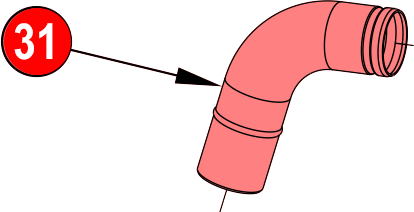

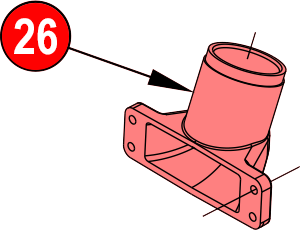

| 9 | 51128A | 2 | Bearing-Dbl Row Unground | 31 | 61712A | 1 | Tube, Exhaust, B-2 | |
| 10 | 52853A | 1 | Skirt B-2 Edger | 32 | 62411A | 1 | Washer | |
| 11 | 57702A | 1 | Ring Retaining Internal | 33 | 66917A | 1 | Retainer-Roller Guard | |
| 12 | 58114A | 1 | Seal-Shaft | 34 | 67426A | 1 | Shaft-Gear | |
| 13 | 66130A | 1 | Plug-Gear Hsg. Vent | 35 | 80276A | 1 | Nut-Slip Joint 2 X 2 | |

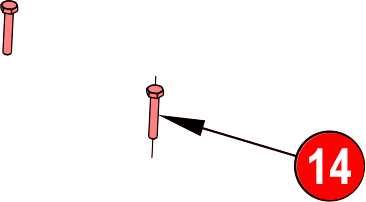

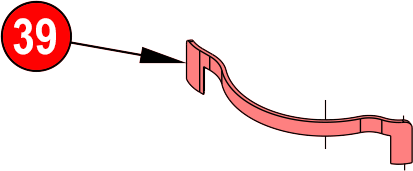

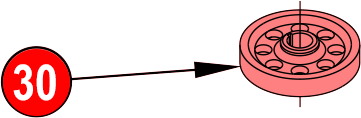

| 14 | 85701A | 2 | Ser 1/4 -20x1&1/2 Hx St Cap | 36 | 84200A | 3 | Screw, 8-32 F.H.C.S | |
| 15 | 86203A | 2 | Ser 5/16-18x1&1/4 St St | 37 | 85715A | 1 | Screw, 5/16-18x1 Hx Hd | |
| 16 | 87000A | 2 | Washer .39x.75x.09 Flat St | 38 | 85814A | 2 | Screw 5/16-18 X 1 1/4 Hh | |
| 17 | 467308 | 1 | Ring, Retainer 189 | 39 | 38103A | 1 | Seal-Dust | |
| 18 | 915028 | 1 | Key, 1/8 X 5/8 Woodruff | [ ] | 980657 | 2 | 1/4" Lock Washer (not shown) | |

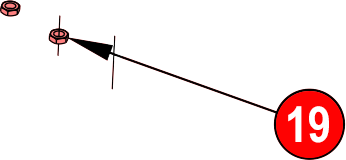

| 19 | 920160 | 2 | Nut, 5/16 Jam Hex | [] | AS035800 | 1 | B-2 CE Sander Case | |

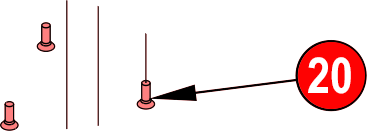

| 20 | 962098 | 3 | Screw, 1/4-20 X 3/4 F.H. | |||||

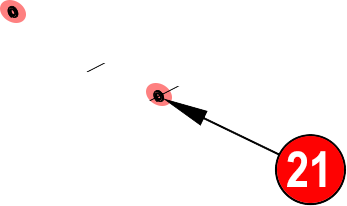

| 21 | 980650 | 2 | Washer, #10 Lock | |||||

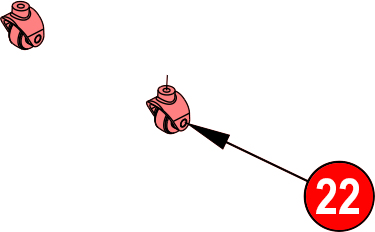

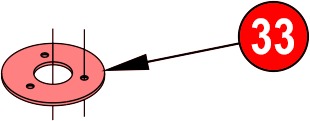

| 22 | 10212A | 2 | Wheel & Yoke Asm | |||||
| * | 19901A | 2 | Caster Yoke Asm B-2+ (includes items 14 & 22) | |||||
| • | 12203A | 2 | Caster Assy (includes items 9, 14 &22) |
