OBS-18

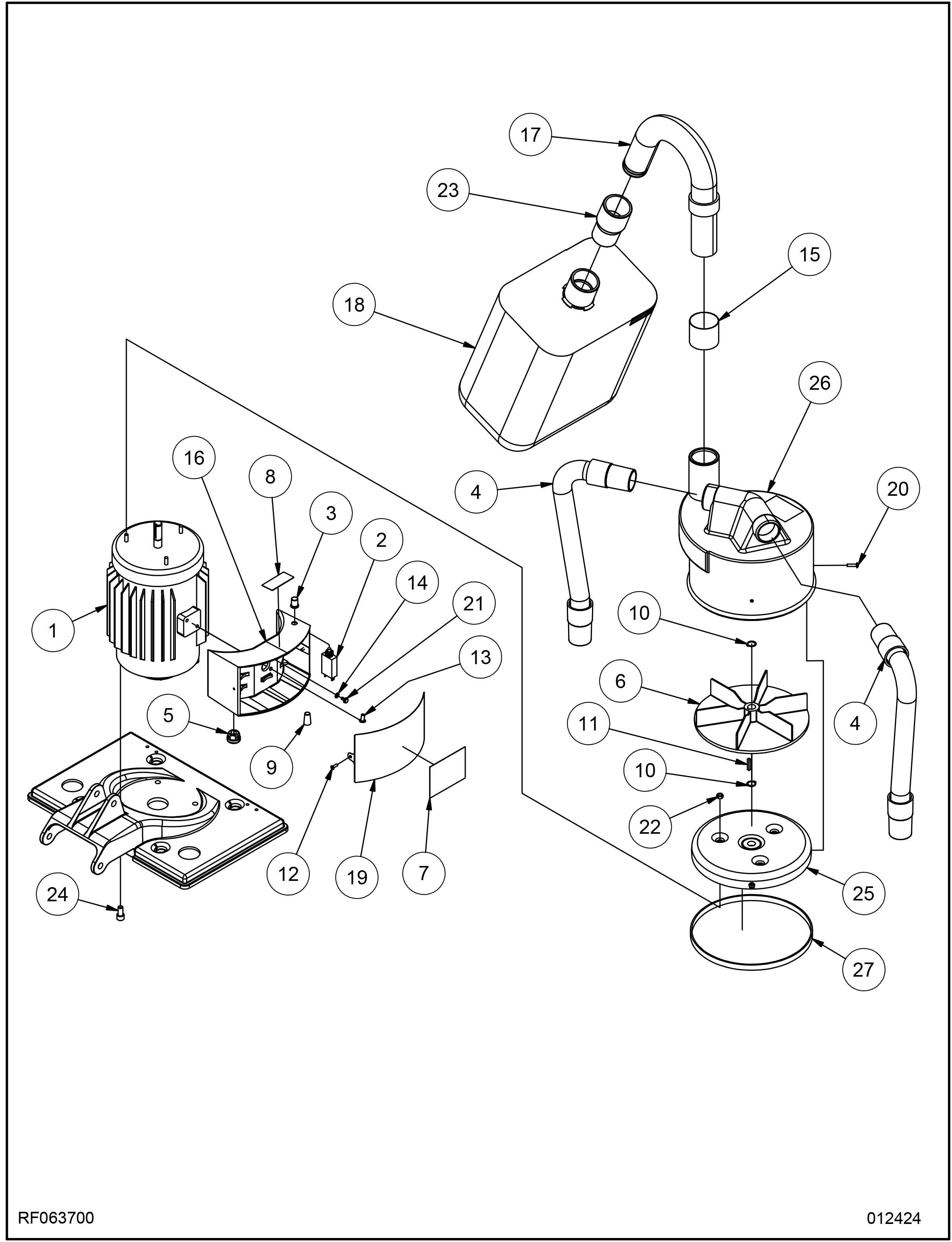

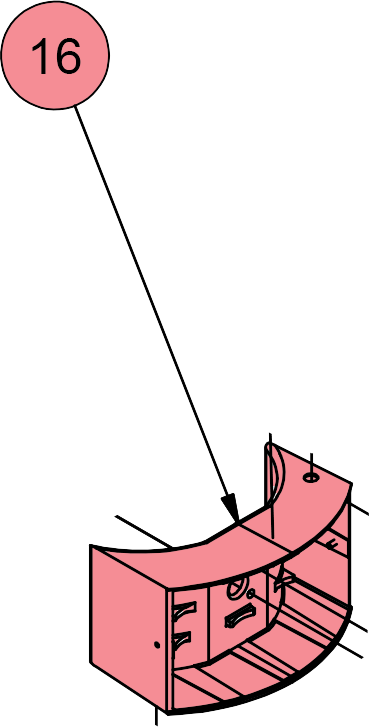

Motor Assembly - Dust Control
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |

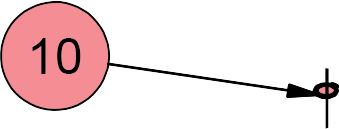

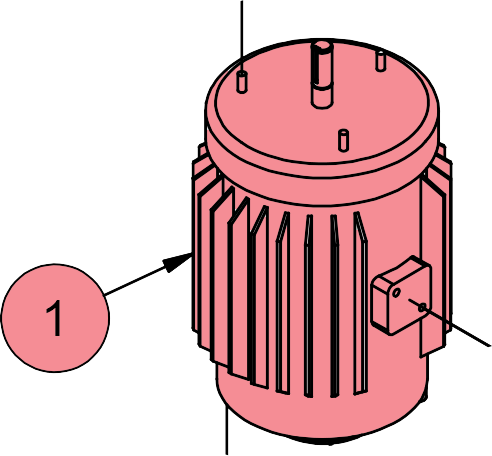

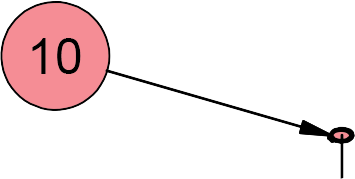

| 1A | 56382885 | 1 | MOTOR, 1 HP, 115V, 60HZ | 10 | 77234A | 1 | PLATE, WARNING | |

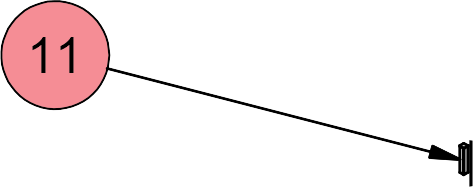

| A1 | AS018100 | 1 | STARTER, SWITCH** | 11 | 170667 | 1 | CONNECTOR, TWIST, WIRE | |

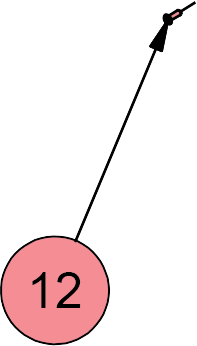

| A2 | 41311A | 1 | CAPACITOR, RUN** | 12 | 797301 | 1 | RING, RETAINING, 5/8” | |

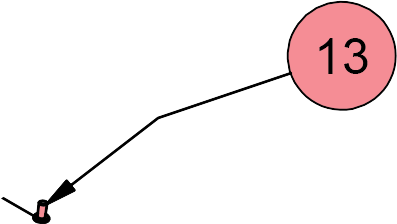

| A3 | 41312A | 1 | CAPACITOR, START** | 13 | 915044 | 1 | KEY, SQUARE, 3/16” | |

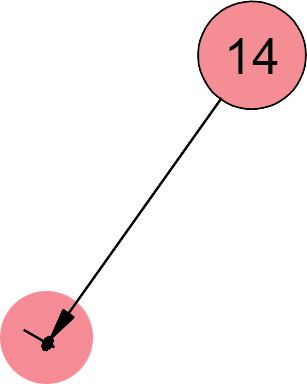

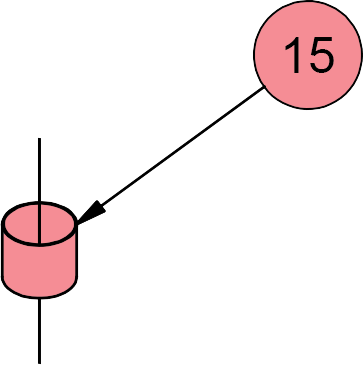

| A4 | 50275A | 1 | COVER, FAN, MOTOR** | 14 | 962727 | 2 | SCREW, #8 X 1/2” | |
| A5 | 40545A | 1 | FAN, MOTOR** | 15 | 962983 | 2 | SCR 1/4-20 X 5/8 PN ST MACH | |
| 1B | 44673A | 1 | MOTOR, 1HP, 230V, 50HZ | 16 | 980603 | 1 | WASHER, #10, LOCK, EXT | |

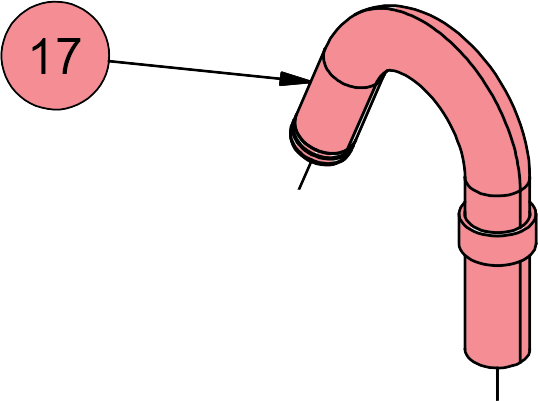

| B1 | 47378A | 1 | SWITCH, STARTER, 230V** | 17 | 56380336 | 1 | SEAL, PIPE, DUST | |

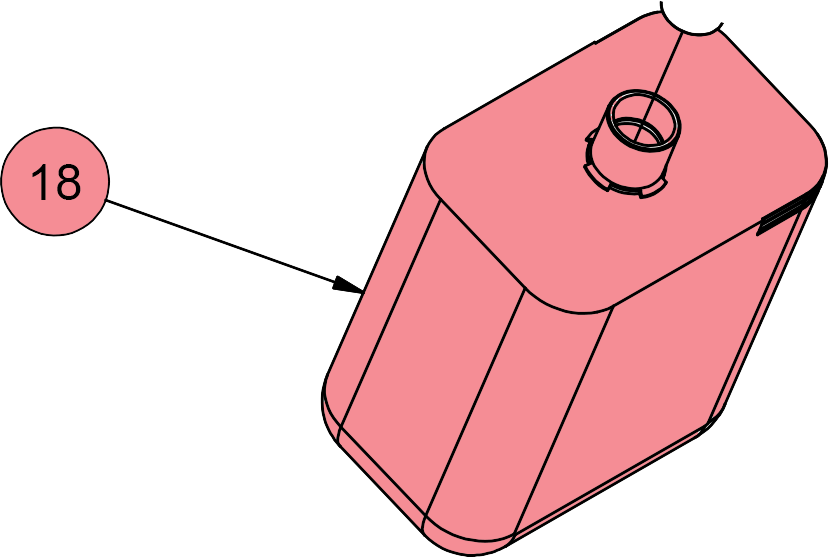

| B2 | 41313A | 1 | CAPACITOR, RUN, 230V** | 18 | 22906A | 1 | ENCLOSURE, MOTOR, START | |

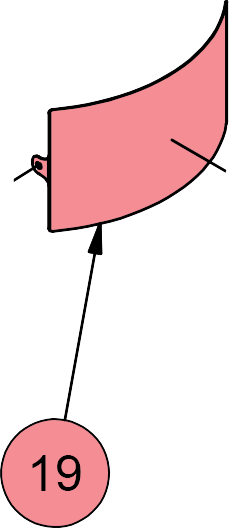

| B3 | 41314A | 1 | CAPACITOR, START, 230V** | 19 | 61833A | 1 | TUBE, EXHAUST | |
| B4 | 50275A | 1 | COVER, FAN, MOTOR** | 20 | 53741A | 1 | BAG, DUST | |

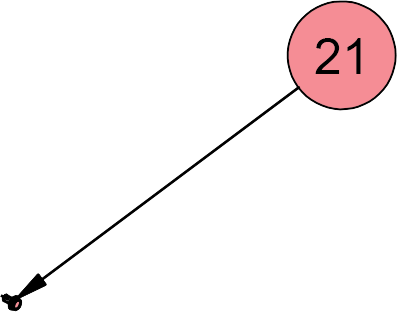

| B5 | 40545A | 1 | FAN, MOTOR** | 21 | 85383A | 4 | SCREW, #10 X 3/4” | |

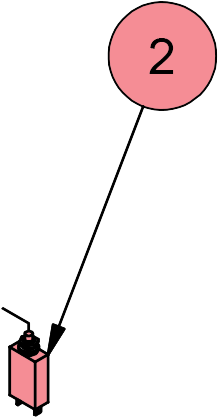

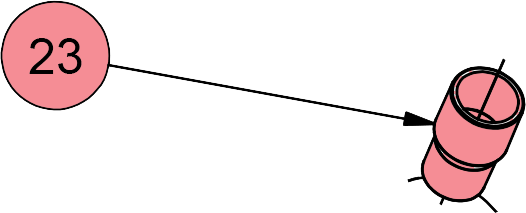

| 2A | 56454538 | 1 | CIRCUIT BREAKER, 15A | 22 | 920208 | 3 | NUT, HEX, 1/4” | |
| 2B | 41419A | 1 | CIRCUIT BREAKER, 15A (OLD) | 23 | 62667A | 1 | COVER, ENCLOSURE | |
| 2C | 41418C | 1 | CIRCUIT BREAKER, 10A, 230V | 24 | 30563A | 1 | ADAPTER, HOSE, 2” | |

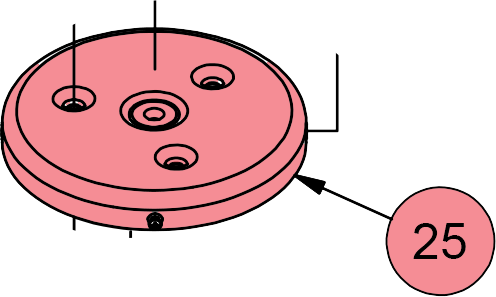

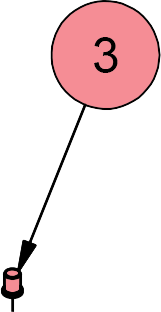

| 3 | 56459367 | 1 | BOOT, RESET BUTTON | 25 | 85833A | 1 | SCREW, MACHINE, #10 | |

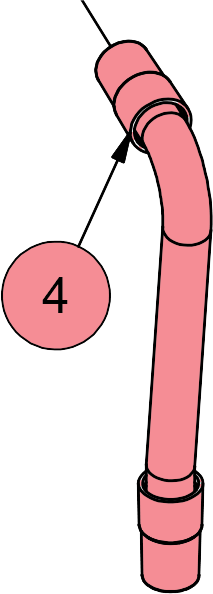

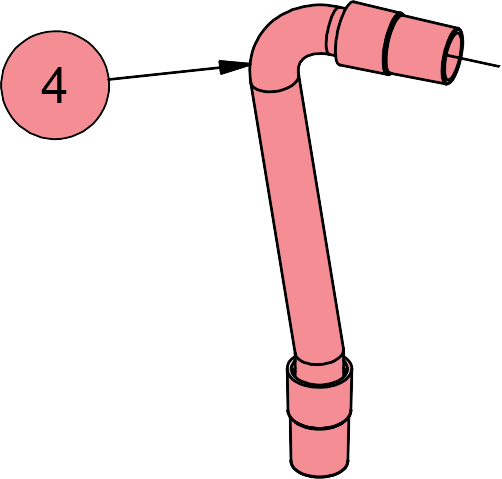

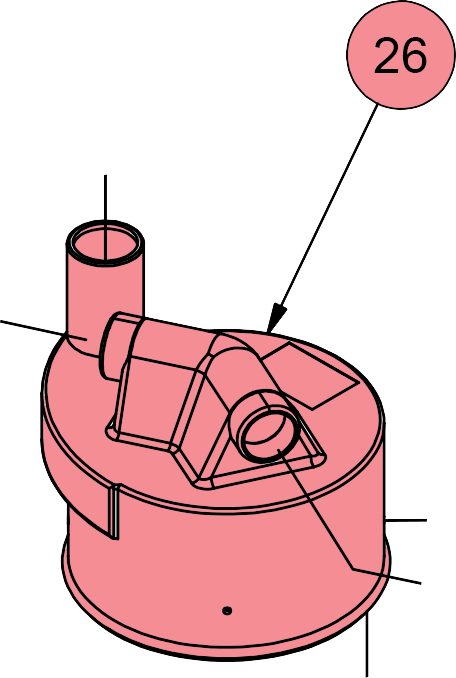

| 4 | 30407B | 1 | HOSE | 26 | 86112A | 4 | SCREW, 3/8” X 3/4”, SH | |

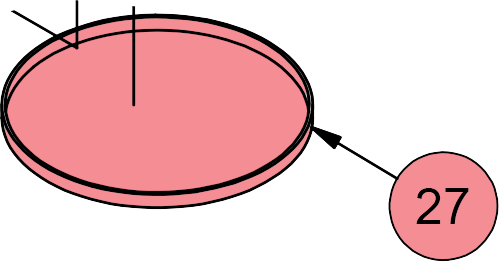

| 5 | 10478A | 1 | COVER, HOUSING, ASM. | 27 | AS017502 | 1 | BRACKET, MOUNTING, START, SWITCH** | |

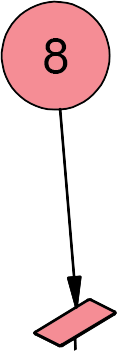

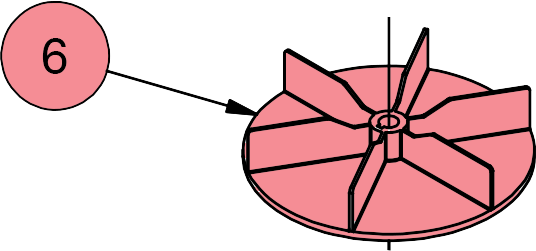

| 6 | 35242A | 1 | HOUSING, BLOWER | 28 | 85313C | 2 | SCREW 6-32 X 3/8 PAN HD** | |

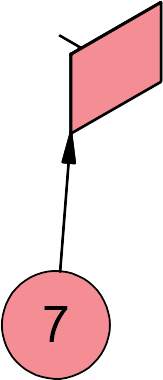

| 7 | 51523A | 1 | BUSHING, RELIEF, STRAIN | 29 | 9200056 | 2 | NUT-6X32 ELASTIC STOP** | |
| 8 | 54765A | 2 | IMPELLER | (**) = Not Shown | ||||
| 9 | 77195A | 1 | LABEL, UI FIRE & SAND | |||||
