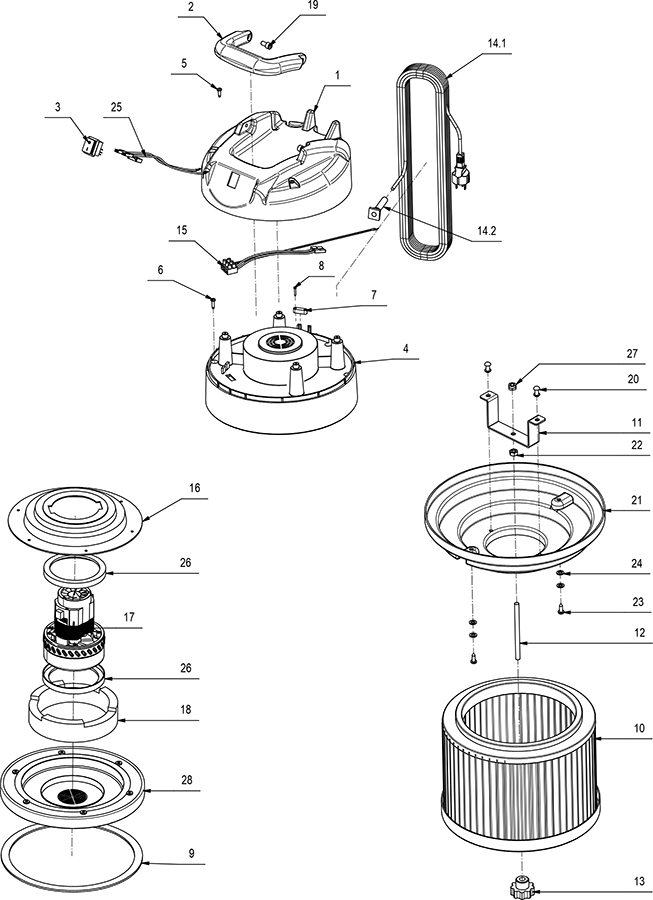

| Item | Part Number | Qty | Description | | Item | Part Number | Qty | Description |
| 1 | TMB444299 | 1 | COVER | | 15 | TMB445369 | 1 | WIRING HARNESS |
| 2 | TMB444235 | 1 | HANDLE | | 16 | TMB416891 | 1 | BLACK RING x CL/TOP |
| 3 | TMB417622 | 1 | BLACK BIPOLAR SWITCH | | 17 | TMB417792 | 1 | MOTOR BYPASS 1200W 115V |
| 4 | TMB445059 | 1 | GREY SLEEVE x TOP | | 18 | TMB417454 | 1 | DEADENING |
| 5 | TMB418277 | 4 | SELF-TAPPING SCREW | | 19 | TMB415765 | 2 | SCREW |
| 6 | TMB418279 | 6 | SELF-TAPPING SCREW 4,8x19 SP | | 20 | TMB409360 | 2 | RIVET |
| 7 | TMB409765 | 1 | CABLE GRIP | | 21 | TMB227808 | 1 | SUPPORT FOR FILTER DRILLED |
| 8 | TMB418269 | 2 | SELF-TAPPING SCREW 2,9x19 TC T.C. ZNT | | 22 | TMB409043 | 1 | NUT |
| 9 | TMB412463 | 1 | GASKET MOTOR BASE CL/TOP | | 23 | TMB416786 | 2 | SCREW |
| 10 | TMB445841 | 1 | FILTER | | 24 | TMB409150 | 4 | WASHER |
| 11 | TMB418117 | 1 | FILTER | | 25 | TMB416995 | 1 | MOTOR CABLE x TOP/WET |
| 12 | TMB227838 | 1 | WASHER, INOX M6 | | 26 | TMB443465 | 2 | GASKET |
| 13 | TMB418340 | 1 | HANDWHEEL | | 27 | TMB415901 | 1 | NUT |
| 14.1 | TMB444305 | 1 | CABLE SJTW 3X14AWG 105D GREY PLUG USA | | 28 | TMB445844 | 1 | CRANKCASE |
| 14.2 | TMB417828 | 1 | FAIRLEAD | | | | | |
