To purchase parts for the Clarke FA-8 (Main Assembly 2):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

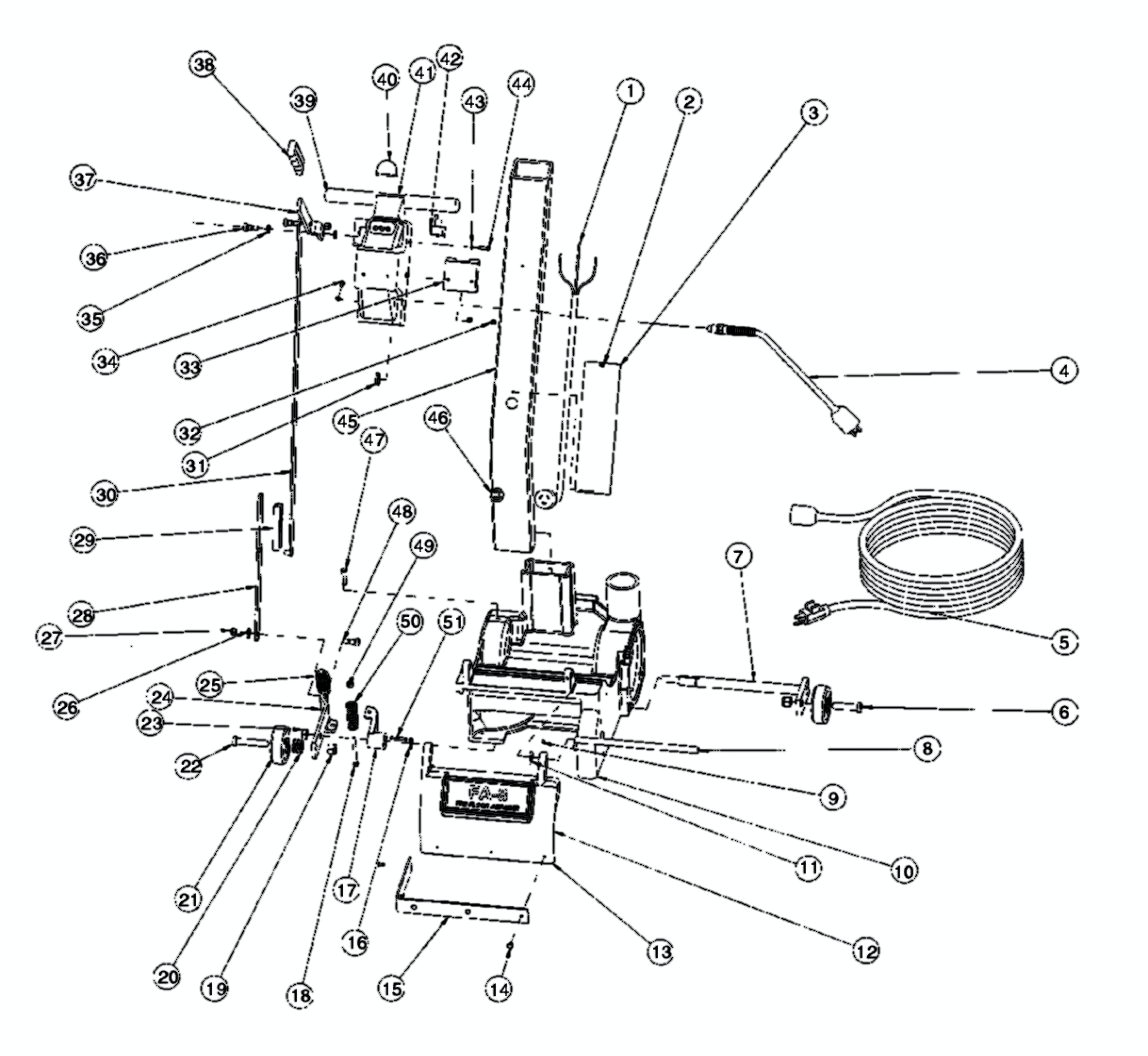

clarke-american-fa-8-assembly-2

ItemPart NumberQTYDescriptionItemPart NumberQTYDescriptionItemPart NumberQTYDescription
153741A1BAG DUST OBS-18199629881SCREW 1/4-20X1 1/4 PN ST PH3761807A1SHIELD GUARD FA-8
261897A1PIPE DUST EZ-8209628921SCR 1/4 -20X 3/4 PN ST3854451A1SPRING 1.15 X 1.281 25.85 /IN
39806484WASH-17/32 ID X 1&1/16 OD PLN212991841BELT GUARD3968015A2STUDMOTOR MOUNT EZ-8
468285A1SUPPORT TUBE2254449A1BELT POLY V PJ682 8 RIB4081208A2NUT HEX SERRATED FLANGE 5/1
58773071RING SNAP TA 5133-502367468A1SHAFT CASTER EZ-84140967A1MOTOR 5/8 HP 115V 4 POLE
665005A1IMPELLER FAN EZ-82429405A1YOKE CASTER EZ-8421706672CONNECTORWIRE NUT 74B-YELLOW
79806452WASHER 3/8 FLAT SAE2551194B2BEARING FLANGED1.375X.500X.313431706371CONDUITCONNECTOR 3/8 2 SCREW
89627983SCR 10-24X 1/2 PN SS269201961NUT-1/2-13 HEX JAM4441949A1CORDMOTOR EZ-8
922122A1COVERFANPNTD EZ-82787700A2SCREW1/4-20 X 1/2 BUTTON HEAD4554441A1PULLEY 2.219 X 1.594 22MM J
109155612HP404 KEY HARDENED2887039A2WASHER FENDER 1/4 S.S.4655711A1LATCH DRAW
1167457A1SHAFTFAN EZ-8299150821KEY 3/16 X 3/16 X 3/4 LG479806572WASHER LOCK 1/4 STD
129025672BEARING BALLDOUBLE SEALED3054442A1PULLEY 4.25 X 1.00 22MM J489629832SCR 1/4 -20X 5/8 PN ST MACH
131673121RING RETAIN 401373125903A1MAINFRAMEPNTD EZ-84981217A2NUT 1/4-20 X .218H NYLOCK
1454439A1PULLEY 1.625 X 1.281 22MM J3251178B2BEARING FLANGE 1I.D2 HOLE5061927A1SHAFT ABRASIVE DRIVER FA8
159201963NUT-1/2-13 HEX JAM3381211A6NUT HEX SERRATED FLANGE 5/141304A1CAPACITOR OIL FILLED 40MFD
1659960A1WHEEL CASTER EZ-83480027A6BOLT ROUND HD SQ NECK 5/16 X40545A1FAN MOTOR EZ-8
1780028A1BOLT SHOULDER 5/16 X 13580373A2RIVET 5/32 X 5/16 GRIP
1854450A1BELT POLY V PJ512 4 RIB3667612A1SHOEDUST EZ-8
