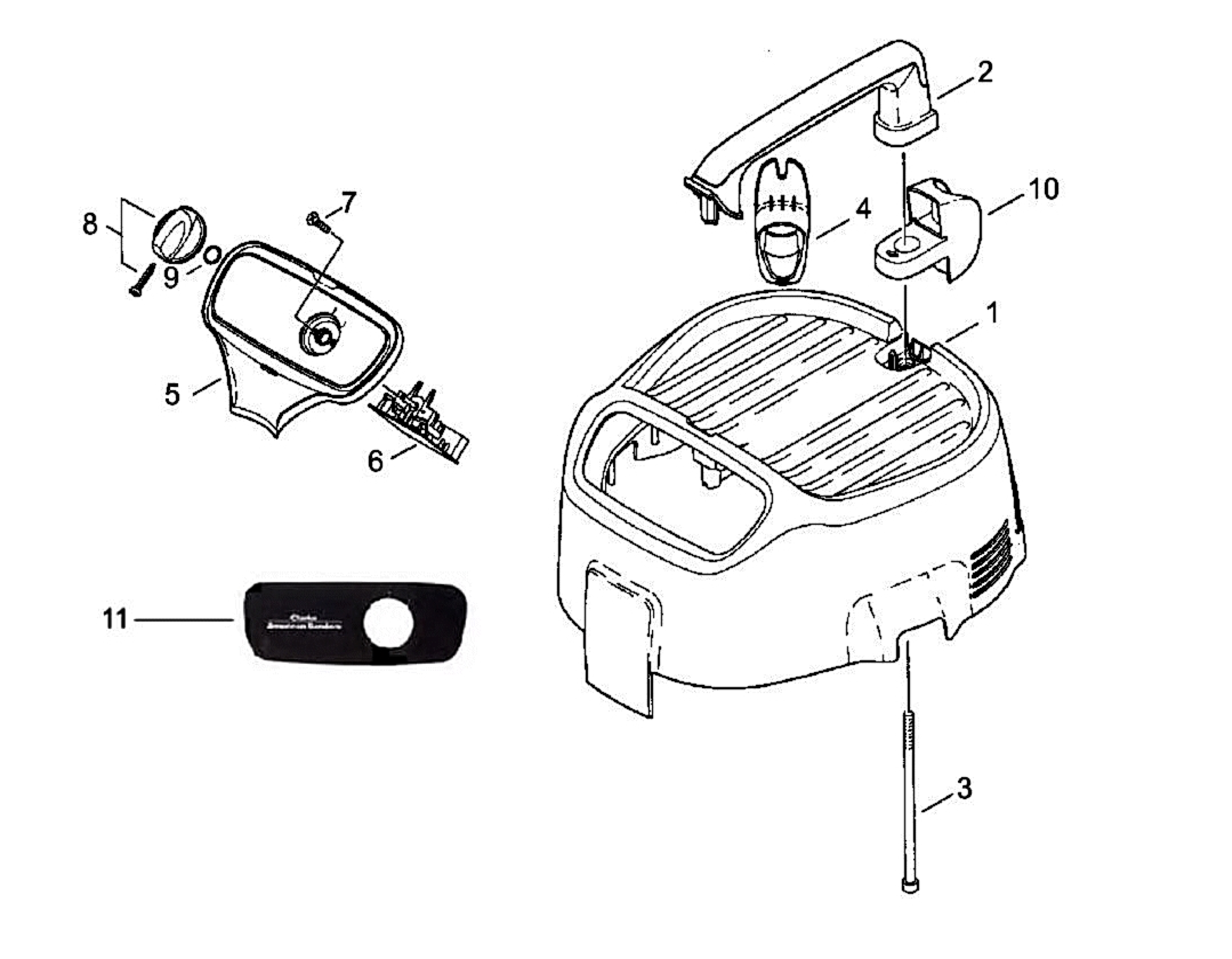

To purchase parts for the CAV 12 Vacuum (Top Assembly):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | QTY | Description |
| 1 | 302000703 | 1 | HOOD W.SOUNDPROOFING |
| 2 | 302000638 | 1 | HANDLE |
| 3 | 909100084 | 1 | SCREW M6 X140 DIN 912 |
| 4 | 302000380 | 1 | CABLE HOOK |
| 5 | 302000378 | 1 | SWITCH PANEL CAV 12 |
| 6 | 302000612 | 1 | ELECTRONIC SOFTSTART 100- |
| 7 | 18274 | 1 | SCREW |
| 8 | 909100231 | 1 | KNOB CONTROL SWITCH 302000612 |
| 9 | 9868 | 1 | O-RING 10X25 |
| 10 | 302000382 | 1 | TUBE FASTENER |
| 11 | 302002531 | 1 | ---------- |
| 302000435 | 1 | POWER CABLE US |
