CAV 16 Motor & Head Assembly

Call Us: 800-367-3550
International +1 (336) 601-2599
Find a Dealer

To purchase parts for the CAV 16 Vacuum (Motor & Head Assembly):

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

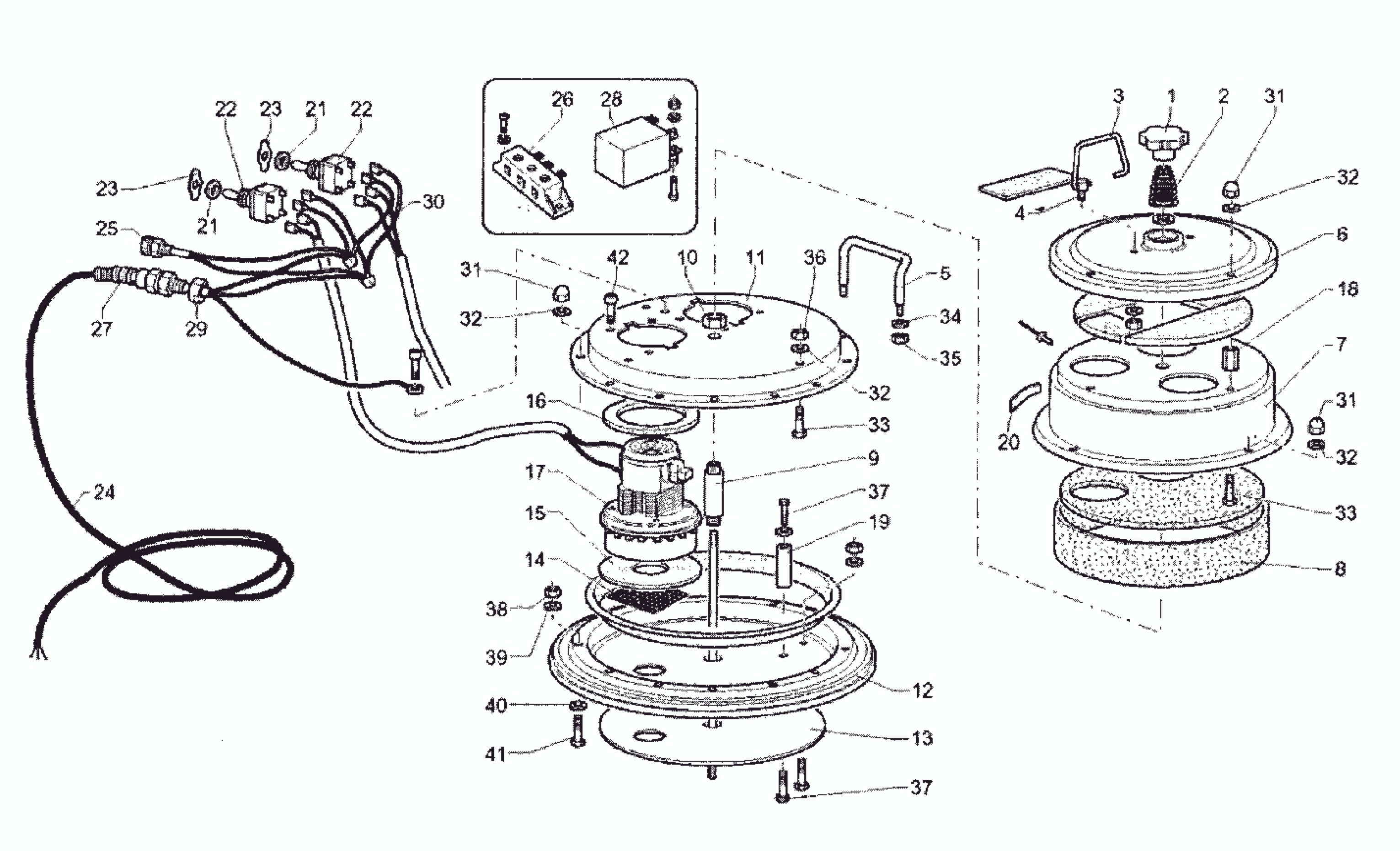

cav-16-motor-head-assembly

Item	Part Number	QTY	Description		Item	Part Number	QTY	Description		Item	Part Number	QTY	Description
1	840027	1	KNOB PLUNGER CAV 16		15	817002	2	SEAL MOTOR BOTTOM CAV 16		29	170686	1	NUTLK FOR 1/2 CONDUIT
2	814079	1	SPRING PLUNGER CAV 16		16	817003	2	SEAL MOTOR TOP CAV 16		30	839576	1	WIRING ASM CAV 16
3	818206	1	KEEPER PLUNGER CAV 16		17	854006	2	VACUUM MOTOR CAV 26		31		20	CAP NUT, M5-.8
4	814061	2	KEEPER PIVOT PIN CAV 16		18	814030	4	SPACER CAV 16		32	980603	20	WASHER LK 10 EXT TOOTHPLTD
5	818083	2	HANDLE CAV 16		19	814032	3	SPACER CAV 16		33		4	SCREW, M5-.8X20 HHC
6	54775A	1	COVER VENT CAV 16		20		1	LABEL		34	980646	4	WASHER 1/4 SAE FLAT PLTD
7	8160669005	1	MOTOR COVER CAV 16		21	980407	2	WASHERLOCKINTERNAL TOOTH		35	924003	4	NUT-M6 X 1.0 HEX
8	817229	1	SOUNDPROOFING KIT CAV 16/26		22	839000	2	SWITCH 15A/250V TOGGLE		36	80169A	4	NUT M5-0.8 HEX
9	814051	1	BUSHING CAV 16		23		2	PLATE		37	964009	8	SCR M 6.0X1.0 X 10 PN*ST
10	814052	2	NUT CAGE FIXING		24	8391160	1	CABLE ELECTRICAL CAV 26		38	80169A	4	NUT M5-0.8 HEX
11	816008	1	MOTOR LOCATOR CAV 16		25	839051	1	INDICATOR LAMP 120V-NEON ORG		39	170879	12	Washer 3/16 Plated
12	816003	1	MOTOR PLATFORM CAV 16		26	839528	1	TERMINAL STRIP CAV 16		40	980982	20	WASHER 10 SAE FLAT PLTD
13	815032	1	FLANGE CAV 16		27	58013A	1	STRAIN RELIEF EXT-771		41	80249A	12	SCREWM5-.8X12MM HEX HEAD S.S.
14	813074	2	SCREEN CAV 16		28	839533	1	SUPRESSOR ELECTRICAL NOISE		42		4	SCREW
											51401A	Ref	BRUSH MECH. PK.OF 2 685202
