FM-Rotary

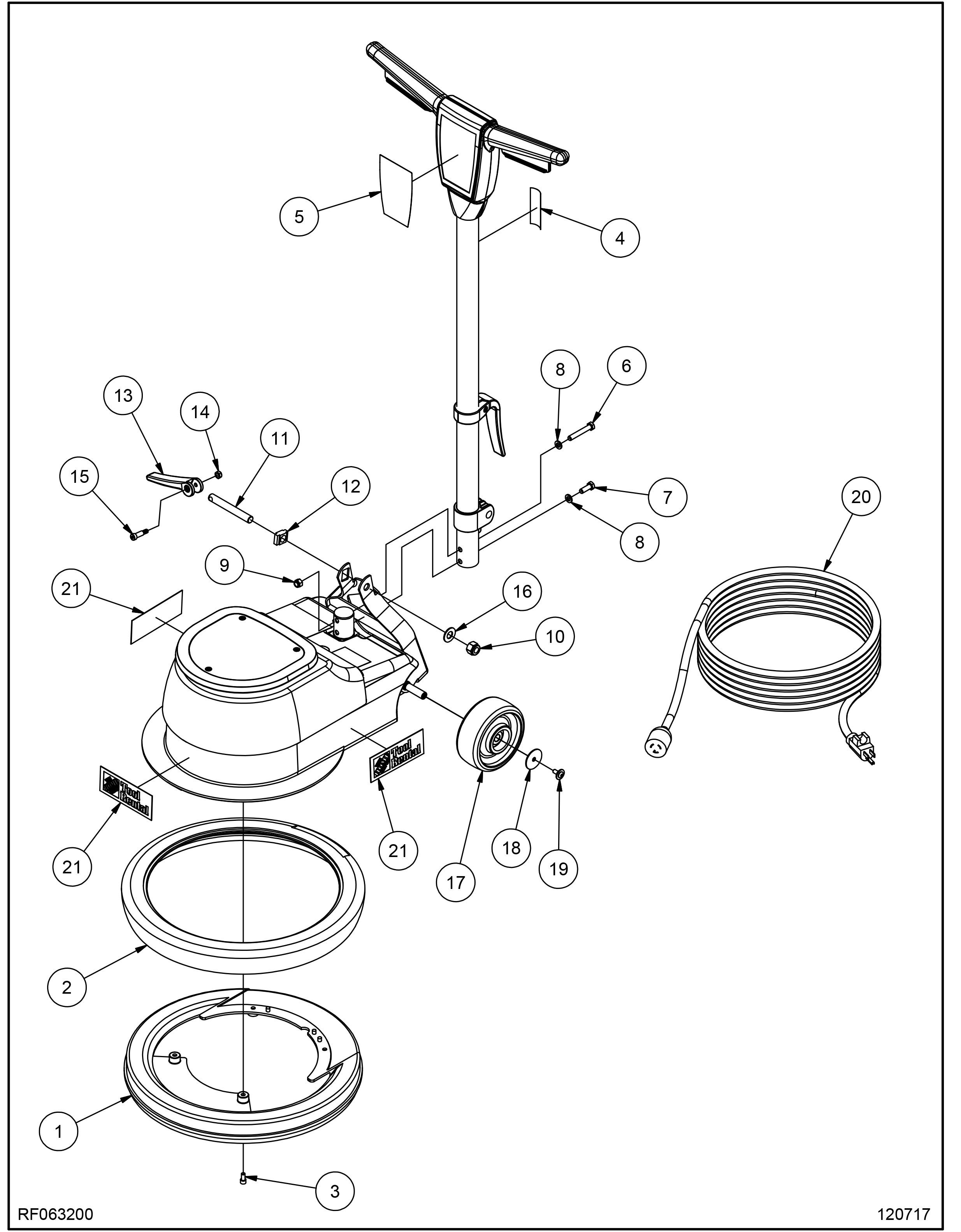

HDTR Main Assembly RF063200

Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.

part 21-2

part 21-1

part 20

part 20

part 19

part 18

part 17

part 16

part 15

part 14

part 13

part 12

part 11

part 10

part 9

part 8

part 8-1

part 7

part 6

part 5

part 4

part 3

part 2

part 1

Item	Part Number	Qty	Description		Item	Part Number	Qty	Description

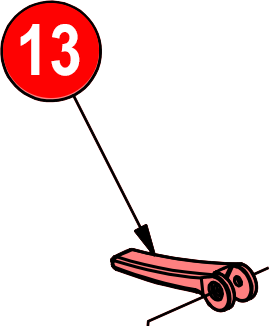

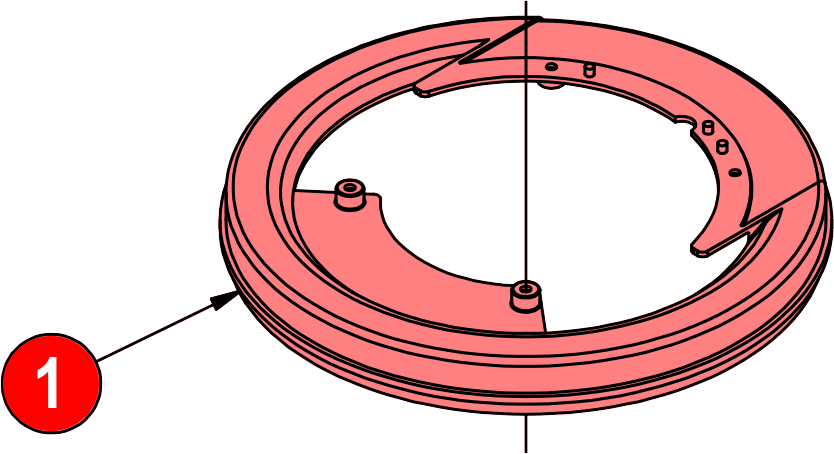

1	507851	1	SHIELD BRUSH FM1700/1700HS		13	61912A	1	HANDLE CAM LOCK

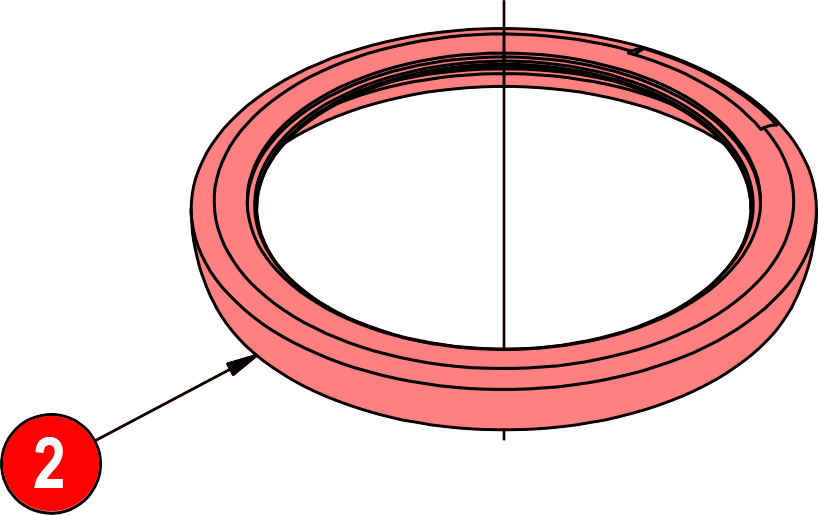

2	31234B	1	BUMPER BRUSH FM POLISHERS		14	920349	1	NUTSTOPELASTIC 1/4-20 HVYTNH
3	962337	4	SCREW 1/4-20 X 1/2 SC ST CAP		15	960969	1	BOLT SHOULDER 5/16 X 3/4

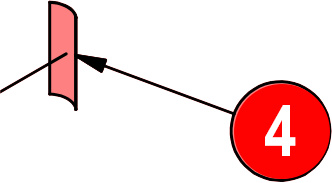

4	56380639	1	DECAL-PROP 65		16	980648	1	WASH-17/32 ID X 1&1/16 OD PLN

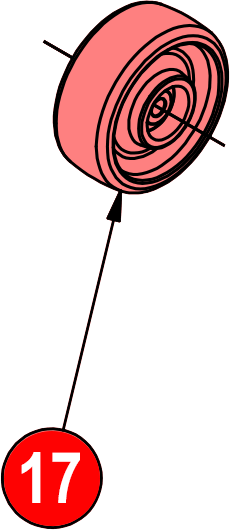

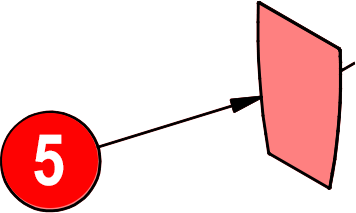

5	MP500700	1	DECAL, HANDLE, FM		17	56384052	2	WHEEL-5.00 X 2.00

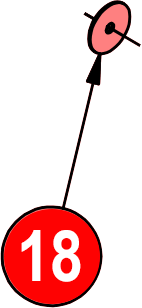

6	85817A	1	SCREW, HEX, 5/16-18 X 7/8, GD 5		18	87058A	2	WASHER RETAINER

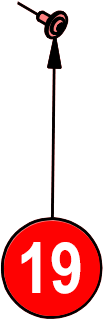

7	85812A	1	SCREW 5/16-18 X 7/8 HEX HD GR5		19	56109766	2	SCREW BUTTON HEAD 1/4-20 X .63

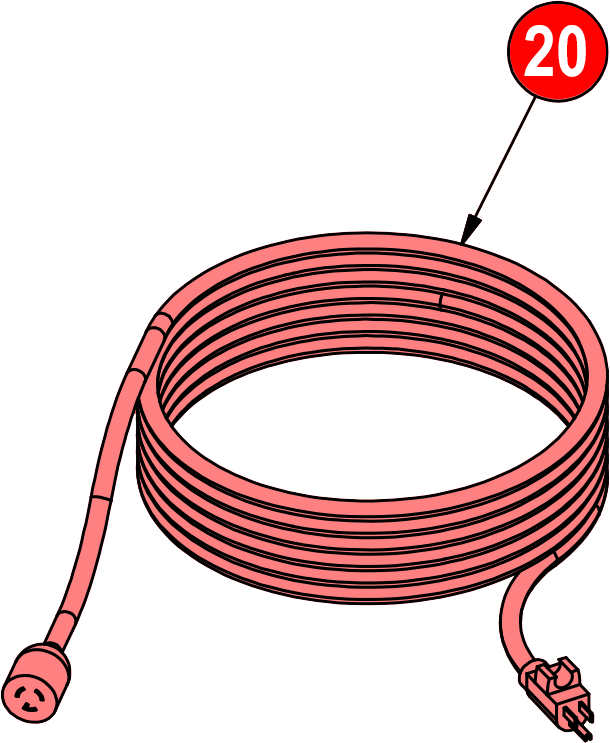

8	980652	2	WASHER, LOCK, 5/16		20	40722A	1	CORDSET, 12-3 X 40FT 5-15P

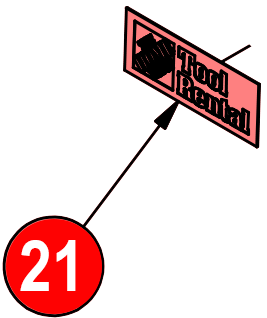

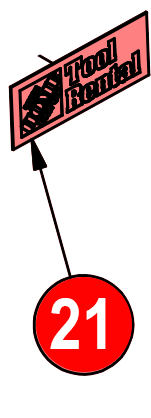

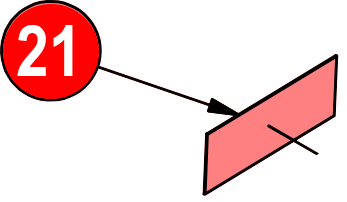

9	920110	1	NUT, 5/16-18 HEX LOCK		21	70825A	3	LABEL HDTR 1.42 X 5 FOR BEXT
10	920365	1	NUT 1/2-13 NYLOCK		22	AS023300	1	DECAL, SERVICE PARTS, PE, RED
11	501346	1	BOLT-LOCKING CAM FM		23	77195A	1	DECAL, UL WARNING
12	743850	1	GUIDE HANDLE LOCK CM-20
