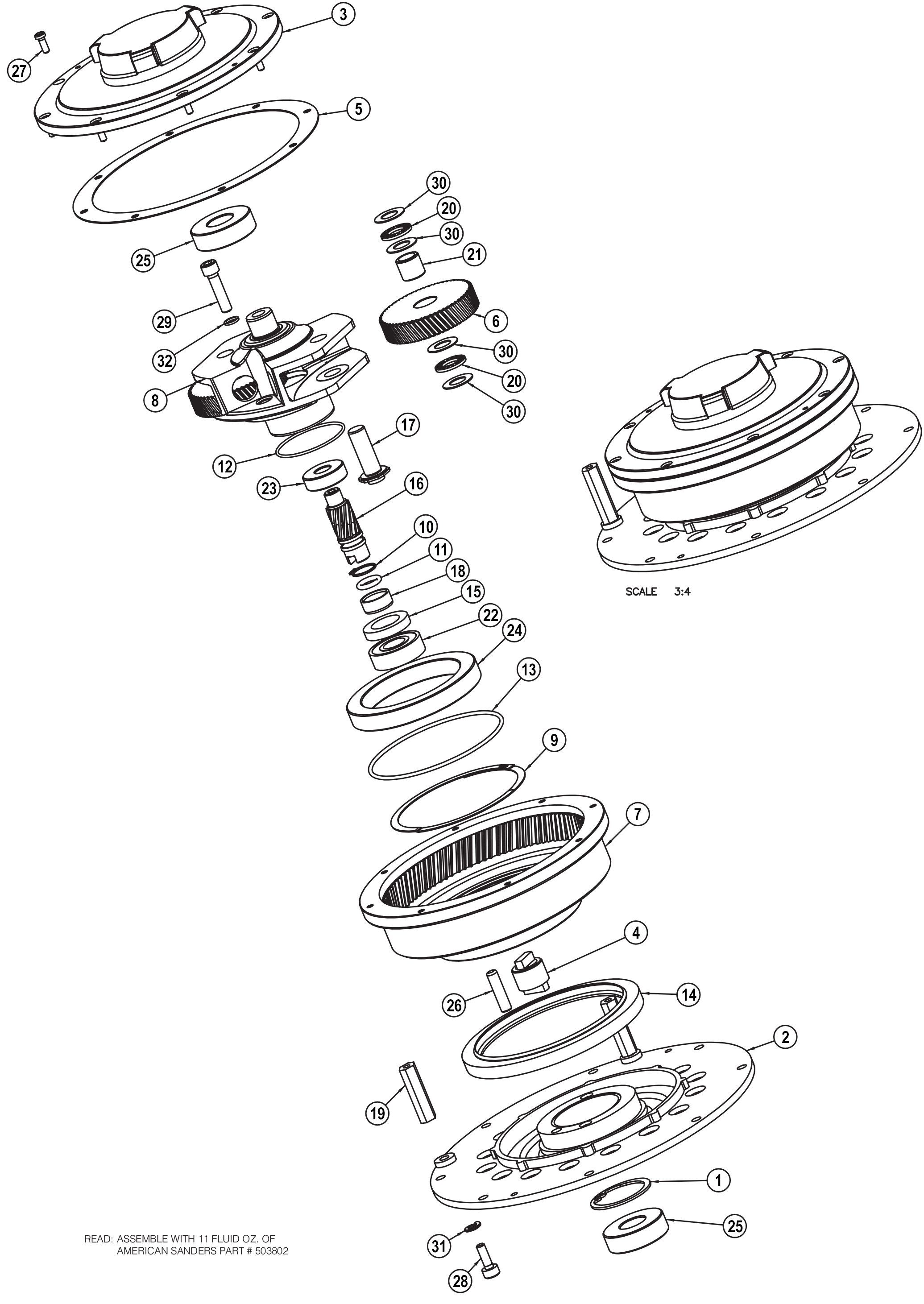

FM Rotary HDTR

Gearbox Assembly

Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.

part 32

part 31

part 30-3

part 30-2

part 30-1

part 30

part 29

part 28

part 27

part 26

part 25-1

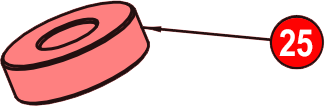

part 25

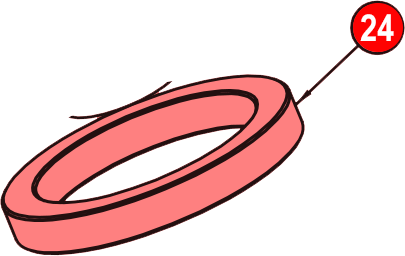

part 24

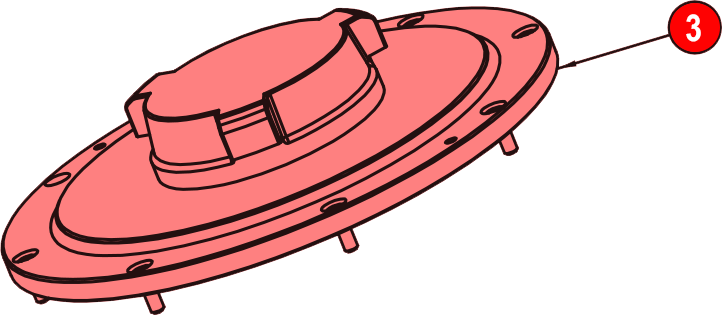

part 23

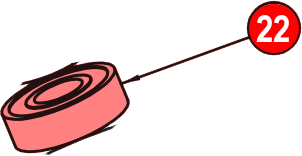

part 22

part 21

part 20-1

part 20

part 19

part 18

part 17

part 16

part 15

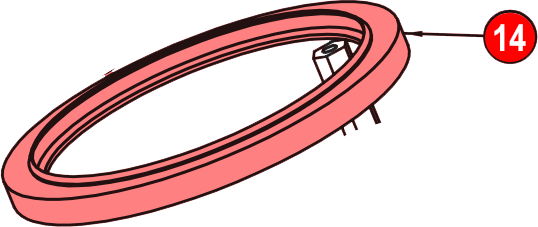

part 14

part 13

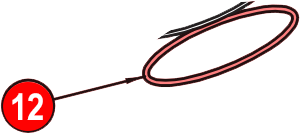

part 12

part 11

part 10

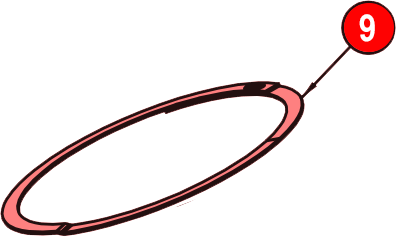

part 9

part 8

part 7

part 6

part 5

part 4

part 3

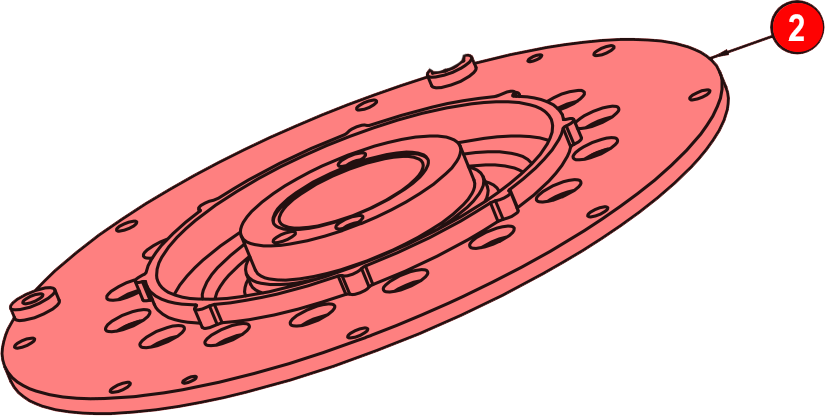

part 2

part 1

Item	Part Number	Qty	Description		Item	Part Number	Qty	Description
1	467328	1	RING,RETAINING,INT.,1.850		17	507743	2	PIN, IDLER GEAR
2	500240	1	ADAPTOR, GEAR UNIT		18	508240	1	SPACER, OIL SEAL
3	502303	1	COVER, RING GEAR		19	508242	2	SPACER, BRUSH SHIELD

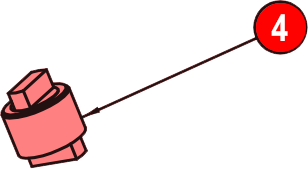

4	502407	1	COUPLING, STEEL DRIVE		20	902040	4	BEARING, THRUST

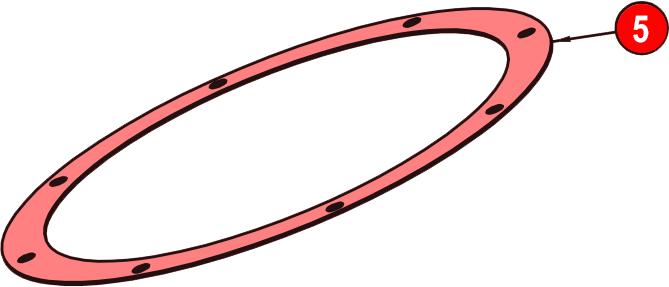

5	503403	1	GASKET, GEAR UNIT		21	902048	2	BEARING, NEEDLE
6	503541	2	GEAR,IDLER 63 TEETH		22	902550	1	BEARING, BALL, 6203

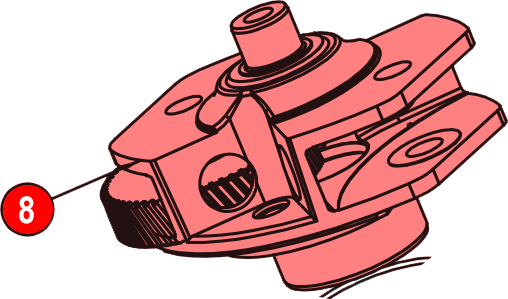

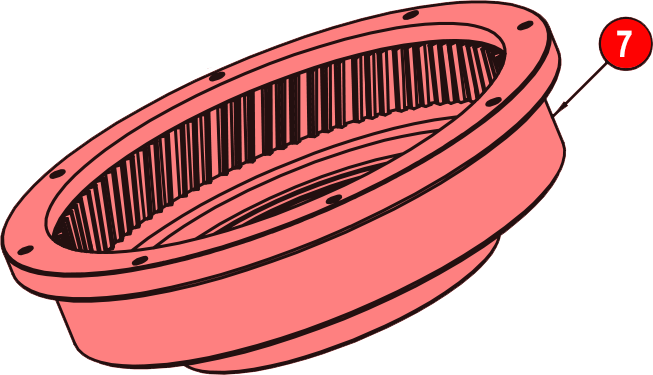

7	504241	1	HOUSING, RING GEAR-140		23	902580	1	BEARING, BALL, 6201
8	504248	1	HOUSING, IDLER GEAR		24	902609	1	BEARING, BALL, KP49B
9	507302	1	RING,RETAINING,INT.,4.000		25	902654	2	BEARING, BALL, 6204
10	507340	1	RING,RETAINING,EXT.,0.688		26	925536	1	PIN, DOWEL, 5/16 X 1 1/4
11	507341	1	O-RING-206N70		27	962241	8	SCREW, 10-24 X 1/2
12	507603	1	0-RING-032N70		28	962289	2	SCREW, 1 4-20 X 3/4

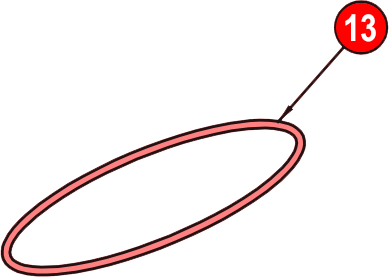

13	507604	1	O-RING-155N70		29	962841	2	SCREW, 5/16-18 X 1 1/4
14	507640	1	SEAL.OIL, 4.500		30	980045	8	WASHER, THRUST
15	507641	1	SEAL, OIL, 0.875		31	980657	2	WASHER, LOCK 1/ 4
16	507740	1	GEAR, PINION 14 TEETH		32	980685	2	WASHER, LOCK, 5/16
