FloorCrafter

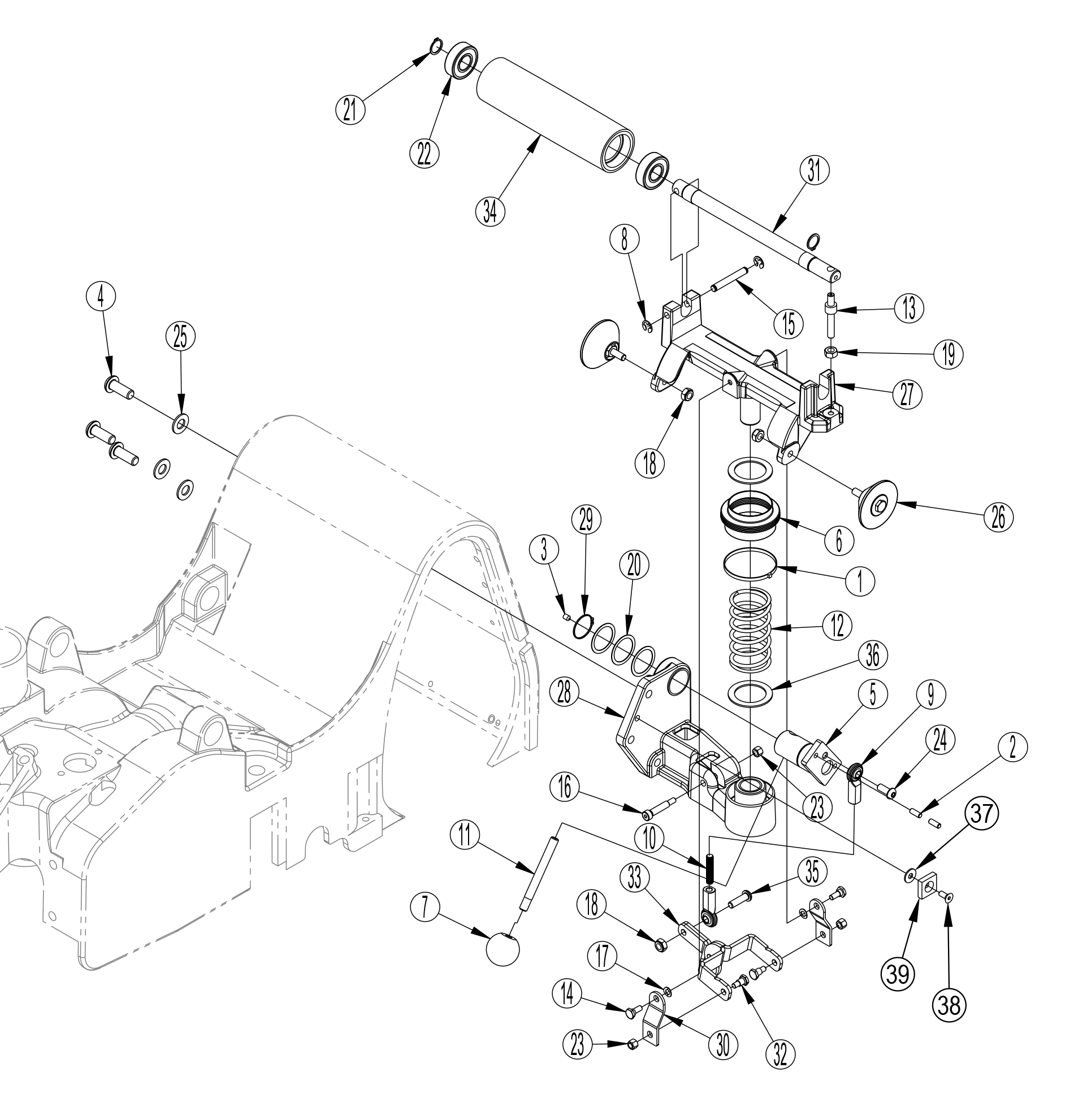

Belt Tensioner Assembly
Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.
part 39
part 38
part 37
part 36
part 35
part 34
part 33
part 32
part 31
part 30
part 29
part 28
part 27
part 26
part 25
part 24
part 22-1
part 23
part 22
part 21
part 20
part 19
part 18
part 18
part 17
part 16
part 15
part 14
part 13
part 12
part 11
part 10
part 9
part 8
part 7
part 6
part 5
part 4
part 3
part 2
part 1
ItemPart NumberQtyDescription ItemPart NumberQtyDescription

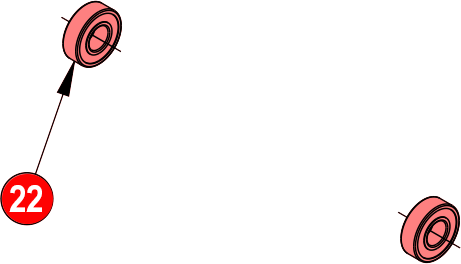

16992021Wire Tie 229025672Bearing Balldouble Sealed

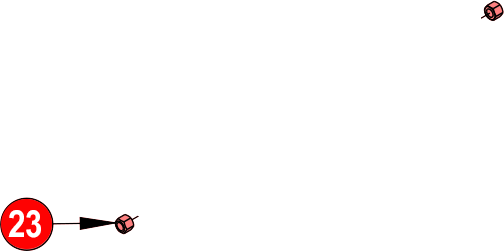

29255462Pin-3/16x1/2 Roll 239202963Nut 10-24 Elastic Stop
39621651Scr 10-24x 3/16 St St Cuppt 249628221Screw 1/4-20 X 5/8 Bt St Soc

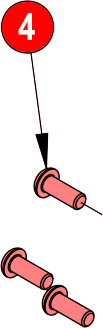

49628703Scr 3/8 -16x1 Bt St Allen 259806453Washer, 3/8” S.A.E. Flat

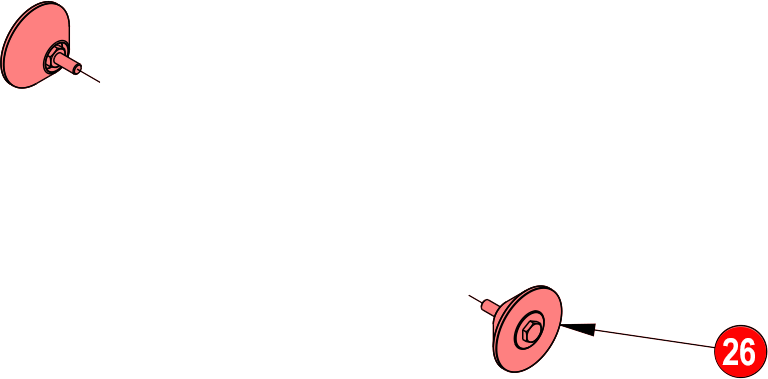

510247A1Cam Release Weldment 2614704A2Guide Roller Asm C-12

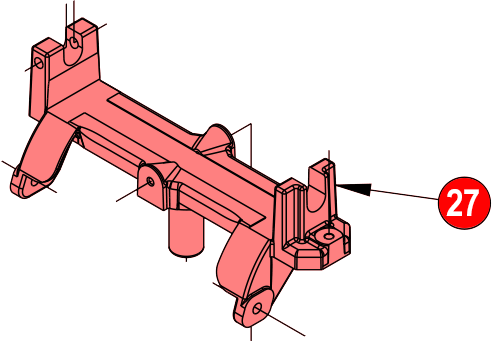

630087A1Boot-Belt Tensioning Asm 2720018A1Carriage Tension Roller

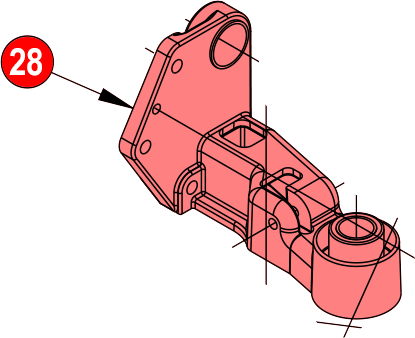

751099A1Knob Release 2820020A1Support Tension Asm
851211A2E-Ring .25 Dia 2951277A1Ring,Retaining,Ext.,1.00

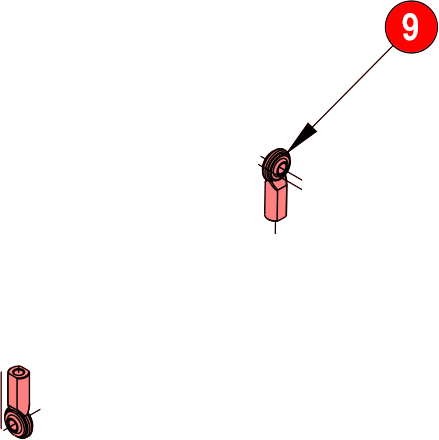

951216A2Rod End Female 3060382A2Link, Draw

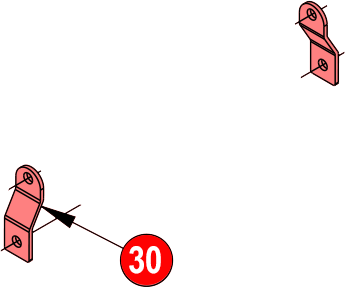

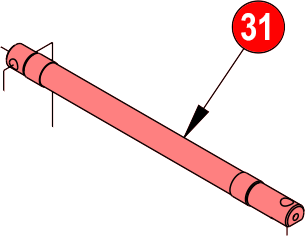

1051221A1Link Connecting 3160383A1Shaft Tension Roller
1160364A1Lever Tension Release 3260391A2Screw, Link Retaining
1260379A1Spring Abrasive Tension 3360393A1Lever Draw

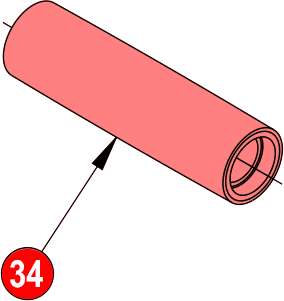

1360381A1Adjuster Tracking 34AS0694001Roller Tension 8” Belt Sander

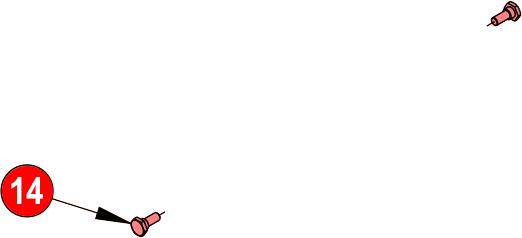

1460395A2Screw Link Retaining 3580139A1Scr, 1/4-20 X 7/8 Button Hd

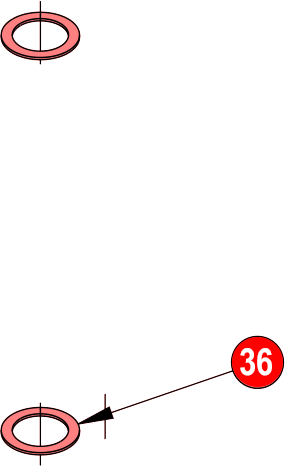

1560396A1Pin Roller Shaft 3680422A2Wear Washer
1680020A1Bolt Shoulder 1/4 X 1 3787007A1Washer-Control Shaft Eccentric

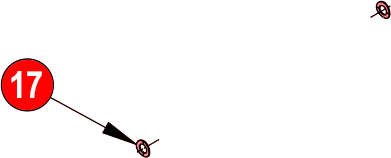

1780140A2Washer 5mm Bowed    (only used prior to March 2009)
1881217A3Nut, 1/4-20 Hex Esna 389625051Scr 1/4 -20x 5/8 Sf St Cap
1981303A1Nut 1/4-28    (only used prior to March 2009)
2087052A3Washer Flt 1.25x1.00x.020nylon 3960906A1Block Wear Ez-8

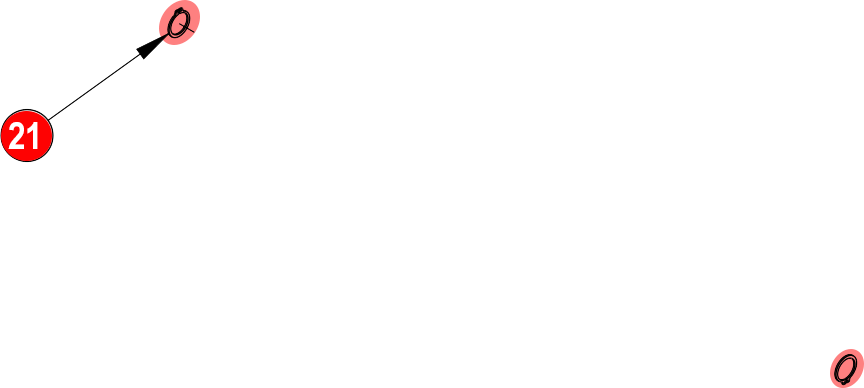

217473802Ring Roller Retaining    (only used prior to March 2009)
