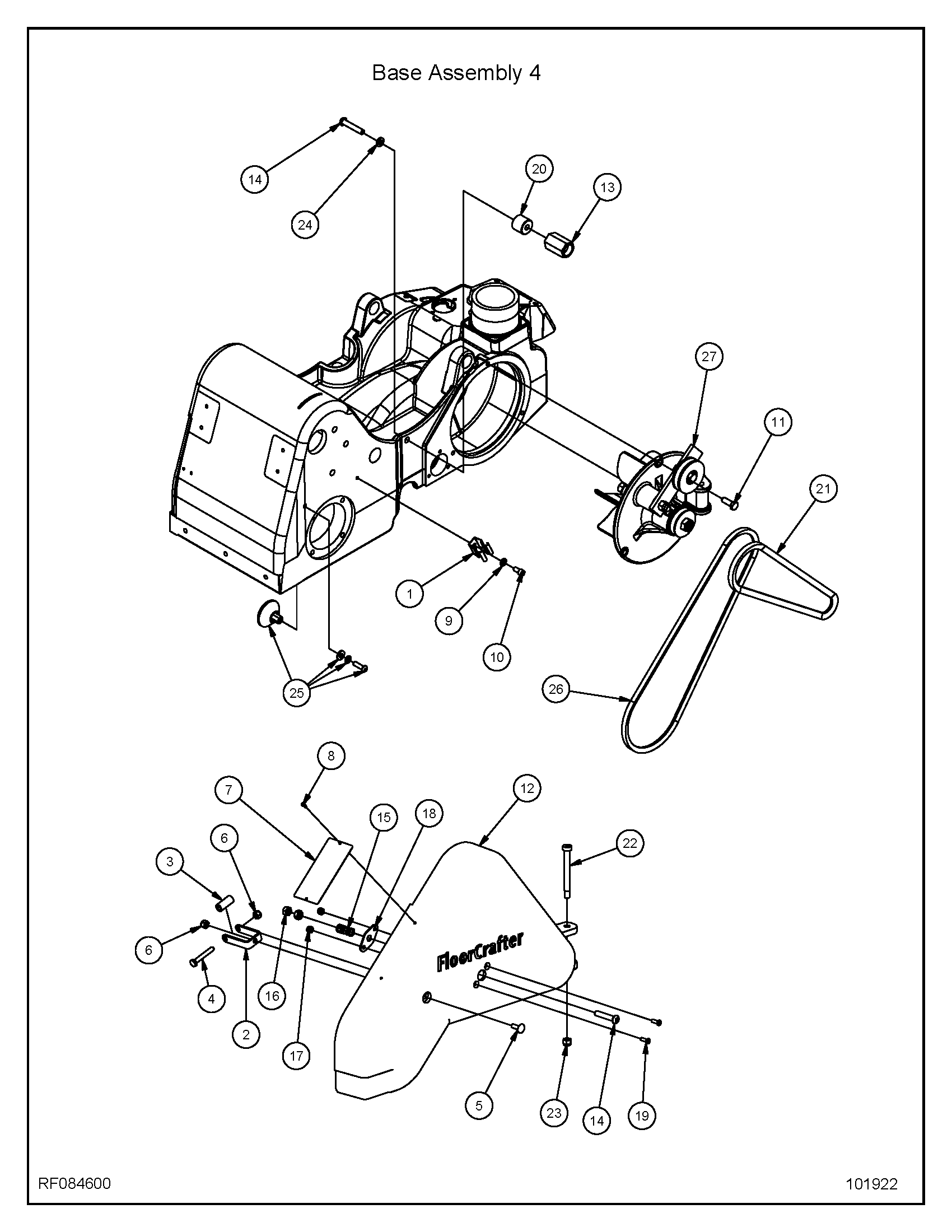

FloorCrafter CE Base Assembly 4

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

ITEM	QTY	PART NUMBER	DESCRIPTION
1	1	61600A	CLIP - DUST
2	1	60384A	BRACKET LATCH
3	1	68393A	TUBE LATCH PNTD8 BELT SANDER
4	1	85702A	SCR 1/4-20 X 1 3/4 HX ST CAP
5	1	80131A	CARRIAGE BOLT
6	2	81102A	NUT STOP ELASTIC 1/4-20 HEX
7	1	74045A	PLATE DANGER MOVING PARTS CLAS
8	2	930093	RIVET, POP, 1/8 X 1/4-5/16 POP STEEL
9	1	980657	WASHER, LOCK 1/4"
10	1	86111A	SCREW 1/4-20 X 1/2 SOCKET HEAD
11	3	85812A	SCREW 5/16-18 X 7/8 HEX HD GR5
12	1	AS068800	GUARD, BELT, FLOORCRAFTER, CE
13	1	AS063100	RECEPTACLE, CAPTURED SCREW
14	2	NB3003	SCREW, BH, 5/16-18 X 1 3/4
15	1	53836A	SPRING INTERLOCK
16	2	NB3260	NUT, 5/16"-18, NC
17	2	NB030700	NUT, LOCK, #10-24, SS
18	1	AS062300	PLATE, CAPTURED SCREW
19	2	NB010400	SCREW, OVAL HD, #10-24 x 5/8"
20	1	AS068300	SPACER, .344 ID x 1 OD x .88L
21	1	51039A	BELT FAN
22	1	80017A	BOLT SHOULDER 3/8 X 2 3/4
23	1	920110	NUT, 5/16-18 HEX LOCK
24	1	980652	WASHER, LOCK, 5/16
25	1	10958A	ROLLER ASM.
26	1	51024A	BELT DRUM AMERICAN 8
27	1	AS068100	COVER, FAN, ASM, CE FLOORCRAFT
