FloorCrafter CE Belt Tensioner Assembly

Call Us: 800-367-3550
International +1 (336) 601-2599
Find a Dealer

To purchase parts for the FloorCrafter CE Belt Tensioner Assembly Parts:

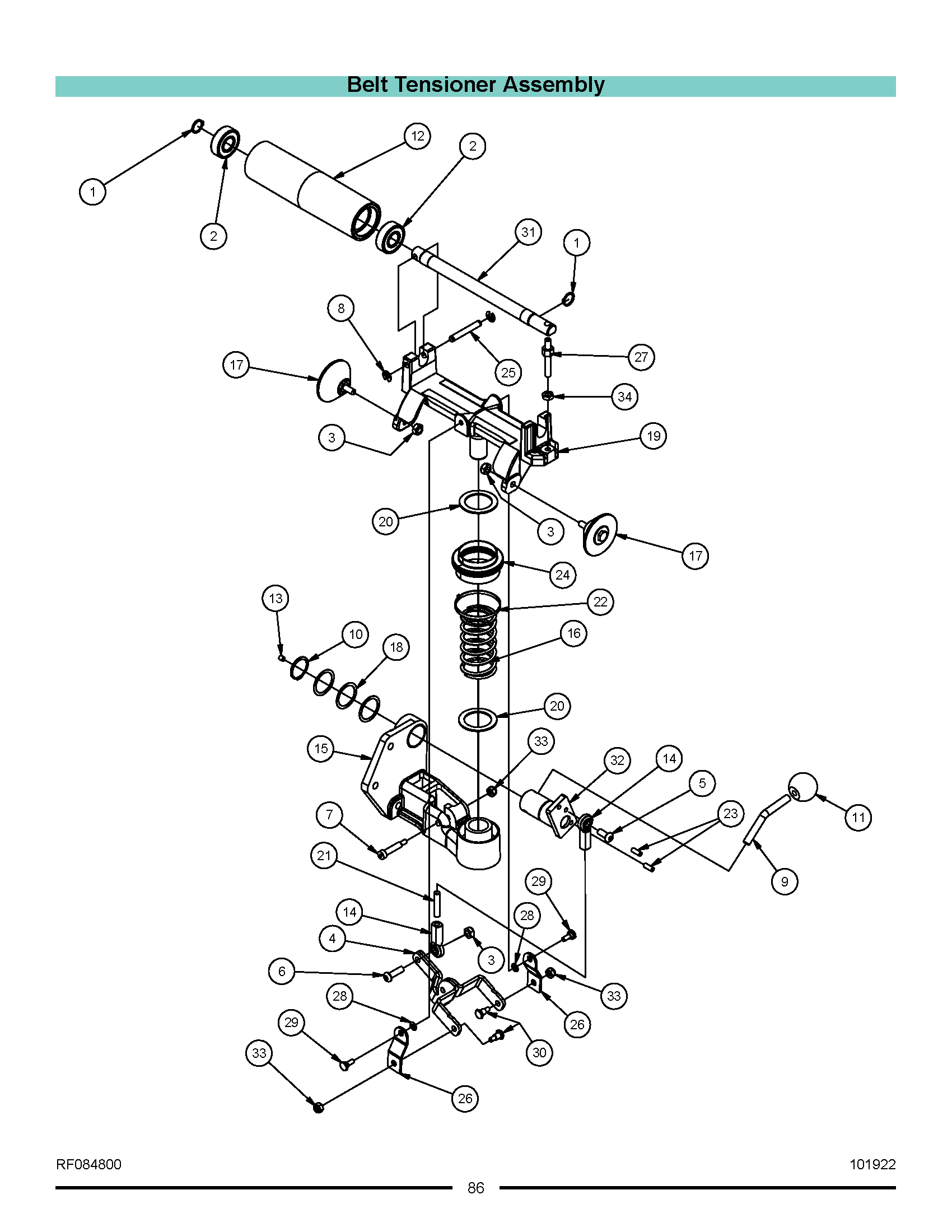

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

ITEM	QTY	PART NUMBER	DESCRIPTION		ITEM	QTY	PART NUMBER	DESCRIPTION
1	2	747380	RING ROLLER RETAINING		18	3	87052A	WASHER FLT 1.25X1.00X.020NYLON
2	2	902567	BEARING BALL 6202-2Z		19	1	20018A	CARRIAGE TENSION ROLLER
3	3	81217A	NUT, 1/4-20 X .218H, NYLOK		20	2	80422A	WEAR WASHER
4	1	60393A	LEVER DRAW		21	1	51221A	LINK CONNECTING
5	1	962822	SCR 1/4-20 X 5/8 BT ST SOC		22	1	NB6041	TIE, NYLON, 3/16 X 11 5/8
6	1	80139A	SCREW, 1/4-20 X 7/8 BT		23	2	925546	PIN-3/16X1/2 ROLL
7	1	80020A	BOLT SHOULDER 1/4 X 1		24	1	30087A	BOOT, BELT TENSIONING
8	2	51211A	E-RING .25 DIA		25	1	60396A	PIN ROLLER SHAFT
9	1	AS068600	LEVER, TENSION RELEASE, CE		26	2	60382A	LINK, DRAW
10	1	51277A	RING, RETAINER - 1.0 EXT.		27	1	60381A	ADJUSTER TRACKING
11	1	51099A	KNOB, RELEASE		28	2	80140A	WASHER 5MM BOWED
12	1	AS069400	ROLLER, TENSIONER, LEGEND		29	2	60395A	SCREW LINK RETAINING
13	1	962165	SCR 10-24X 3/16 ST ST CUPPT		30	2	60391A	SCREW LINK RETAINING
14	2	51216A	ROD END FEMALE		31	1	60383A	SHAFT TENSION ROLLER
15	1	20020A	SUPPORT TENSION ASM.		32	1	10247A	CAM RELEASE WELDMENT
16	1	60379A	SPRING ABRASIVE TENSION		33	3	920296	NUT 10-24 ELASTIC STOP
17	1	14704A	GUIDE ROLLER ASM C-12		34	1	81303A	NUT HEX JAM 1/4-28
