FloorCrafter

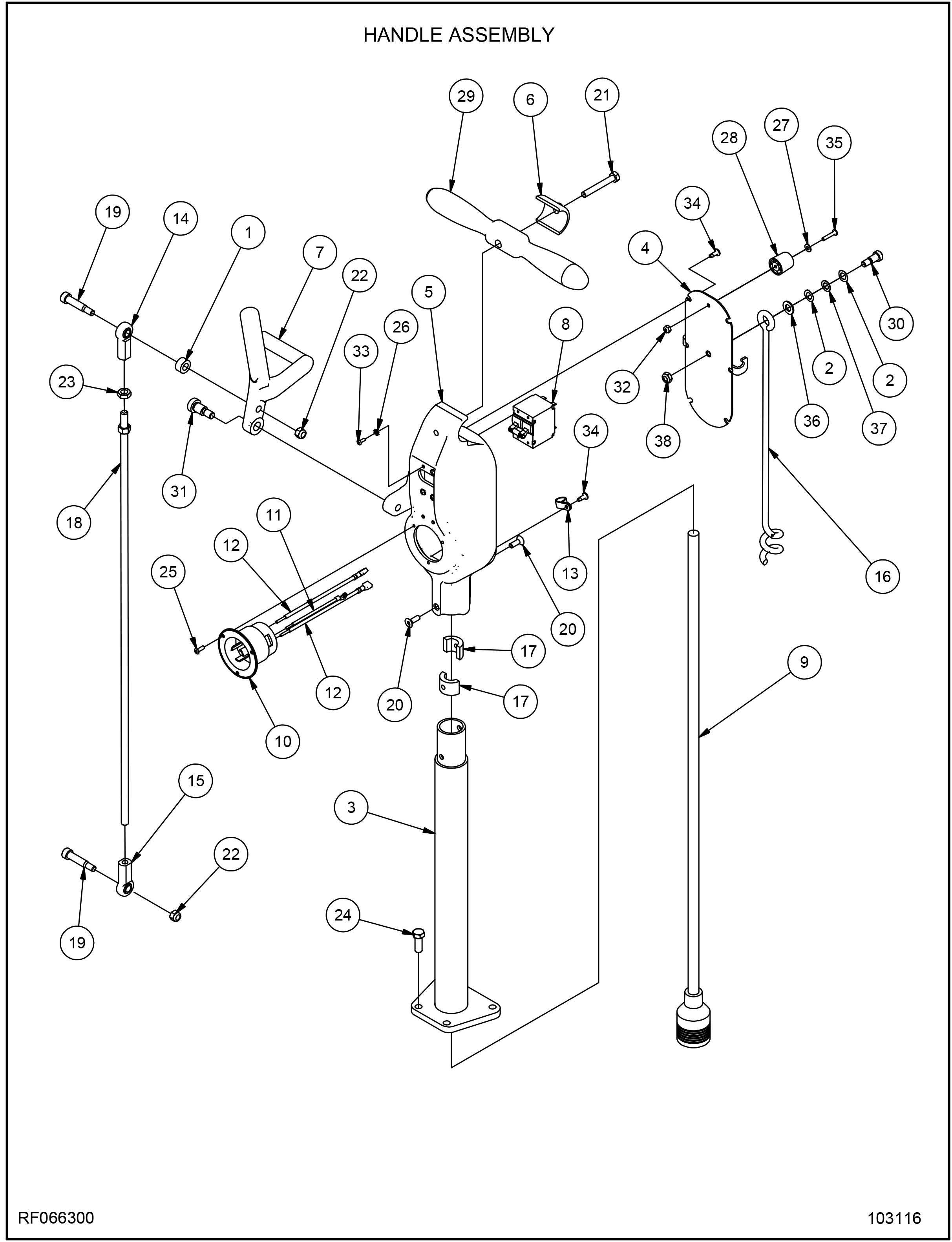

RF066300 Handle Assembly
| Item | Ref. No. | Qty | Description | Item | Ref. No. | Qty | Description | |

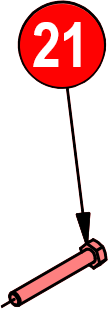

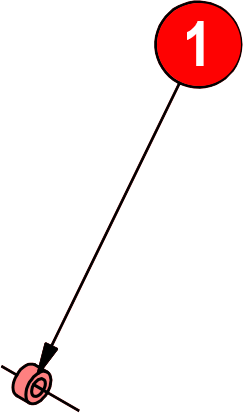

| 1 | 898203 | 1 | Spacer Rod End Hk-8 | 21 | 85818A | 1 | Screw5/16-18 X 2 1/2 Hx Hd | |

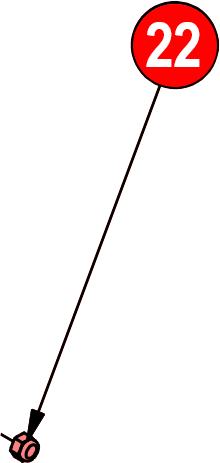

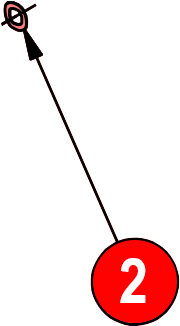

| 2 | 980022 | 2 | Washer Wave | 22 | 920110 | 2 | Nut, 5/16-18 Hex Lock | |

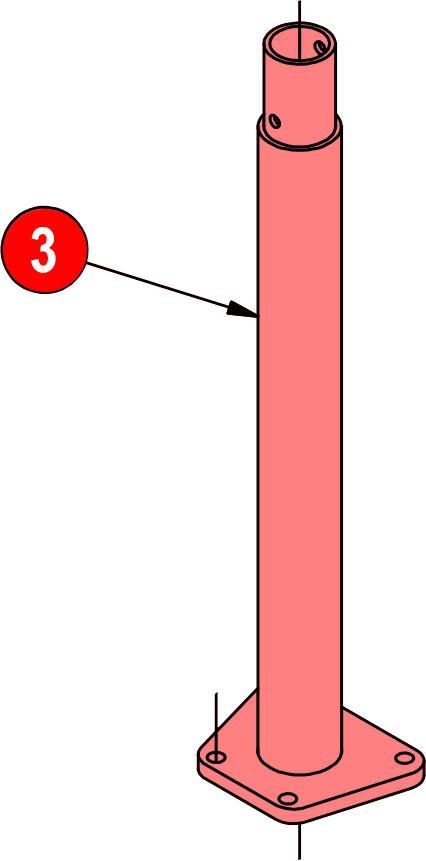

| 3 | 10145A | 1 | Mount Handle Control | 23 | 920204 | 1 | Nut, 3/8-24 Hex Jam | |

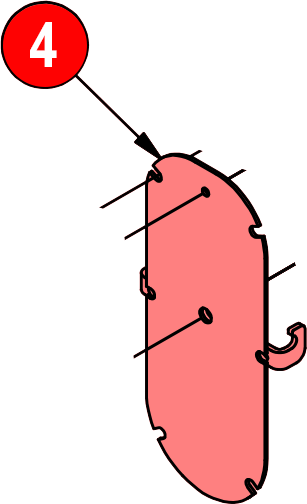

| 4 | 10155A | 1 | Assy Cordholder | 24 | 962288 | 4 | Bolt, 3/8-16 X 1.00 Hex Hd. | |

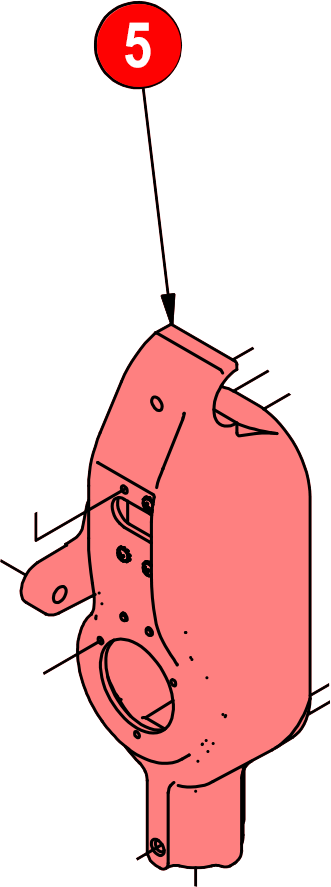

| 5 | 20016A | 1 | Switchbox Sander | 25 | 962727 | 3 | Screw, 8-32 X 1/2 | |

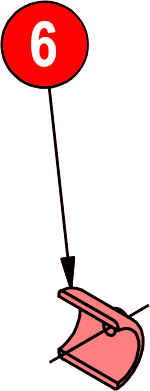

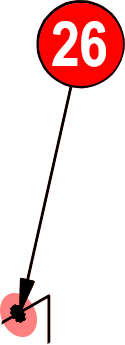

| 6 | 21904C | 1 | Clamp Steering Handle - Black | 26 | 980607 | 4 | Washer, #6 Lock External Tooth | |

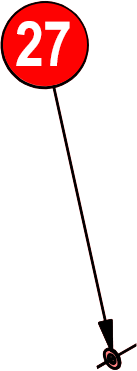

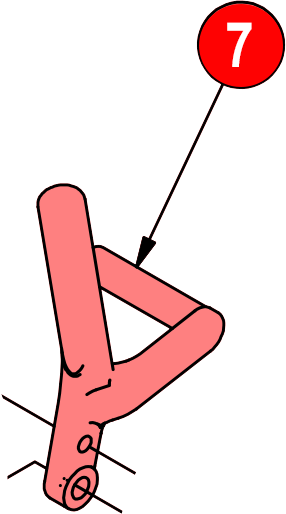

| 7 | 25601A | 1 | Lever Control Classic 8 | 27 | 980982 | 1 | Washer 10 Sae Flat Pltd | |

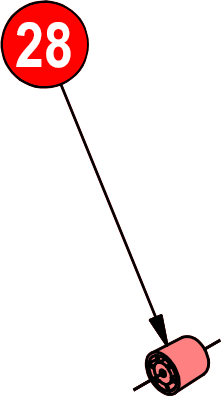

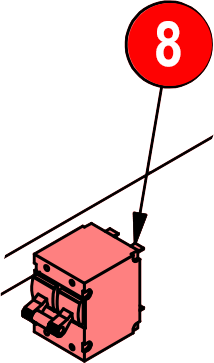

| 8 | 41411A | 1 | Circuit Breaker 30 Amp | 28 | 51220A | 1 | Bumper, Plastic Non-Marking | |

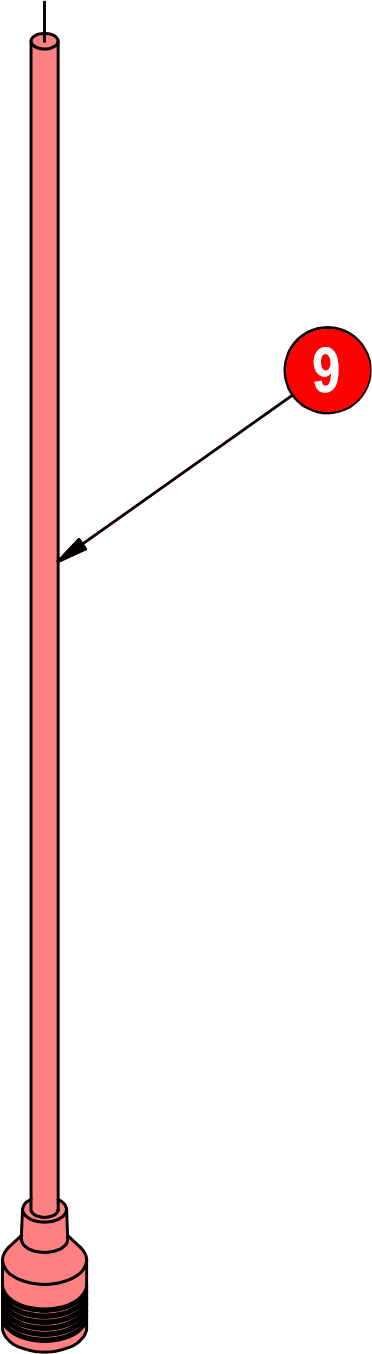

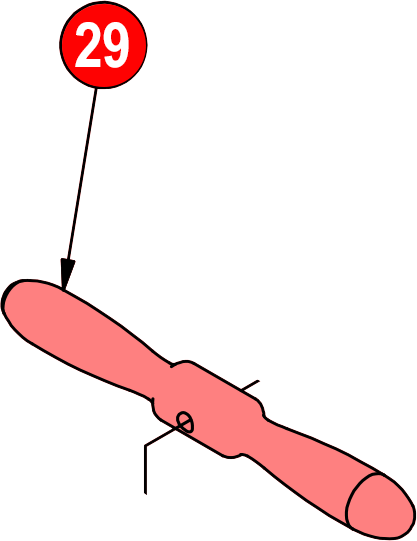

| 9 | 41917A | 1 | Cord-Interconnecting | 29 | 64405A | 1 | Handle, Steering | |

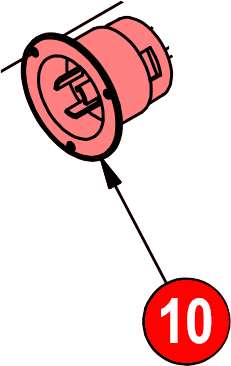

| 10 | 43501A | 1 | Inletflanged Nema L6-20p | 30 | 80026A | 1 | Bolt Shoulder 3/8x1/2 | |

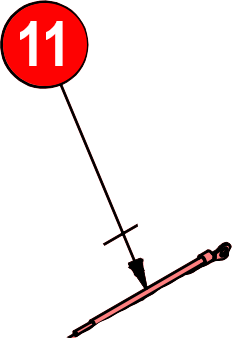

| 11 | 48900A | 1 | Wire Assy | 31 | NB071200 | 1 | Screw, Shoulder, 1/2" x 5/8" x 3/8-16 | |

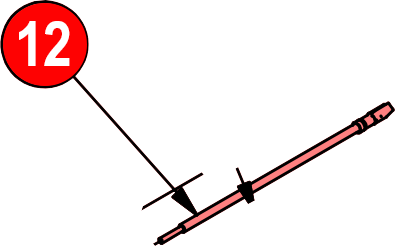

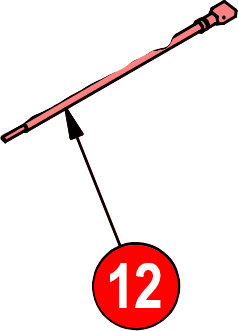

| 12 | 49023A | 2 | Wire Assembly | 32 | 81109A | 1 | Nut, 8-32 Esna S.S. | |
| 13 | 51074A | 2 | Clamp Cable | 33 | 85313C | 4 | Screw Phms 6-32x3/8 Cross Recessed | |

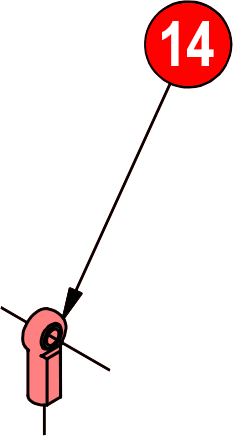

| 14 | 53537A | 1 | Rod End 3/8-24 R.H. Female | 34 | 85517A | 10 | Screw #10-24 X 1/2 PHCR TYPE 23 | |

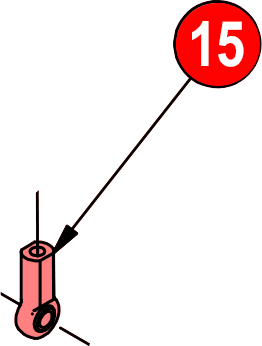

| 15 | 53538A | 1 | Rod End 3/8-24 L.H. Female | 35 | 85613A | 1 | Screw, 8-32 X 7/8 P.H. S.S. | |

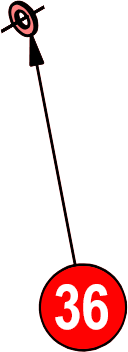

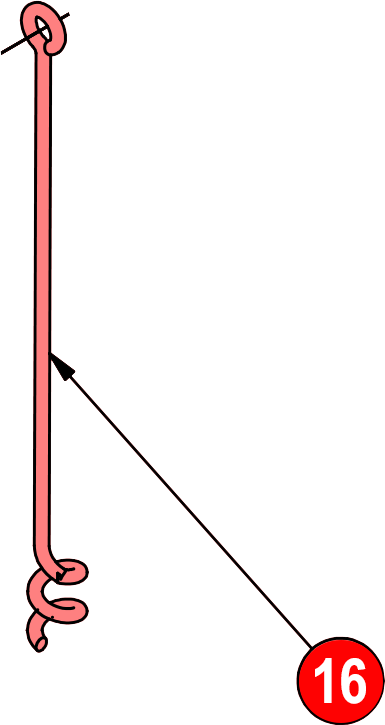

| 16 | 60372A | 1 | Arm Cord | 36 | 87618A | 1 | Washer, Flat .39 I.D. X .75 X .062 | |

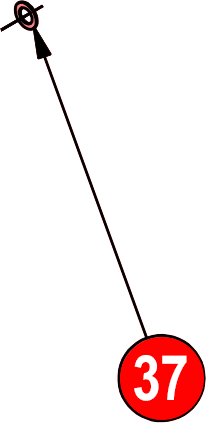

| 17 | 60374A | 2 | Clamp Retainer | 37 | 87619A | 1 | Washer, Flat .375 I.D. X .625 O.D. | |

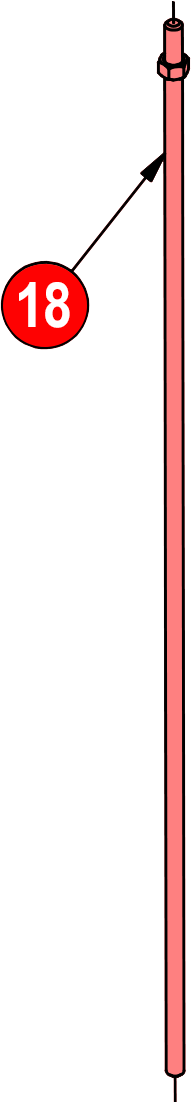

| 18 | 60387A | 1 | Rod Control | 38 | 81112A | 1 | Nut, 5/16-18 Thin ESNA S.S. | |

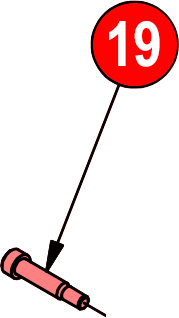

| 19 | 80035B | 2 | Bolt Shoulder 3/8 X 1 1/4 | 39 | 42200A | 1 | Cord Set-Hard Service (Not Shown) | |
| 20 | 80132A | 2 | Screw 1/4-20x3/4 Fh Socket Hd | AS016800 | 1 | Cord, Power, 100', 230V (Model 56380917) | ||
| (Not Shown) |
