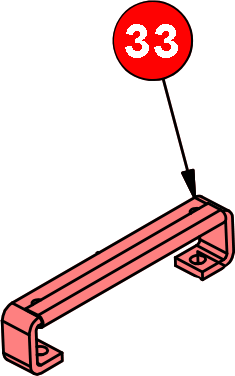

X
X
X
X
X
X
X
X
X
X
X
X
X
FloorCrafter

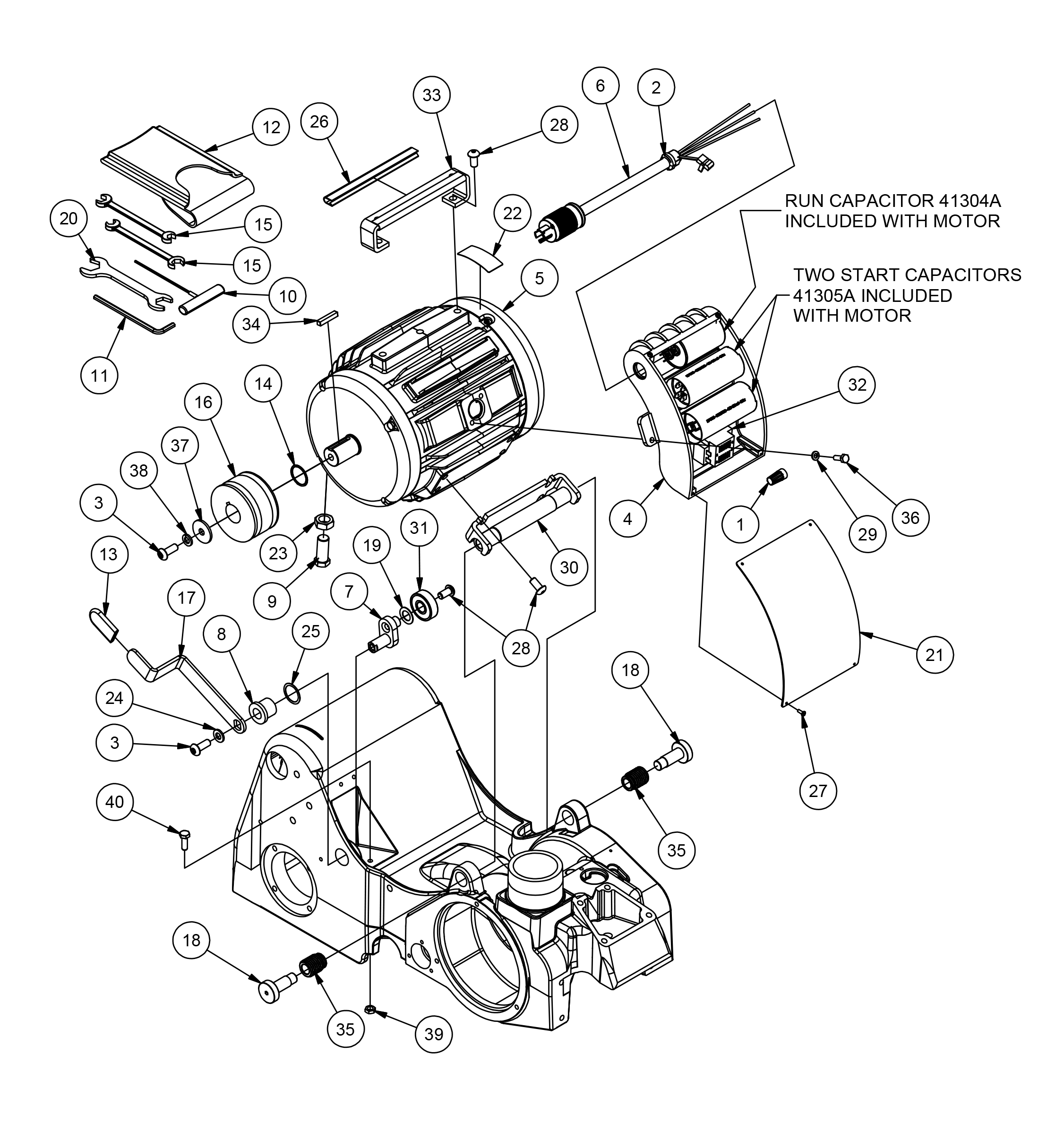

RF066400 Motor Assembly

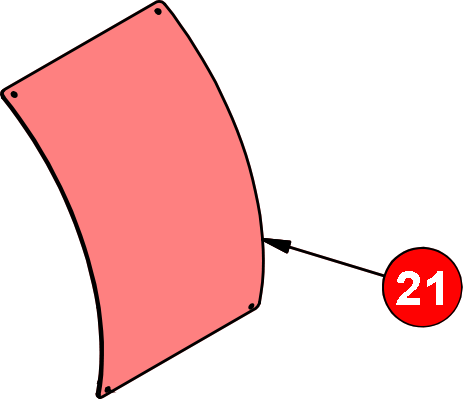

| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |
| 1 | 170674 | 2 | Connectorwire Nut-Red | 21 | 73715A | 1 | Plate Elec/Fire Warning Hk-8 | |
| 2 | 697502 | 1 | Strain Relief-Bushing Sr 8l-1 | 22 | 77234A | 1 | Labelwarningheavy Object | |

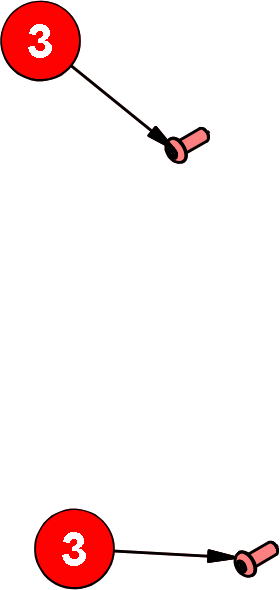

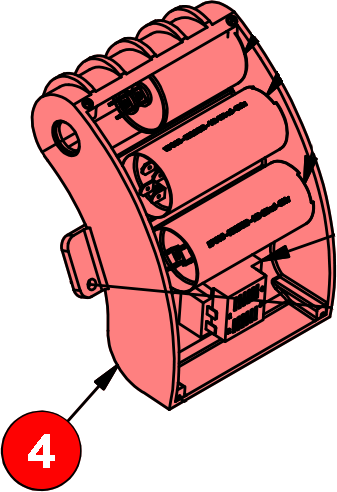

| 3 | 962870 | 2 | Scr 3/8 -16x1 Bt St Allen | 23 | 80138A | 1 | Nut Jam 5/8-11 | |
| 4 | 22904A | 1 | Enclosuremtr Strtpntd Apoll | 24 | 87000A | 1 | Washer .39x.75x.09 Flat St | |

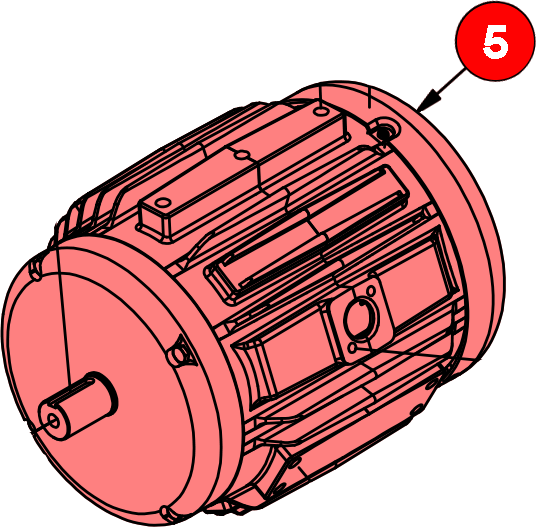

| 5A | 40151A | 1 | Motor 4HP (model 07104A) | 25 | 87052A | 1 | Washer Flt 1.25x1.00x.020nylon | |
| 5B | 56380883 | 1 | Motor 4 HP 240V/50 HZ (model 56380917) | 26 | 97100A | 1.25’ T | rim, Vinyl, Black 400 Ft. Spool | |

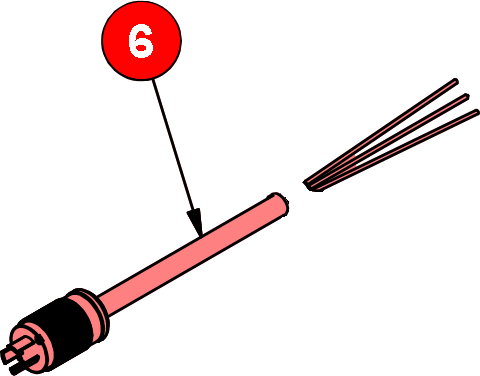

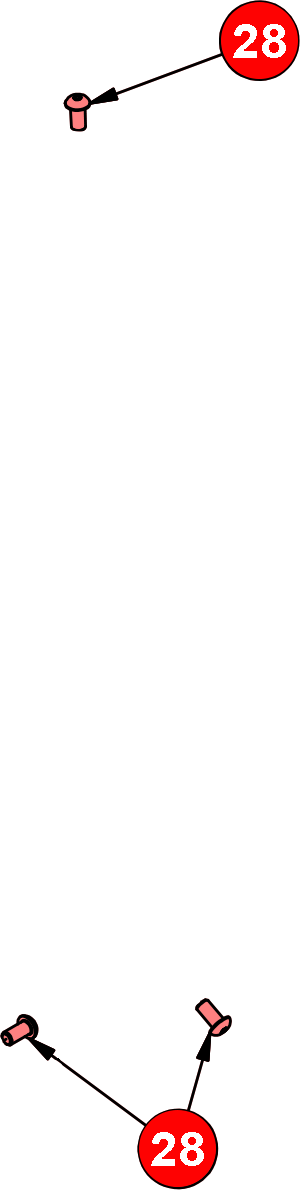

| 6 | 41945A | 1 | Cordmotorclassic 8 | 27 | 962330 | 4 | Screw, 6-32 X 3/8 Pan Hd. | |
| 7 | 51093A | 1 | Cam Belt Release | 28 | 962565 | 7 | Screw, 6-32 X 3/8 Pan HD | |
| 8 | 51215A | 1 | Bearing Flange 5/8x1x1 | 29 | 980657 | 2 | Washer, Lock 1/4 | |
| 9 | 51222A | 1 | Screw Belt Tensioning | 30 | 10173A | 1 | Assy, Motor Mount | |

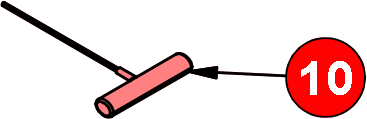

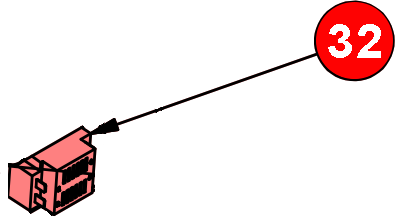

| 10 | 51273A | 1 | Key Hex 3/32 | 31 | 51111A | 1 | Bearingball | |
| 11 | 51274A | 1 | Key Hex 7/32 | 32 | 52420A | 1 | Cover, Lever | |

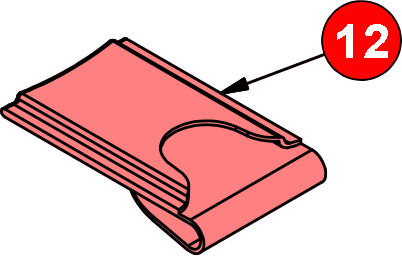

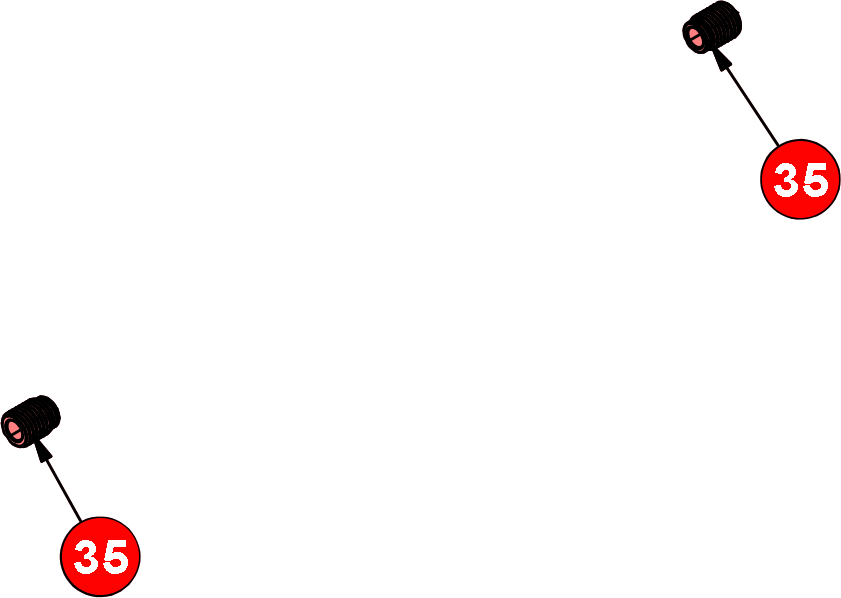

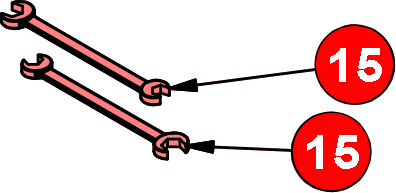

| 12 | 51347A | 1 | Pouch Tool | 33 | 60350A | 1 | Handle, Mainframe | |
| 13 | 52421A | 1 | Pad Stop | 34 | 60394A | 1 | Key Square .250 X 1.38 | |
| 14 | 57712A | 1 | Ringretainingmotor Shaft8 | 35 | 60475A | 2 | Fastener, Motor | |
| 15 | 59810A | 2 | Wrench-Paper Clamp 9/16 X 7/16 | 36 | 85806A | 2 | Screw, 1/4-20 X 3/4 Hex Sz | |

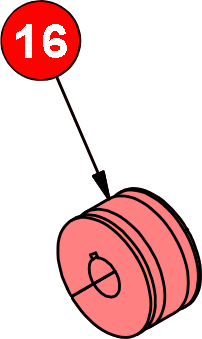

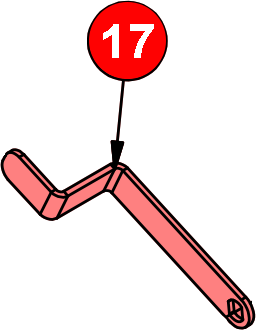

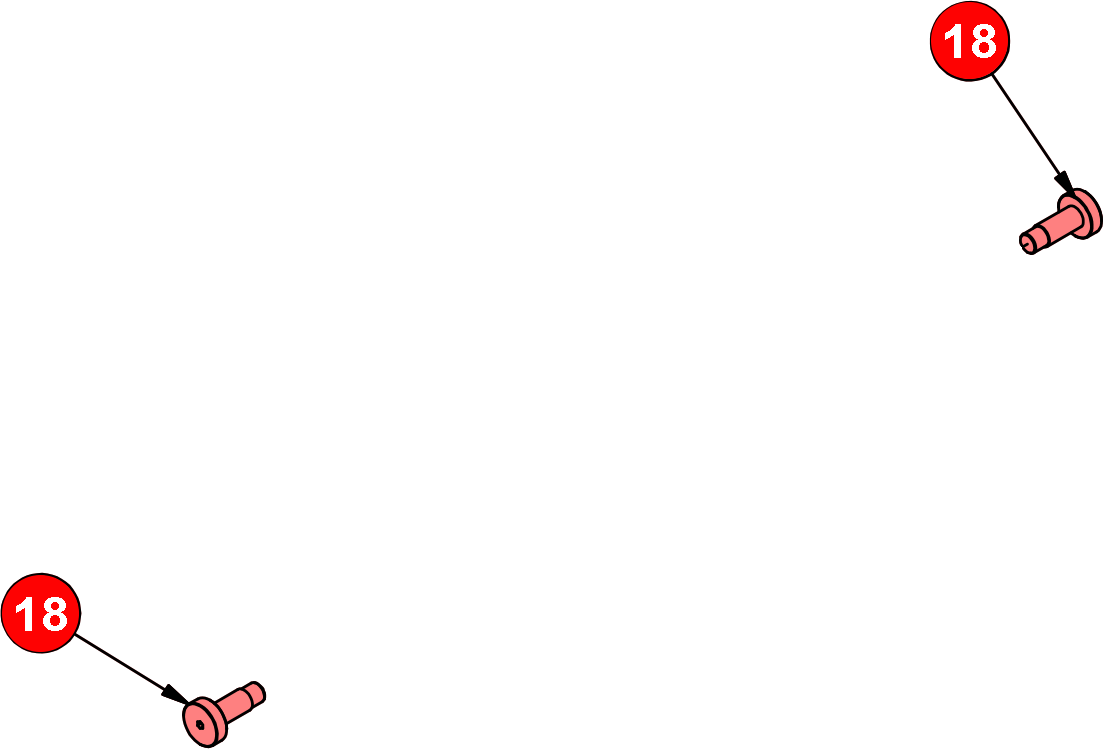

| 16 | 60365A | 1 | Sheave Motor | 37 | 87034A | 1 | Retainer, Motor Pulley | |
| 17 | 60368A | 1 | Lever Belt Tensioning | 38 | MX1075 | 1 | Washer, Lock, 3/8 | |
| 18 | 60476A | 2 | Pin Motor Mount | 39 | 920160 | 1 | Nut, 5/16 Jam Hex | |
| 19 | 60482A | 1 | Spacer | 40 | 85812A | 1 | Screw 5/16-18 x 7/8 Hex HD GR5 | |
| 20 | 60498A | 1 | Wrench 15/16 X 3/4 Open | * | 10332A | 1 | Belt Sander Tool Kit (10, 11, 12, 15, 20) | |
| * = Optional, Not Included | ||||||||
