American 12

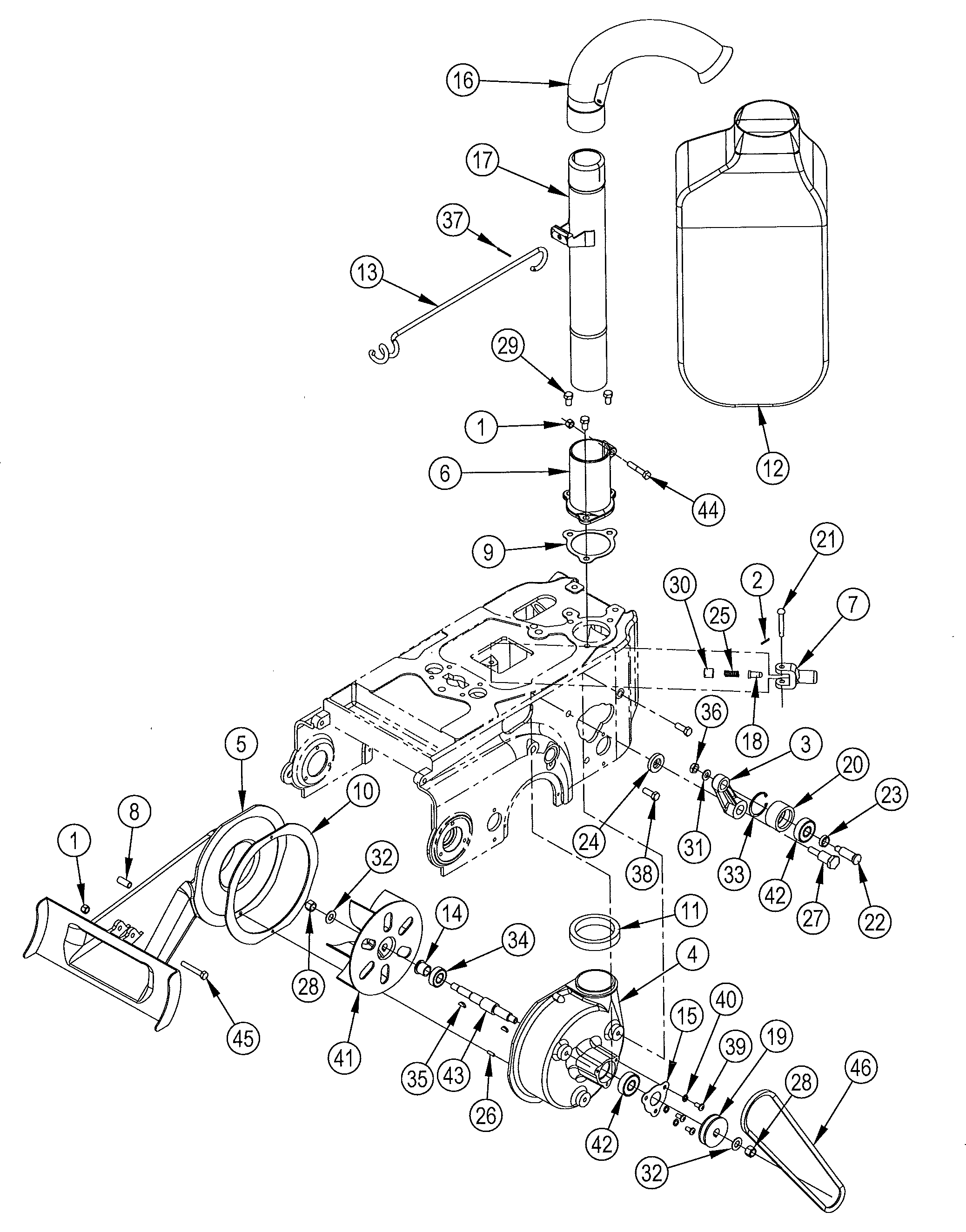

Dust Control Assembly
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |
| 1 | 920256 | 2 | Nut, Hex Nyl Loc 5/16-18 | 25 | 67908A | 1 | Spring | |
| 2 | 925036 | 1 | Pin-3/32x3/4 Cotter | 26 | 68002A | 1 | Stud | |
| 3 | 20401B | 1 | Idler Arm Black | 27 | 68101A | 1 | Stud | |

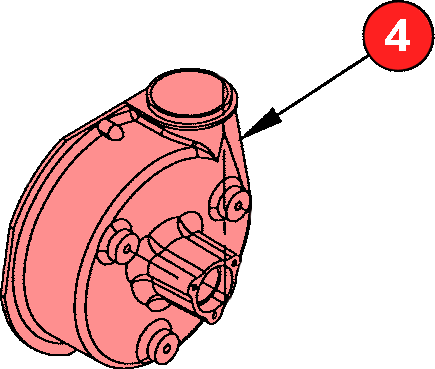

| 4 | 24504C | 1 | Fan Housing - Black | 28 | 81202A | 2 | Nut 7/16-14 Hx St Lh | |

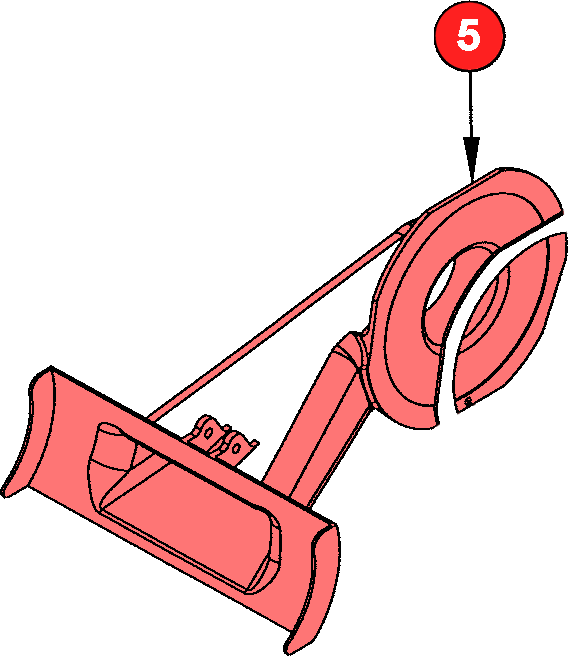

| 5 | 26102A | 1 | Pan-Dust | 29 | 85820A | 3 | Screw 3/8-16 X 5/8 Hx Cap G5 | |

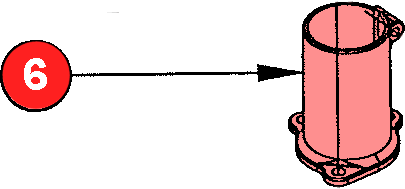

| 6 | 27801C | 1 | Support - Dust Pipe | 30 | 86202A | 1 | Scr 5/8-11x 5/8 St St | |
| 7 | 29402A | 1 | Yoke | 31 | 87000A | 1 | Washer .39x75x.09 Flat St | |
| 8 | 30501A | 1 | Bushing | 32 | 87002A | 2 | Washerflat | |
| 9 | 34223A | 1 | Gasket- Support Pipe | 33 | 877304 | 1 | Ring Retaining Internal | |

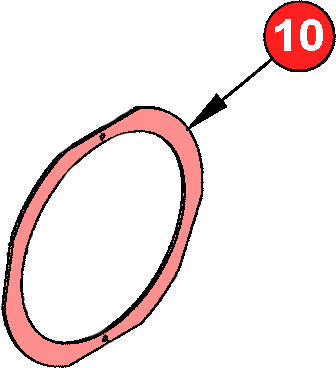

| 10 | 34224A | 1 | Gasket | 34 | 902567 | 1 | Bearing Balldouble Sealed | |
| 11 | 39704A | 1 | Washer-Felt | 35 | 915028 | 2 | Key, 1/8 X 5/8 Woodruff | |

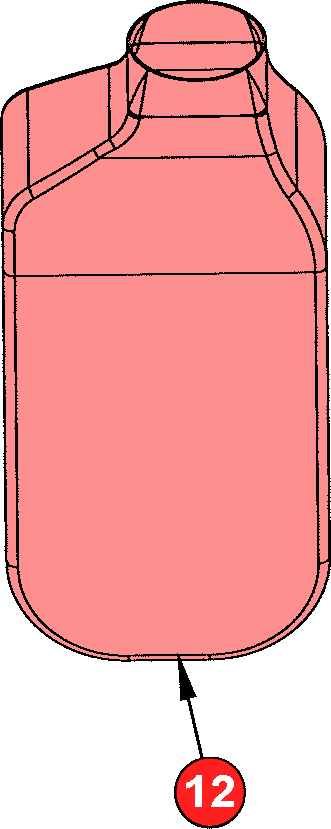

| 12 | 50954A | 1 | Bag Assy- Dust | 36 | 920148 | 1 | Nut, 3/8-16 Hex Jam | |

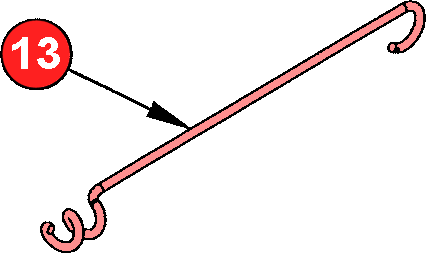

| 13 | 60401A | 1 | Arm-Cable | 37 | 925044 | 1 | Pin, Cotter-.094 X 1.00 | |
| 14 | 61602A | 1 | Collar | 38 | 962288 | 2 | Bolt, 3/8-16 X 1.00 Hex Hd | |
| 15 | 32001A | 1 | Cap-Bearing | 39 | 962823 | 3 | Screw, 1/4-20 X 1/2 P.H. | |

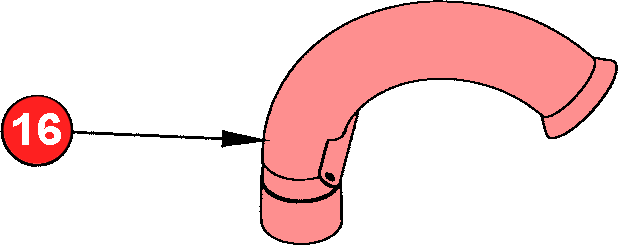

| 16 | 62800A | 1 | Pipe Assy | 40 | 980657 | 3 | Washer, Lock 1/4 | |

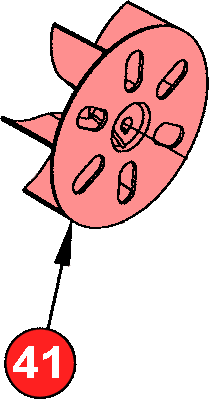

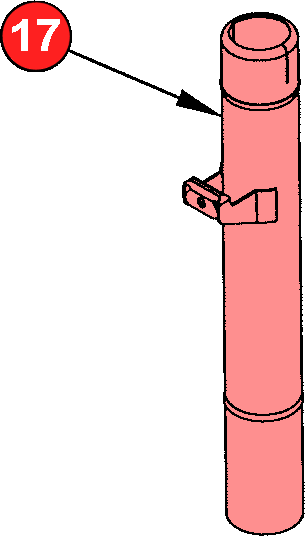

| 17 | 66110A | 1 | Pipe Assy- Dust Weldt | 41 | 23300A | 1 | Fan | |
| 18 | 66115A | 1 | Plunger | 42 | 51111A | 2 | Bearingball | |
| 19 | 66172A | 1 | Pulley Fan Am-12 | 43 | 67424A | 1 | Shaft Fan | |
| 20 | 66173A | 1 | Pulley Idler Am-12 | 44 | 85816A | 1 | Screw, 5/16-18 X 1.75 Hex Hd | |
| 21 | 66505A | 1 | Pin-Hinger Yoke | 45 | 85817A | 1 | Screw 5/16-18 X 2.00 Hex Hd Gr5 | |

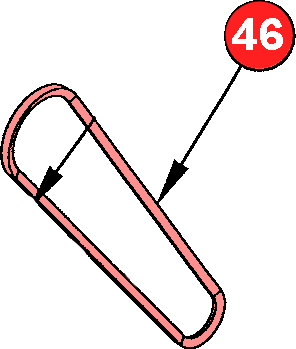

| 22 | 67413A | 1 | Shaft | 46 | AS030400 | 1 | Belt Fan (Models 07108A, 07109A, 07204A, 07120A, 07108C) | |
| 23 | 67815A | 1 | Spacer-Bearing-Idler Pulley | 47 | AS018600 | 1 | Belt, 3V 35.5 (Model 07001A, 07108B) | |
| 24 | 67816A | 1 | Spacer |
