To purchase parts for the American 8 (Base Assembly 2):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

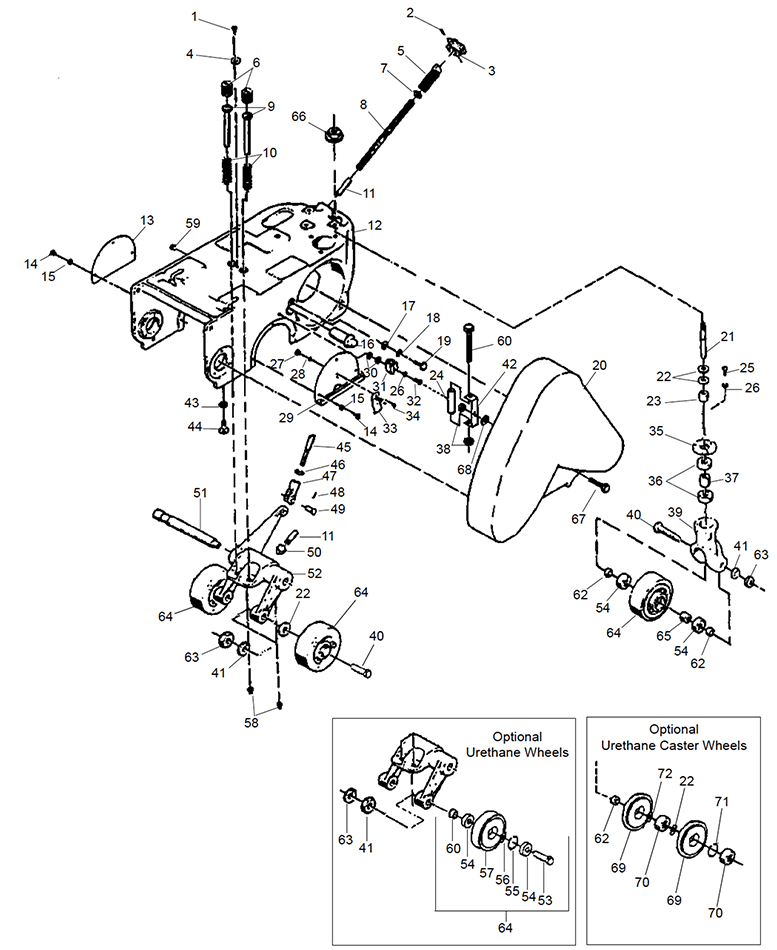

American 8 Base Assembly 2

ItemPart NumberQtyDescriptionItemPart NumberQtyDescriptionItemPart NumberQtyDescription
19620521Screw - 10-24 x 1/2 Flt St Mach3087004A2Washer, Fit St5957101A1Plug, Soft
29621612Screw - 10-24 x 3/4 St St Cuppt3161600A1Clip, Dust 56060544A2Spacer
325200C1Knob - Hand329629831Screw, 1/4-20 x 5/8  Pn St Mach6267810A2Spacer
466912A1Retainer, Screw Adjusting3363904A1Clamp, Belt Guard639201963Nut, 1/2- 13
567309A1Screw3485313C2Screw, 6-32 x 3/8 Pn St Mach6459928A3Wheel (Steel) NOTE 2
667315A2Screw3566913A1Retainer Bearing[ ]10243A-Kit, Wheel (Urethane)(Optional)
787000A1Washer3651112A2Bearing, Ball6567817A1Spacer NOTE 2
867905A1Spring3767821A1Spacer6681209A1Nut, 1/2-13 Flange
966123A2Plunger, Spring3881102A2Nut, 1/4-20 ESNA6785806A1Screw, 1/4-20 x 3/4
1067906A2Spring3929403C1Yoke, Wheel6887007A1Washer, 1/4-3/4 x 69/1000
1167107A1Rod- Pivot4060101A3Axle6961333A2Wheel, Caster 4" NOTE 1
1223405B1Frame, Main4187101A3Washer7051226A4Bearing NOTE 1
1366628C1Plate, Cover Wheel4251071A1Bracket, Latch717473042Ring, Retaining NOTE 1
149620156Screw, 10-24 x 3/8 Pn St Mach439201601Nut 5/16 -187261355A2Spacer NOTE 1
159806506Washer, Lock4486201A1Screw 5/16  -18 x 1"
1662801A1Eccentric4567143A1Rod, ControlItems Not Shown
1787007A1Washer, Control Shaft Eccentric469202601Nut 3/8 -16 x 5/1653560A1Operators Leather Belt
189806141Washer, #1114 Shakeproof4753917B1Clevis,ControRl od59810A2Wrench, End 9/16 x 7/16
1985700A1Screw, 1/4-20 x 1" Hex489250361Pin, Cotter 3/32 x 3/459815A1Wrench 5/32
2070224B1Kit Guard, Belt4966503A1Pin, Fork64415A1Handle-Carrying
2160715B1Bolt, Pivot5062000A1Nut, End42201A1Cordset- Hard Service
2287003A4Washer, 59/100 x 1 x 9/100 Flat5167412A1Shaft, Control100FT
2367812A1Spacer, Bracket5221101A1Bracket, Truck Wheel42200A1Cord Set-Hard Service
2451069A1Tube, Latch5360547A2Axle NOTE 168315A1Template
259628233Screw, 1/4-20 x 1/2 Pn St Mach54561060706Bearing, Ball563832413Steel Wheel AM 8/12 Asm
269806574Washer, 17/64 I x 31/64 0 x 1/16551673122Ring, Retainer NOTE 110243A3Wheel Asm Urethane
279201122Nut, #6-32 Hex56NB0751002Washer, 5/8 ID X 1 OD X 1/40 NOTE 130088A1Skid Transport
289806072Washer, #1106 Shakeproof5750992A2Wheel, Asm. NOTE 1
2966627A1Cover, Truck Wheel5854000A2Fitting, Lub
