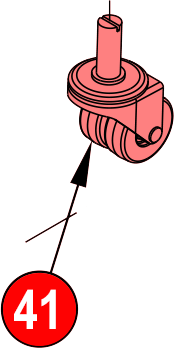

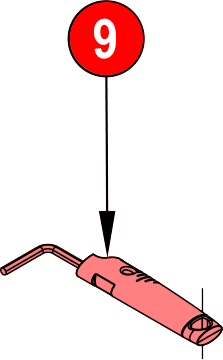

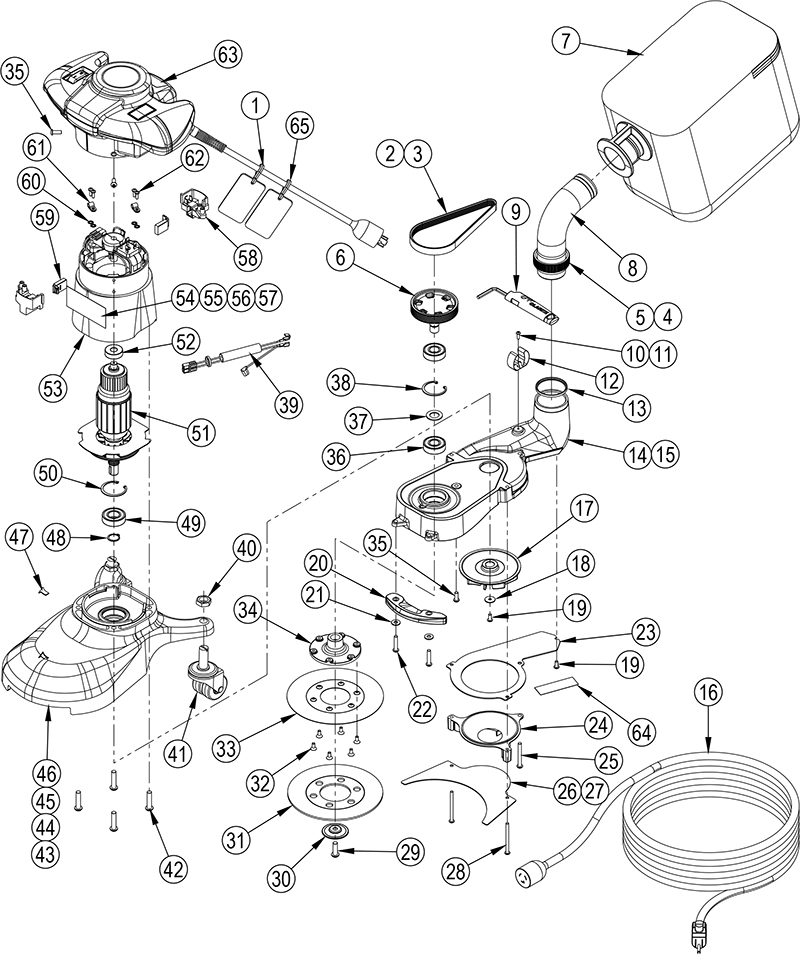

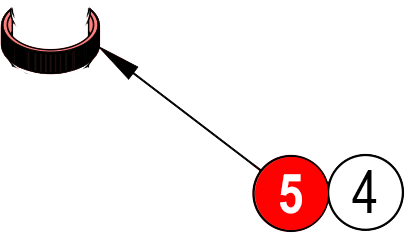

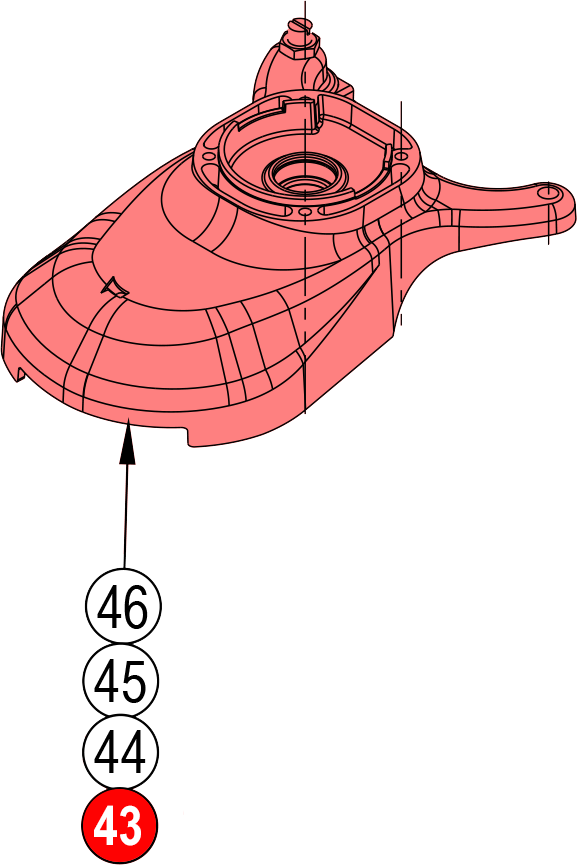

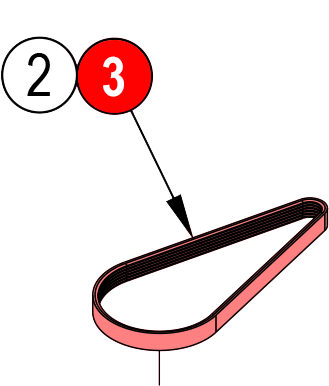

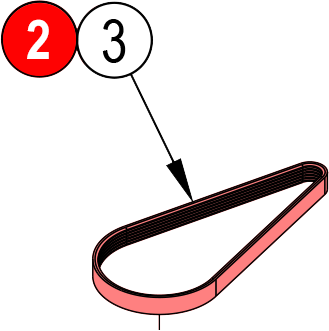

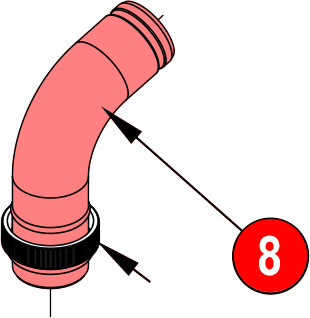

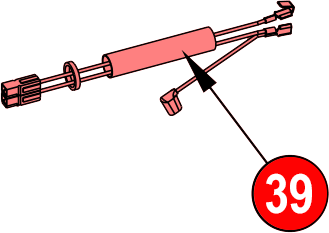

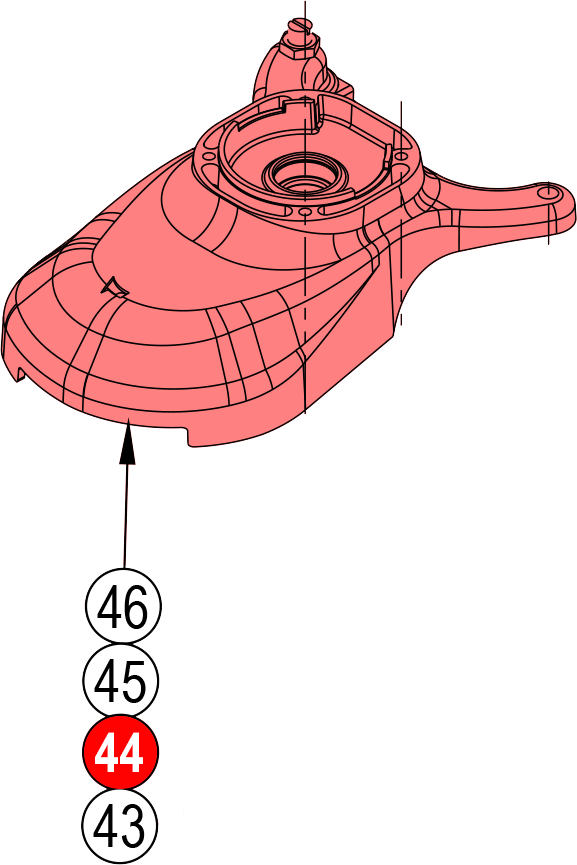

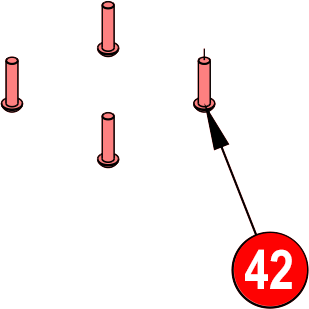

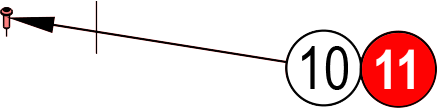

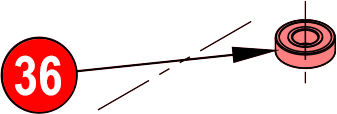

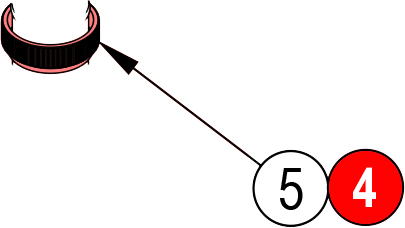

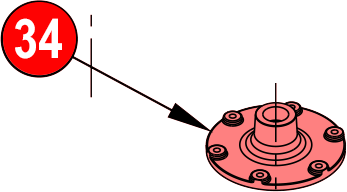

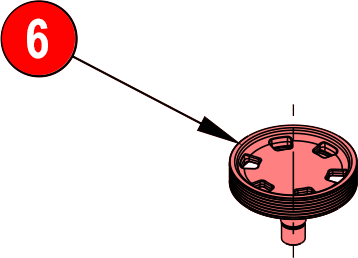

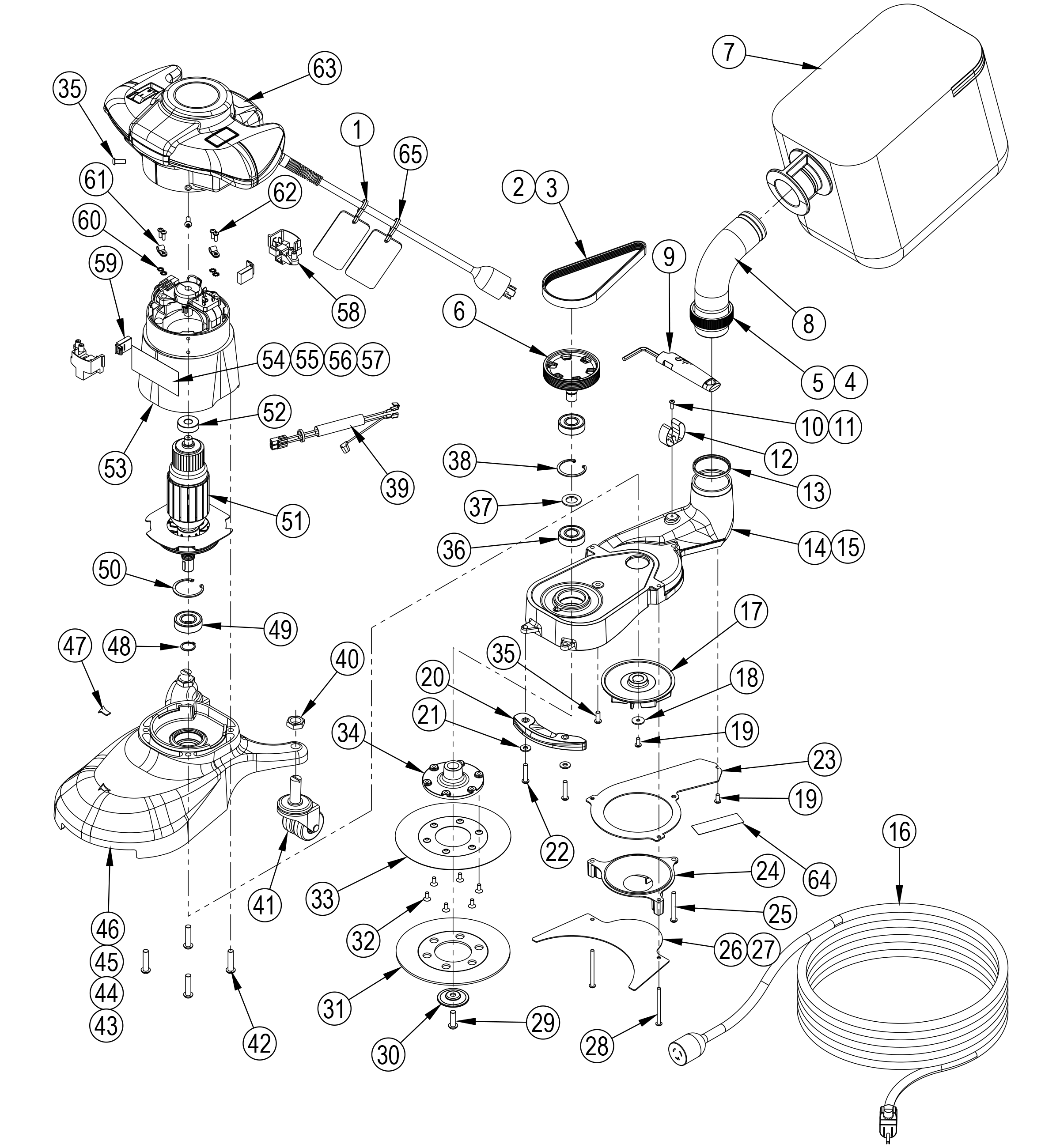

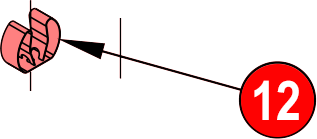

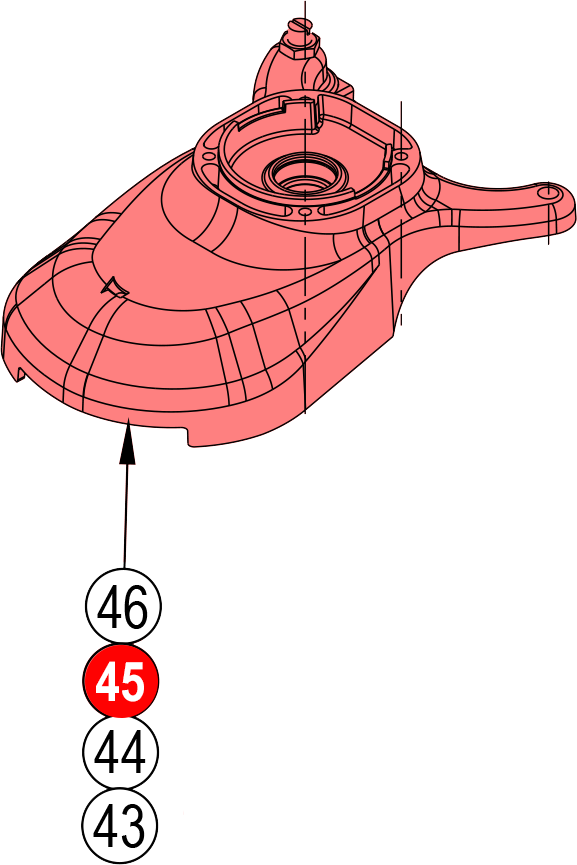

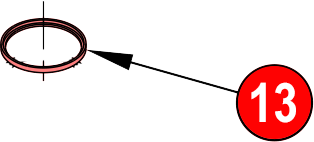

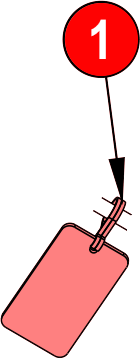

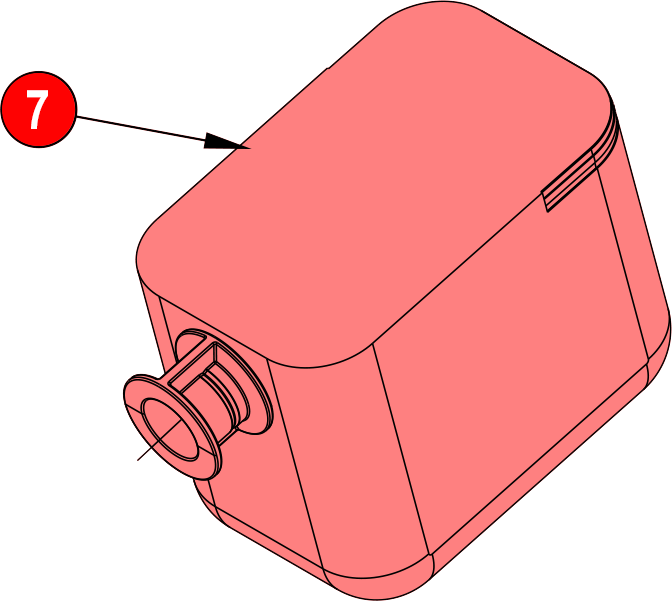

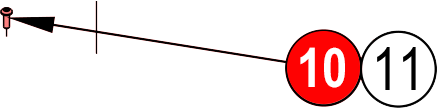

| Item | Part Number | QTY | Description | Item | Part Number | QTY | Description | | 1 | 70175A | 1 | Tag, Warning | 34 | 29910A | 1 | Hub, Pad Driver | | 2 | 53772A | 1 | Belt Extension CE7 (07170A, 07175A) | 35 | 80326A | 5 | Screw, M6-1X16 Btn Hd (qty of 4 on 07176A, 07180A) | | 3 | 53775A | | Belt Drive SE7 (07176A, 07180A) | 36 | 902550 | 2 | Bearing, Ball, 6203 | | 4 | 80276A | 1 | Nut, Slip Joint 2” x 2” | 37 | 61860A | 1 | Spacer, Pad Bearing | | 5 | 990507 | 1 | Loctite RC601 | 38 | L067304 | 1 | Ring, Retaining Internal | | 6 | 29908A | 1 | Pulley, Driver | 39 | 40252A | 1 | Speed Select Interconnect (07170A, 07176A) | | 7 | 53544C | 1 | Bag, Edger CE7/SE7 | 40 | 80361A | 2 | Nut, M16-2 Hex Thin Jam | | 8 | 61712A | 1 | Tube, Exhaust, B-2 | 41 | 39865A | 2 | Caster and Yoke Assembly | | 9 | 39875A | 1 | Multipurpose Tool | 42 | 80358A | 4 | Screw, M8-1.25X35 Btn Hd | | 10 | 80362A | 1 | Screw, M4-.7 x 12 Btn Hd | 43 | 29904A | 1 | Frame, Long Polished (07170A) | | 11 | 93801A | 1 | Loctite Thread Locket | 44 | 29905A | 1 | Frame, Long Charcoal Grey (07175A) | | 12 | 61858A | 1 | Clip, Steel 3/4” to 1-1/8” | 45 | 29919A | 1 | Frame, Short Polished (07176A) | | 13 | 30613A | 2 | Seal, Pipe | 46 | 29920A | 1 | Frame, Short Charcoal Grey (07180A) | | 14 | 29906A | 1 | Support, Bearing (07170A, 07175A) | 47 | 30188A | 1 | Plug, Access Hole CE/SE 7 | | 15 | 29907A | 1 | Support, Bearing (07176A, 07180A) | 48 | 877305 | 1 | Ring, Retaining EXT .781 | | 16 | 42300A | 1 | Cordset, 14-3 x 25’ SO/SOW (07170A, 07176A) | 49 | 53771A | 1 | Ball Bearing, 6004 | | 16B | MP513000 | 1 | Cord, Power Supply, IEC, RED (07220A) | 50 | 877304 | 1 | Ring, Retaining Internal | | 17 | 29902A | 1 | Fan, CE/SE7 Dust | 51 | 11119A | 1 | Armature CE/SE 7 120V | | 18 | 80291A | 1 | Washer, Flat #10 | 51B | 11120A | 1 | Armature CE/SE 7 230V (07220A) | | 19 | 80363A | 2 | Screw, M5-.8X12 BT | 52 | 51126A | 1 | Bearing, 6201 | | 20 | 39867A | 1 | Wall Guard | 53 | | 1 | Motor Housing Assembly | | 21 | 980646 | 2 | Washer, 1/4” Flat | 54 | 71464A | 1 | Label, CE7 Pro+ (07170A) | | 22 | 80327A | 2 | Screw, M6-1X30 Btn Hd | 55 | 71465A | 1 | Label, CE7 Pro (07175A) | | 23 | 61861A | 1 | Baffle, Fan | 56 | 71466A | 1 | Label, SE7 Pro+ (07176A) | | 24 | 39866A | 1 | Shroud, Fan | 57 | 71467A | 1 | Label, SE7 Pro (07180A) | | 25 | 80356A | 1 | Screw, M6-1X50 Btn Hd | 58 | 40717A | 2 | Brush, Holder | | 26 | 61853A | 1 | Plate, Bottom Dust (07170A, 07175A) | 59 | 40583A | 2 | Brush, Carbon Terminated | | 27 | 61854A | 1 | Plate, Bottom Dust (07176A, 07180A) | 60 | 980603 | 4 | Washer, #10 Lock Ext Tooth | | 28 | 80325A | 1 | Screw, M5-.8X65 Btn Hd | 61 | 98464A | 2 | Clamp, 1/4” Nylon Tubing (qty of 1 on 07175A & 07180A) | | 29 | 80357A | 1 | Screw, M8-1.25X25 Btn Hd | 62 | 962027 | 4 | Screw, 8-32X1/2 PH | | 30 | 62411A | 1 | Washer | 63 | | 1 | Handle Assembly | | 31 | 39864A | 1 | Pad, Hook & Loop | 64 | 56380639 | 1 | Decal-Prop 65 | | 32 | 80364A | 6 | Screw, M5-.8X12 FHSR | 65 | 70175A-FR | 1 | Tag Warning Eng-Frn (07170A, 07176A) | | 33 | 61851A | 1 | Sanding Disk | | | | | |
