3DS

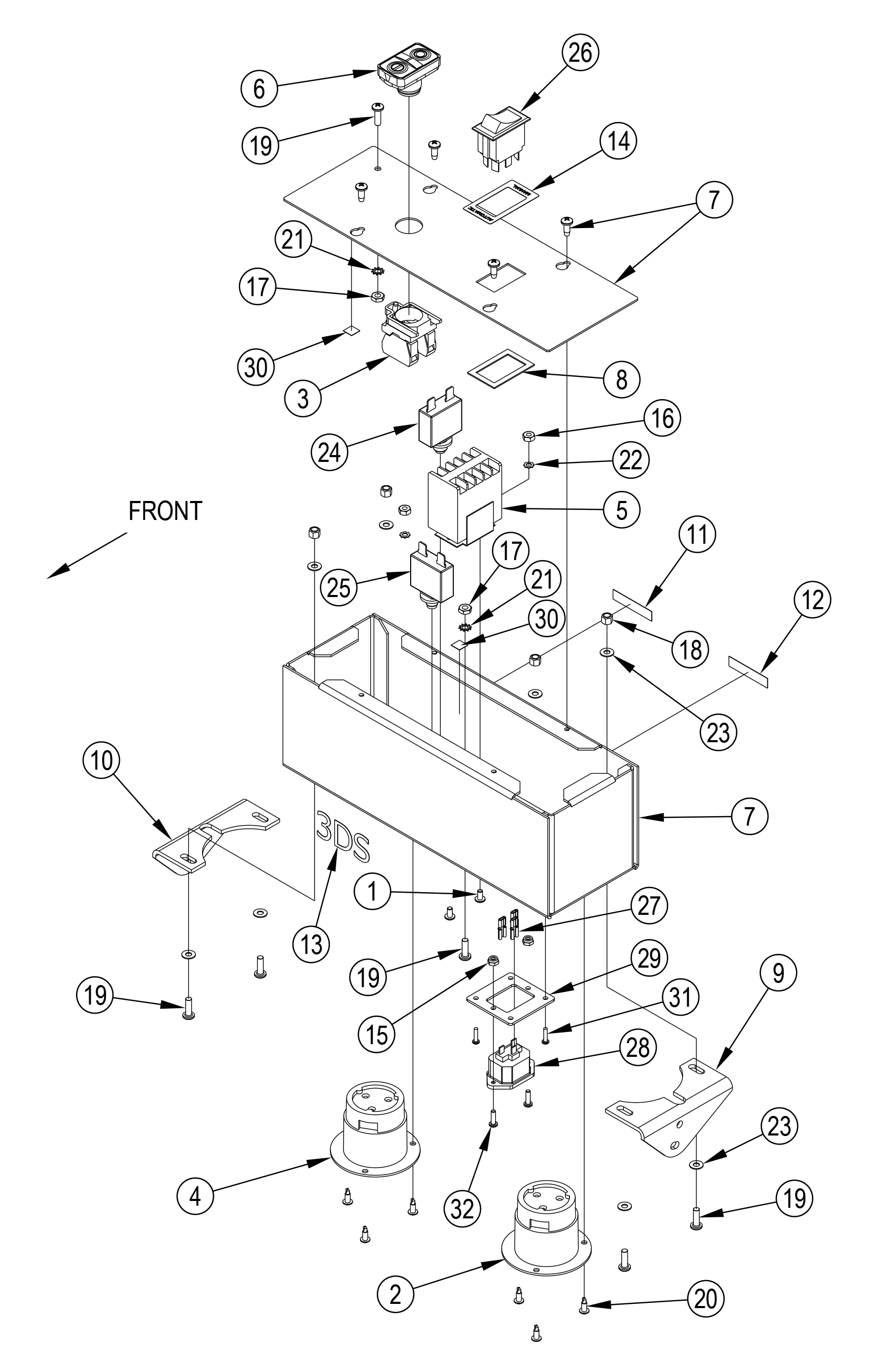

Electrical Box Assembly
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |
| 10774A | 1 | Box Asm Electric 3DS (07082C) | 16 | 920108 | 2 | Nut, 8-32 | ||
| 10030A | 1 | Box, Asm. 230V 50Hz (07085C, 07112A) | 17 | 920200 | 2 | Nut, 10-24 Hex | ||
| 1 | 962065 | 2 | Screw 8-32 X 1/4 Pn St Ph | 18 | 920296 | 4 | Nut 10-24 Elastic Stop | |

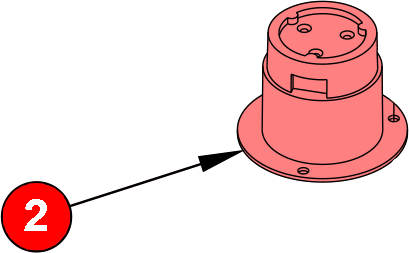

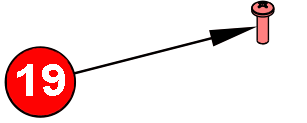

| 2 | 36800A | 1 | Outletnema Flanged 3DS (07082C) | 19 | 962109 | 6 | Screw, 10-24 X 5/8 Phcr Ss | |
| [] | 40054A | 1 | Outletflanged L6-30R (07085C, 07112A) | 20 | 962727 | 6 | SCREW, 8-32 X 1/2 W/DRILL PT | |
| 3 | 40415B | 1 | Block Contact | 21 | 980603 | 2 | Washer, #10 Lock External Tooth | |

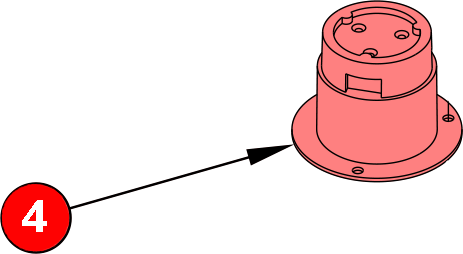

| 4 | 43501A | 1 | lnletflanged Nema L6-20P (07082C) | 22 | 980621 | 2 | Washer External Tooth Lock | |
| [] | 40040A | 1 | lnletiec 309 Male Pin (07085C, 07112A) | 23 | 980982 | 8 | Washer 10 Sae Flat Pltd | |

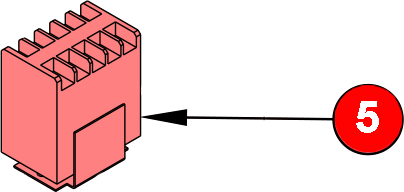

| 5 | 46326A | 1 | Relaywire 230v | 24 | 41419A | 1 | Circuit Breaker15a | |

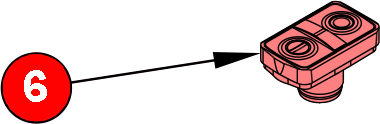

| 6 | 50205B | 1 | Actuator Start / Stop | 25 | 41423B | 1 | Breaker, 5a Circuit, Cntrl./Act. | |

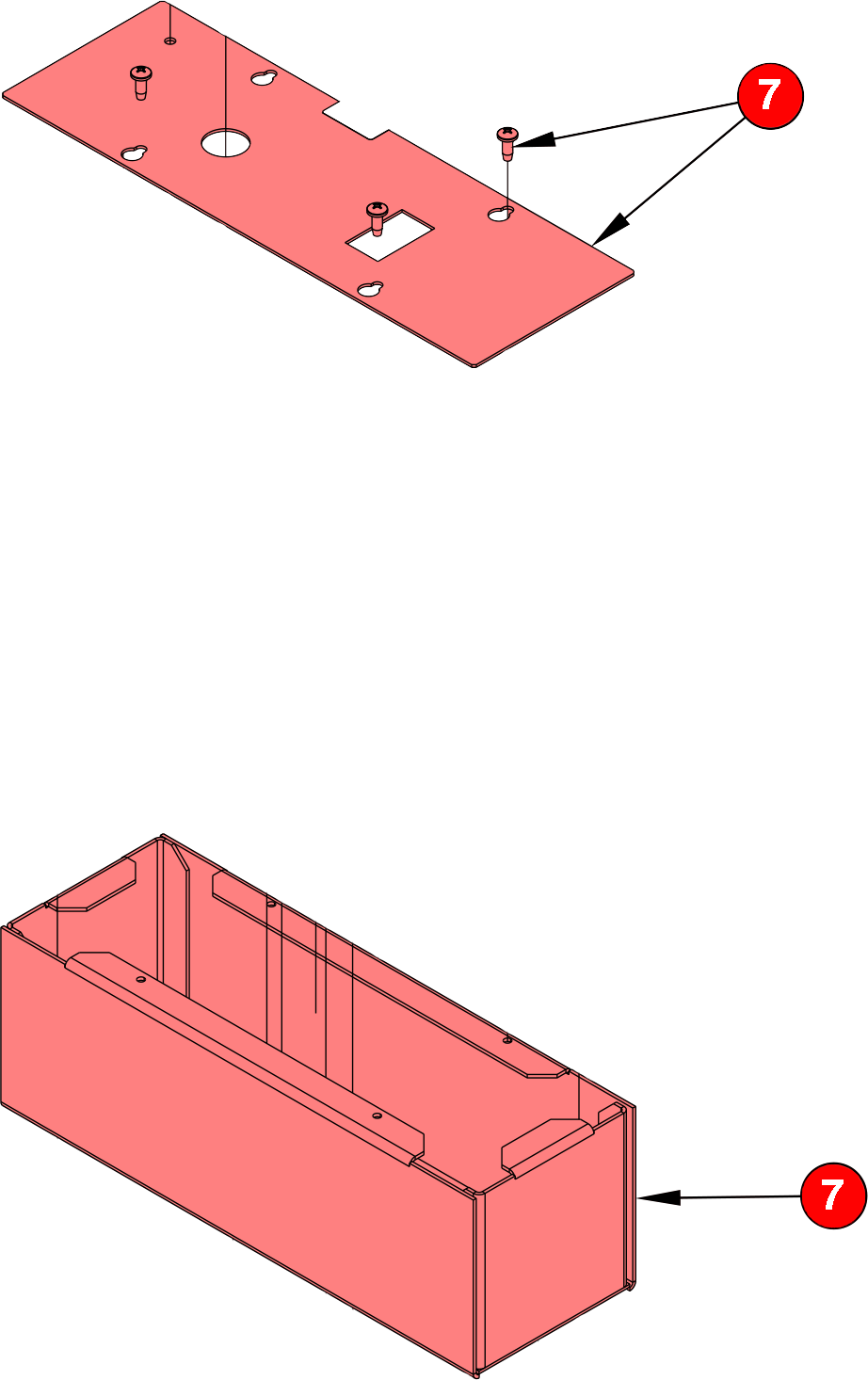

| 7 | 51091A | 1 | Box Electrical | 26 | 47381B | 1 | Switch, Rocker, Dpdt | |

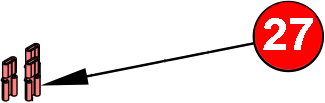

| 8 | 61665A | 1 | Clip Switch Mtg. Dayton 20ds | 27 | 47711A | 3 | Terminal, 1/4" Fifqd (07082C) | |

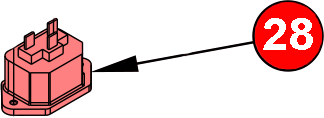

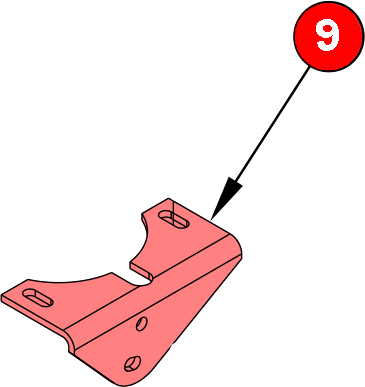

| 9 | 69917A | 1 | Bracketelec. Box Left Pntd | 28 | 51375A | 1 | Outlet lee 10a 250v (07082C) | |

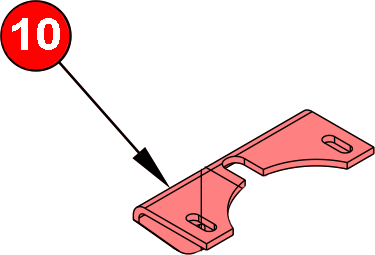

| 10 | 69918A | 1 | Brkt Elec Box Right Pntd | [] | 43503A | 1 | Outletschuko 230V 3DS (07085C, 07112A) | |

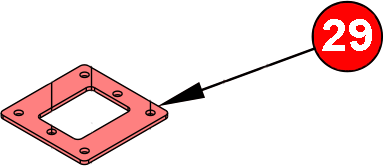

| 11 | 70157A | 1 | Label Main Power | 29 | 60708A | 1 | Plate Outlet Mounting (07082C) | |
| 12 | 70179A | 1 | Labeld.T.V. 7 Only | 30 | 77094A | 2 | Label Ground Symbol | |

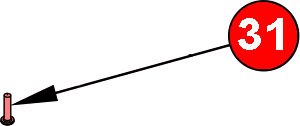

| 13 | 77370A | 1 | Label 3ds 1 | 31 | 80056A | 2 | Screw, 4-40 X 1/2 P.H. | |

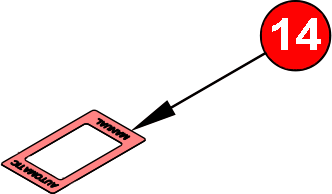

| 14 | 77372A | 1 | Label Switch AIM 3ds | 32 | 80310A | 2 | Screw, 6-32 X 1/2 Pan Hd. | |
| 15 | 920056 | 2 | Nut, 6-32 E.S.N.A. Nylock |
