3D

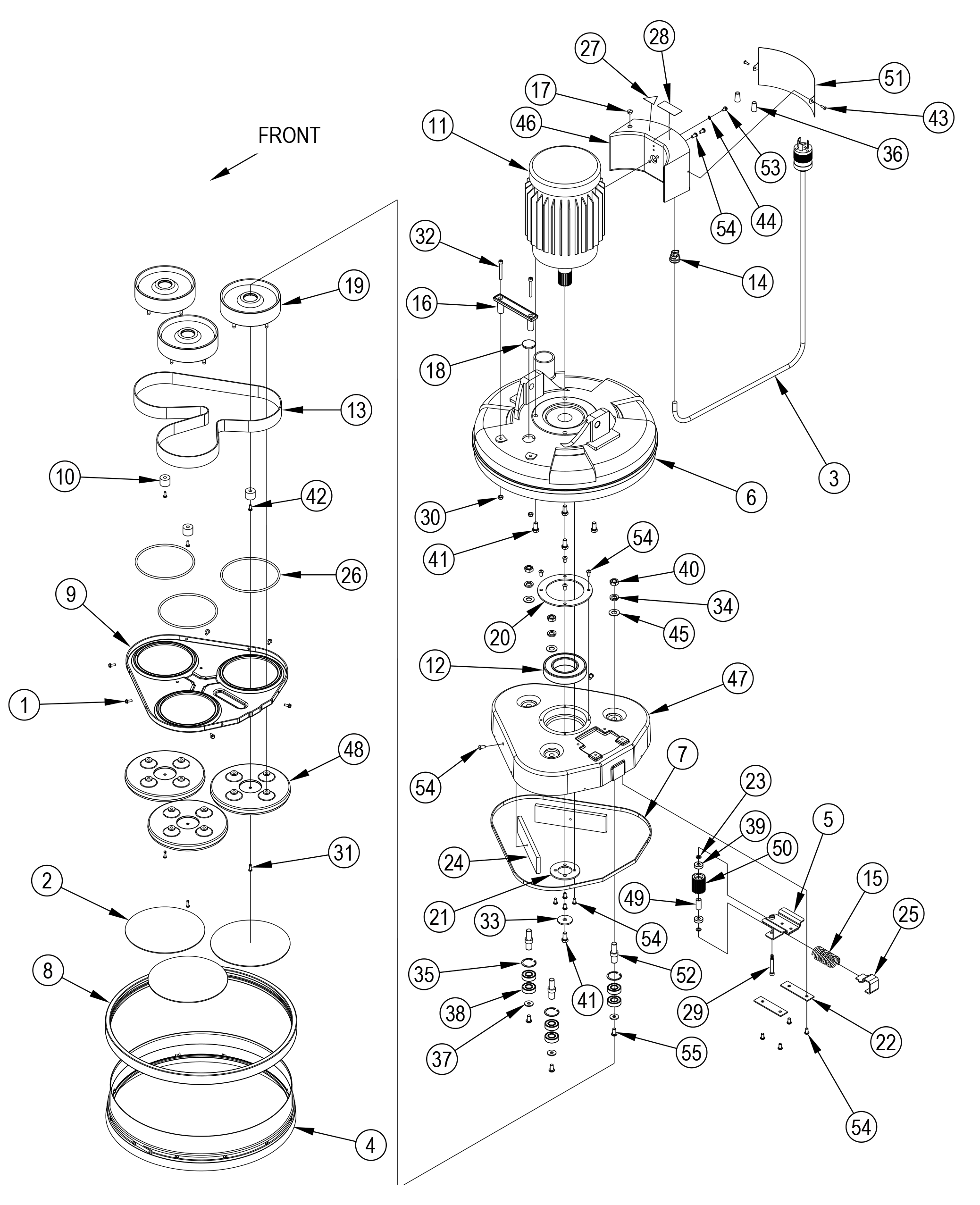

Head Assembly
Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.
part 55
part 54
part 54
part 54
part 54
part 54
part 53
part 52
part 51
part 50
part 49
part 48
part 47
part 46
part 45
part 44
part 43
part 42
part 41
part 41
part 40
part 39
part 38
part 37
part 36
part 35
part 34
part 33
part 32
part 31
part 30
part 29
part 28
part 27
part 26
part 25
part 24
part 23
part 22
part 21
part 23
part 19
part 18
part 17
part 16
part 15
part 14
part 13
part 12
part 11
part 10
part 9
part 8
part 7
part 6
part 5
part 4
part 3
part 2
part 1
ItemPart NumberQtyDescription ItemPart NumberQtyDescription
11709066Screw10 X 1/Hw S/D 2980045A1Bolt Shoulder 5/16X 1-3/4

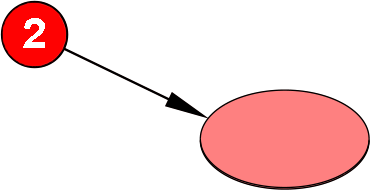

2563827563Disc 100hookit 3m 8 Cs=25ea 3081217A2Nut1/4-20 Hex Esna

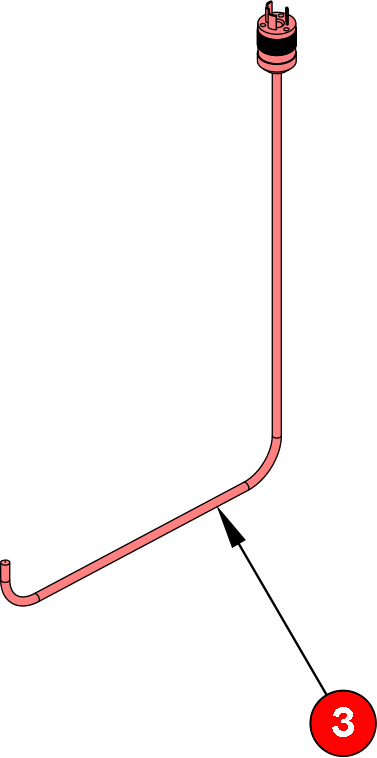

311676A1Cord Asm Set 3DS (07082C) 3183011A3Rivet Removable .180 Hole
 10029A1Cord Assembly 230V 50 Hz (07085C, 07112A) 3285743A2Screw1/4-20x2SC HD SZ

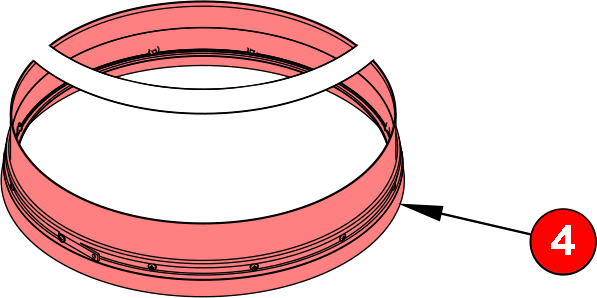

418446A1SkirtAsm 3ds 3387038A1Washer Flat 25/64 Id 1.5 Id
519022A1Tensioner Wldmtbelt 3ds 3487101A3Washer Lock 1/Norn

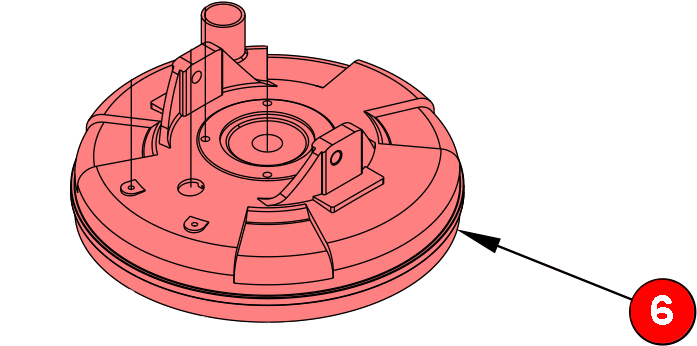

620027A1Mainframe Gray 351673123Ring, Retainer Internal

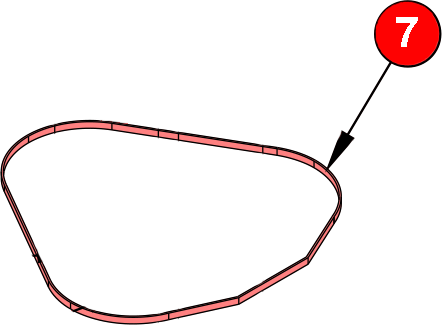

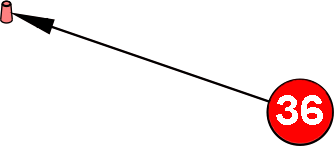

730171A1Gasket 3ds Cover 361706672Wire Connector Twist On 74b

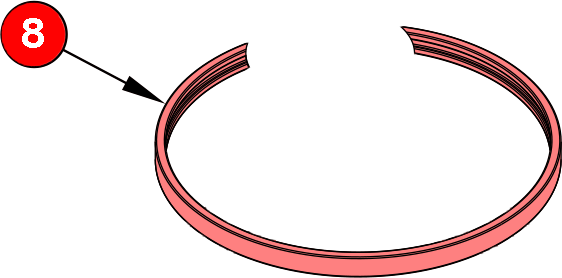

831225B1Bumperframe 20 371708603WasherFlat 5/16

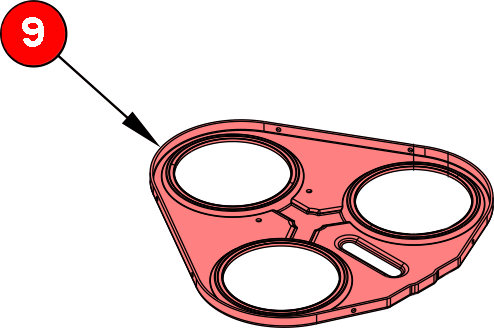

932414A1Cover 3ds 389025676Bearing Balldouble Sealed
1034403A3Gimbalrubber 1 Sander 3ds 399026482BearingBall Radial 608

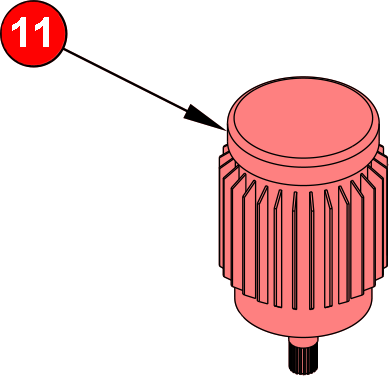

1144672A1Motor3hp 230v/60hz 3DS (07082C) 409201963Nut 1/2-13 Hex Jam
 44311A1Motor2.2 KW 230V/50Hz (07085C, 07112A) 419622445Screw3/8-16 X .75 Hex
1250758A1Bearing Ball 6212 3ds 429623503Screw 10-32 .500

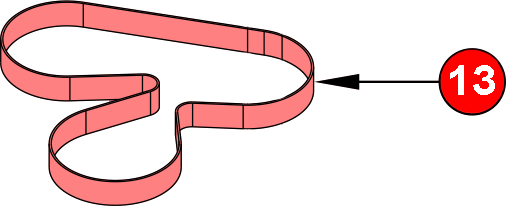

1350927A1Beltdrive 3ds Sander 439627272Screw8-32 X 1/2
1451523A1Bushing Strain Relief 449806031Washer#10 Lock External Tooth
1553410A1Springabrasivetension C-12 459806483Washer 17/32 X 1 1/16 Plain

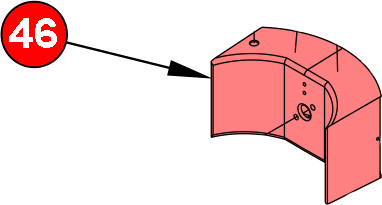

1654931A1Handle4-1/1-3/4 4622906A1EnclosureMotor Start

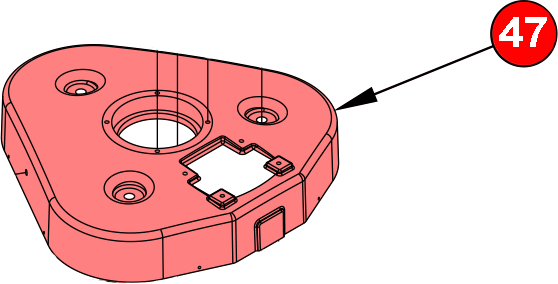

1757165A1Plug Nylon Hole 3ds 4724536A1HousingDisc
1857166A1Plug1 1/4 Finishing 4856942A3Pad3DS

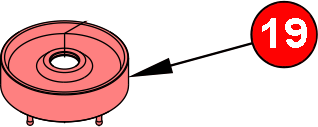

1966245A3Pulley 3ds []54608A12Grommet3DS

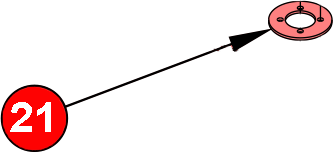

2066990A1Retainerouter Ring 3ds []30369A3Pad Sponge 3DS Sander NOTE 1
2166991A1Retainerinner Ring 3ds []37018A3Pad Foam 3DS NOTE 2
2266992A2Retainerbelt Tensioner 3ds 4958543A1SpacerSprocket
2367863A2Spacerrelease LeverB Belt S 5061914A1SprocketIdler

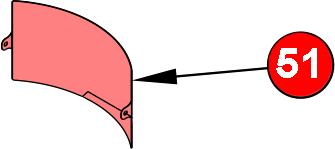

2468793A2Weightdisc Housing 3ds 5162667A1CoverEnclosure
2569191A1Tensionerbelt 3ds 5267477A3Shaft
2669662A3Sealpully 3ds Sander 5385833A110-32x3/Hw Type 23
2770044A1Label Electrical Shock 3ds 5487700A16Screw 1/4-20 X 1/B.H.
2877234A1Plate-Warning 5587701A3Screw5/16-1Bx5/8 Button Head

        NOTE 1: Only used after May 2003.
        NOTE 2: Only used before June 2003.
 Part Number Description
 674114 HoseVacuum 10
 682408 Vacuum Hose Adaptor 1½"
 639804 Wand Assemb lyCurved 1½"
 638820 ToolFeltShod 14"
 658821 Tool-Bristle Shod
 945630 BX (25) 3M 8Hookit Disc #36
 945585 DISC 3M 19X2 36-2 CS=50EA
 945633 BX (25) 3M 8Hookit Disc #60
 945634 BX (25) 3M 8Hookit Disc #80
 56382756 BX (25) 3M 8Hookit Disc #100
 945625 CS(40)7 7/B"x3/16Mesh  Disc #80
 945626 CS(40)7 7/B"x3/16Mesh  Disc #100
 945610 Bx(40)8"x2 ¾" Edger Disc Pad
