To purchase parts for the FM HDTR Floor Maintainer (Base Assembly RF062900):

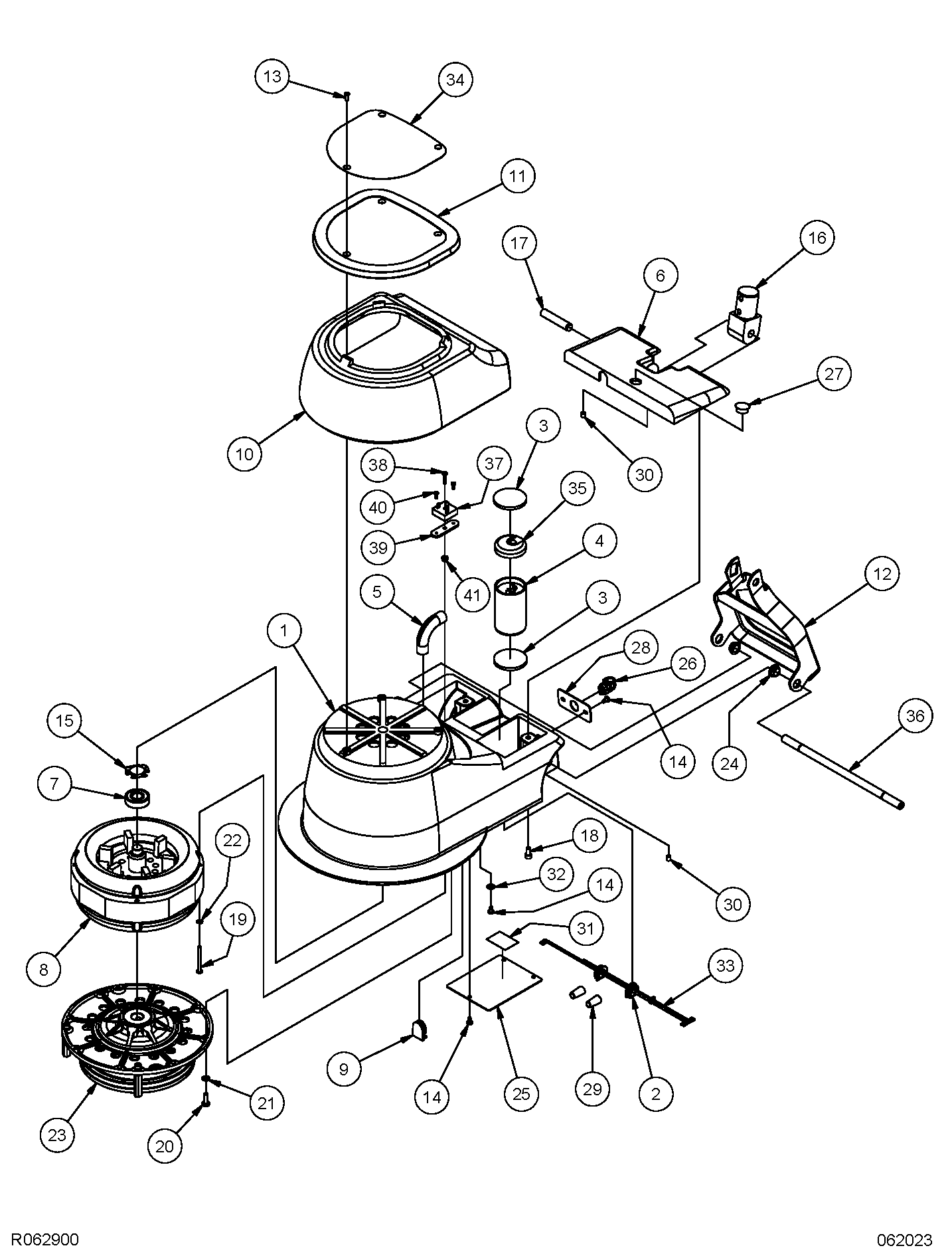

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | Qty | Item | Part Number | Description | Qty | |
| 1 | 24502C | HOUSING-MAIN FM1500-2000 | 1 | 22 | 980603 | WASHER, LK 10 EXT TOOTH | 4 | |
| 2 | 501142 | BUSHING FM | 2 | 23 | 503542 | GEAR UNIT ASM FM | 1 | |
| 3 | 502403 | FM17 CUSHION CAPACITOR | 2 | 24 | 501141 | BUSHING LINK ARM | 2 | |
| 4 | 502402 | FM17 CAPACITOR 115V | 1 | 25 | 502342 | COVER MAIN HSG BOTTOM FM | 1 | |
| 5 | 504740 | INSULATOR ELBOW FM | 1 | 26 | 857557 | STRAIN RELIEF R042 | 1 | |
| 6 | 22105A | COVER MAIN HOUSING FM | 1 | 27 | 501345 | PLUG BUTTON 25/32 FM | 1 | |
| 7 | 902550 | BEARING, BALL, 6203 | 1 | 28 | 66636A | PLATE-STRAIN RELIEF | 1 | |
| 8 | 40658A | FIELD AND ROTOR KIT | 1 | 29 | 170667 | CONNECTOR, WIRE NUT, 74B, YELLOW | 2 | |
| 9 | 506842 | PLUG FM | 1 | 30 | 962233 | SCR 1/4-20 X 5/16 ST ST KNURL | 2 | |
| 10 | 31237B | BUMPER MAIN HSG. | 1 | 31 | 509806 | WIRING DIAGRAM FM-15-17 | 1 | |
| 11 | 22106A | COVER-DRIP | 1 | 32 | 980675 | WASH- .190IDX X .406OD EX TH | 1 | |
| 12 | 500342 | ARM ADJUSTING WELDT | 1 | 33 | 40254A | HARNESS WIRE CAPACITOR FM | 1 | |
| 13 | 962727 | SCREW, 8-32 X 1/2 PN ST TP23 PH | 3 | 34 | MP498000 | PLATE, NAME, LABEL, FM | 1 | |
| 14 | 962826 | SCREW 10-24X 3/8 PN ST TP F PH | 6 | 35 | 502304 | FM17 COVER CAPACITOR | 1 | |
| 15 | 318303 | SPRING, LOAD, 76 | 1 | 36 | 507741 | SHAFT, WHEEL | 1 | |
| 16 | 509240 | TONGUE, HANDLE TUBE | 1 | 37 | AS112400 | SWITCH, START, 125V, 25A | 1 | |
| 17 | 506740 | TONGUE, HANDLE TUBE | 1 | 38 | 85614A | SCREW 8-32X3/4 PAN HD | 1 | |
| 18 | 962337 | SCREW 1/4-20 X 1/2 SC ST CAP | 5 | 39 | MP556800 | BRACKET, START SWITCH, FM | 1 | |
| 19 | 85310A | SCREW 10-24 X 2 PAN HD | 4 | 40 | 962330 | SCREW 6-32 X 3/8 PAN HD | 2 | |
| 20 | 962892 | SCREW, 1/4-20 X 3/4 PN ST | 8 | 41 | 920065 | NUT, 8-32, ESNA 22NM-82 | 1 | |
| 21 | 980614 | WASHER, LOCK, 1/4, EXT. TOOTH | 42 | MP531000 | RELAY, MOTOR, START (230V ONLY) (NOT SHOWN) | 1 |
