To purchase parts for the Phoenix Rotary Sander (Modular Head Options RF108800):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
SA040005 13" Modular Head Kit
SA040008 17" Planetary Modular Head Kit
SA040003 16" Modular Head Kit
| ITEM NO. | PART NUMBER | DESCRIPTION | QTY. |
|---|---|---|---|
| 1 | AS133200 | SHROUD, 13", MOD, ASM. | 1 |
| 2 | AS134200 | SKIRT, 13" DIA X 3"H FABRIC | 1 |
| 3 | MP565600 | DRIVER, PAD, 13, MOD | 1 |

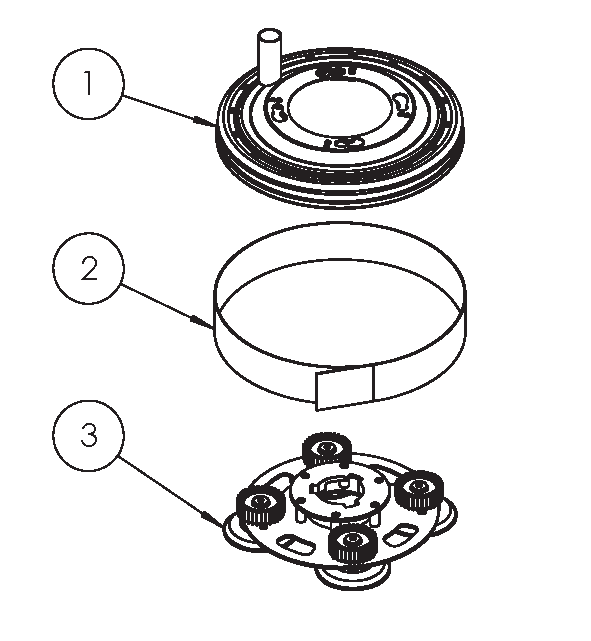

| ITEM NO. | PART NUMBER | DESCRIPTION | QTY. |
|---|---|---|---|
| 1 | AS133700 | SHROUD, 17", PLANET, MOD, ASM | 1 |
| 2 | 30725A | SKIRT RS-16DC | 1 |
| 3 | AS142400 | DRIVER, 17", PLANETARY, ASM | 1 |

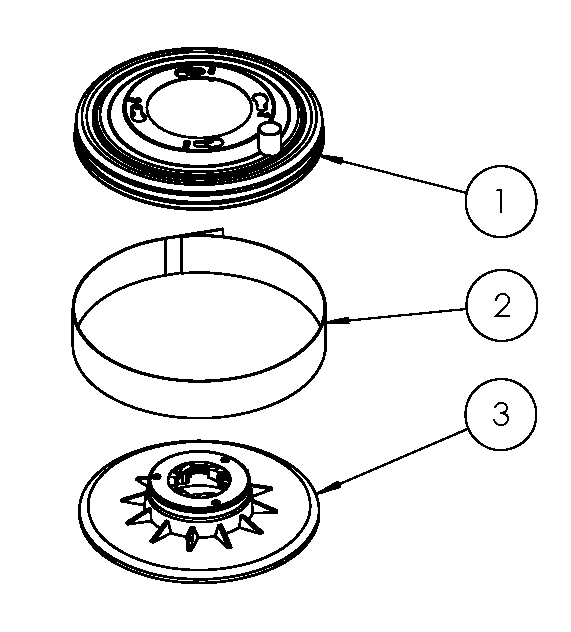

| ITEM NO. | PART NUMBER | DESCRIPTION | QTY. |
|---|---|---|---|
| 1 | AS133500 | SHROUD, 16", VAC, MOD, ASM. | 1 |
| 2 | 30725A | SKIRT RS-16DC | 1 |
| 3 | MP565500 | DRIVER, PAD, 16, MOD | 1 |
