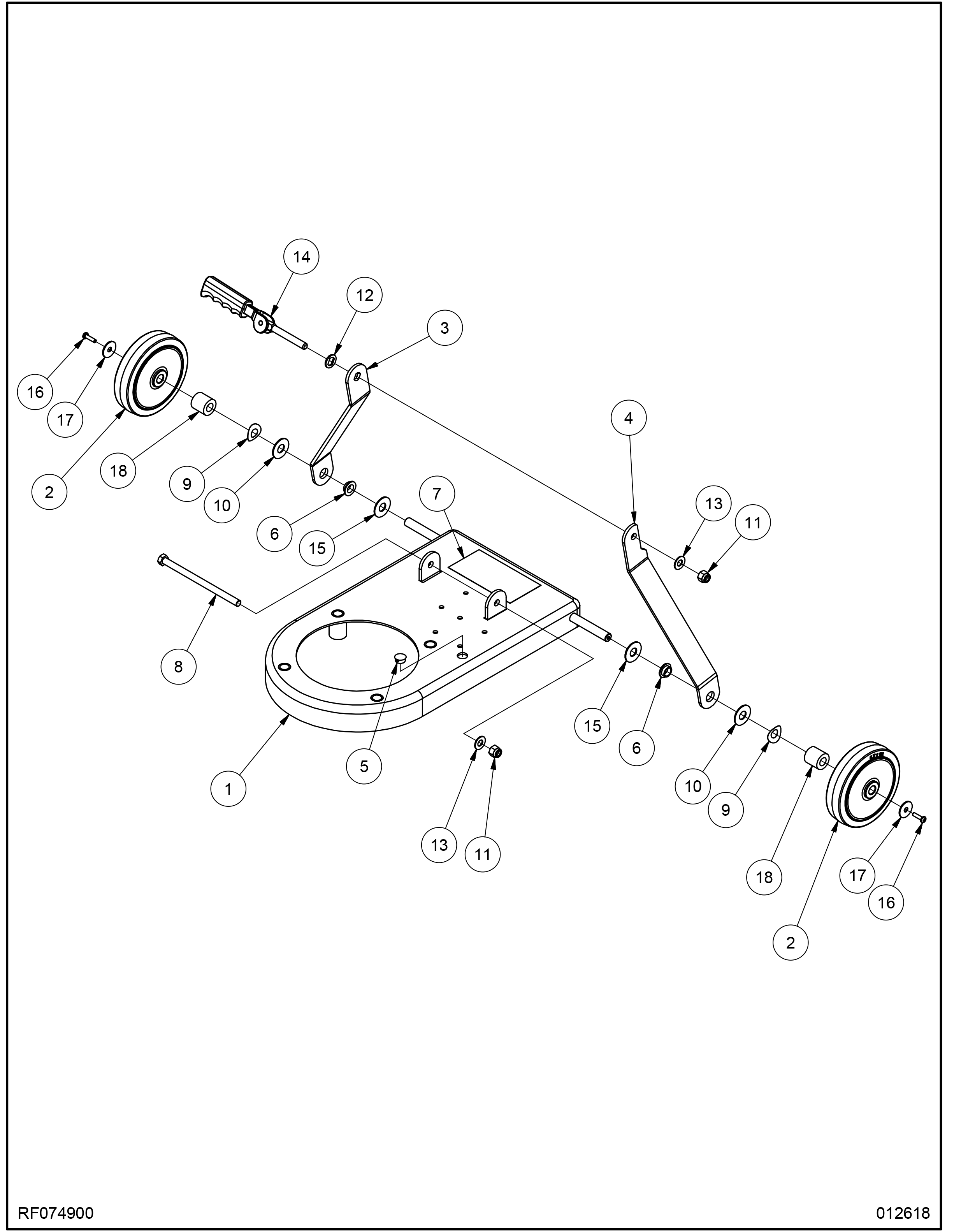

Sander 1600 Base Assembly

Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.

part 18

part 18

part 17

part 17

part 16

part 16

part 15

part 15

part 14

part 13

part 13

part 12

part 11

part 11

part 10

part 10

part 9

part 9

part 8

part 7

part 6

part 6

part 5

part 4

part 3

part 2

part 2

part 1

ITEM	PART NUMBER	QTY	DESCRIPTION		ITEM	PART NUMBER	QTY	DESCRIPTION

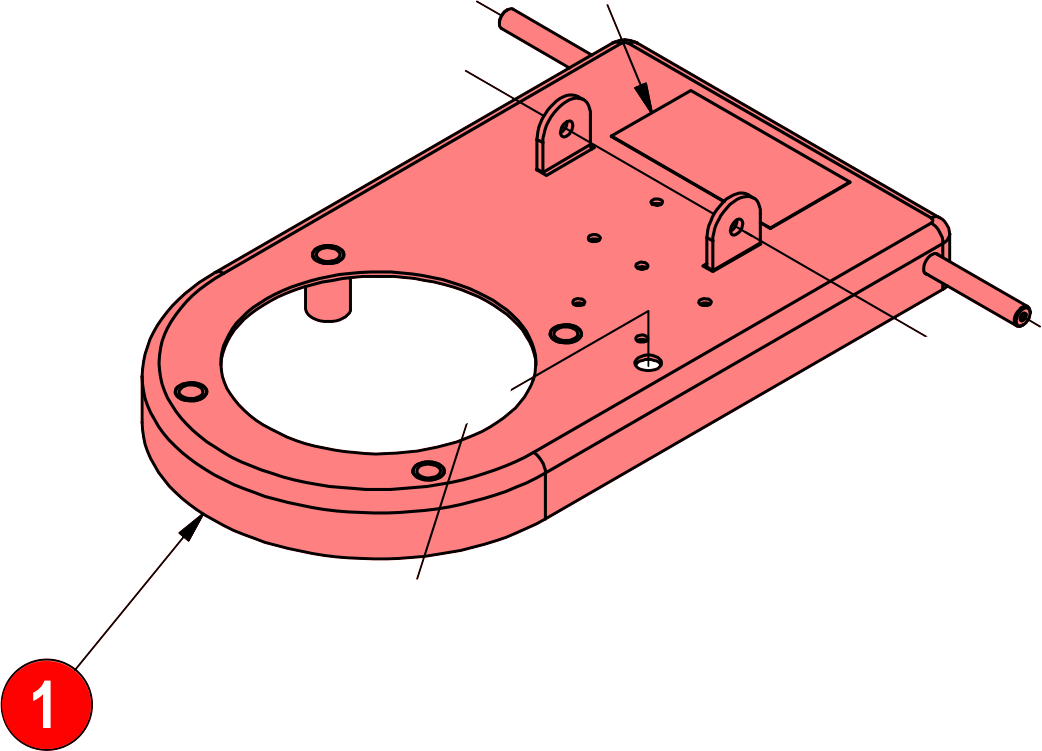

1	AS024700	1	FRAME, SANDER 1600, EPOCH, WELDMENT		10	NB034600	2	WASHER, FLAT, 1/2", SS

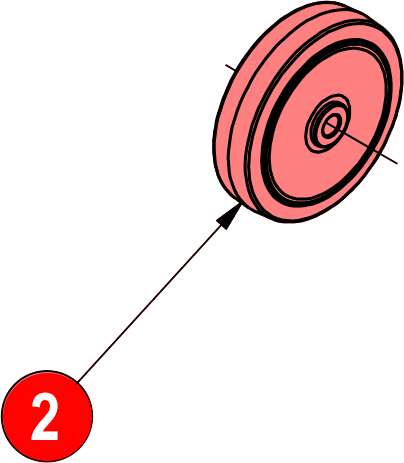

2	39857A	2	WHEEL 5 POLISHER		11	920342	2	NUT LK 3/8 -16 REG

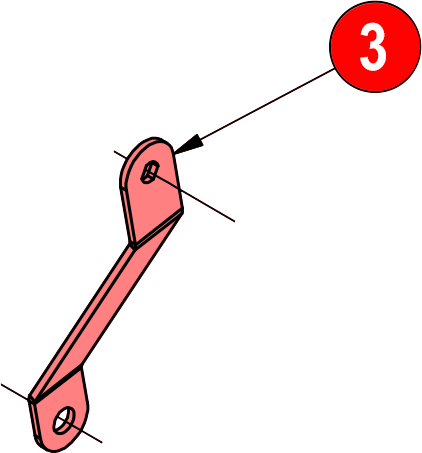

3	AS028800	1	ARM, LINK, RIGHT		12	980349	1	WASHER WEAR CAM

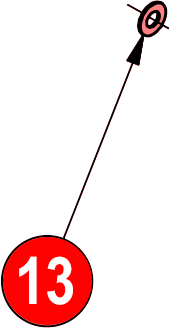

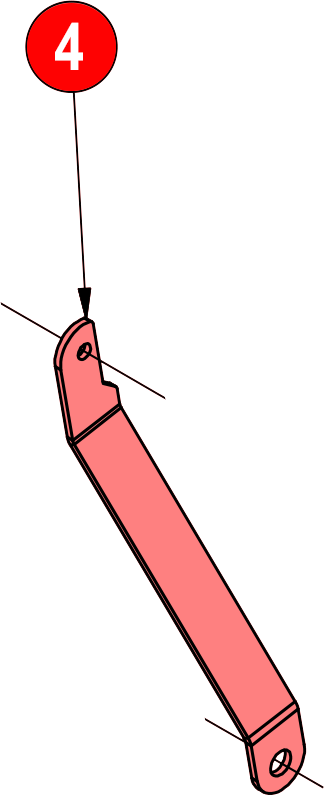

4	AS028900	1	ARM, LINK, LEFT		13	980645	2	WASHER, 3/8" SAE, FLAT

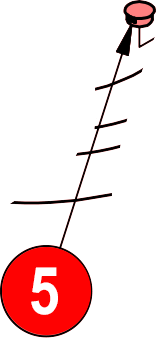

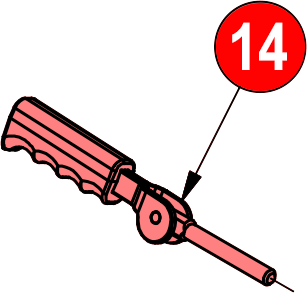

5	57120A	1	PLUG-BUTTON		14	56109699	1	CAM ASSY WITH GRIP
6	MP165400	2	BUSHING, FLANGED, BRONZE, 1/2 ID X 1/4 L		15	87607A	2	WASHER FLT 1.25X .52 X .06 NYLON

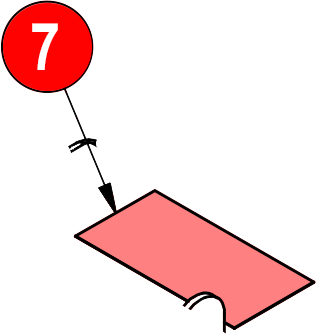

7	73285A	1	LABEL WARNING		16	85383A	2	SCREW 10-32 X 3/4 PAN HD

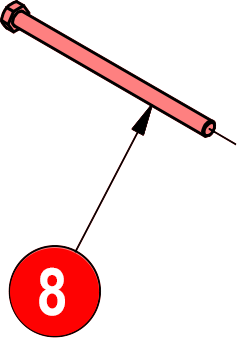

8	80087A	1	SCREW 3/8-16 X 6		17	87035A	2	WASHER 10 FENDERSS

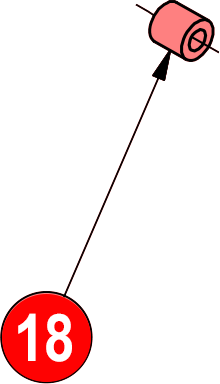

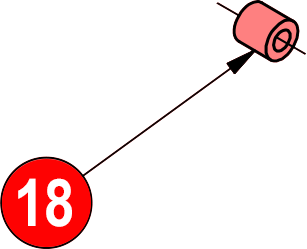

9	80295A	2	WASHER BOWED .516ID X 1.06OD		18	MP523300	2	SPACER, NYLON, 1"OD, 1/2"ID, 1"L
