To purchase parts for the AVAC 18 Vacuum (Motor Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

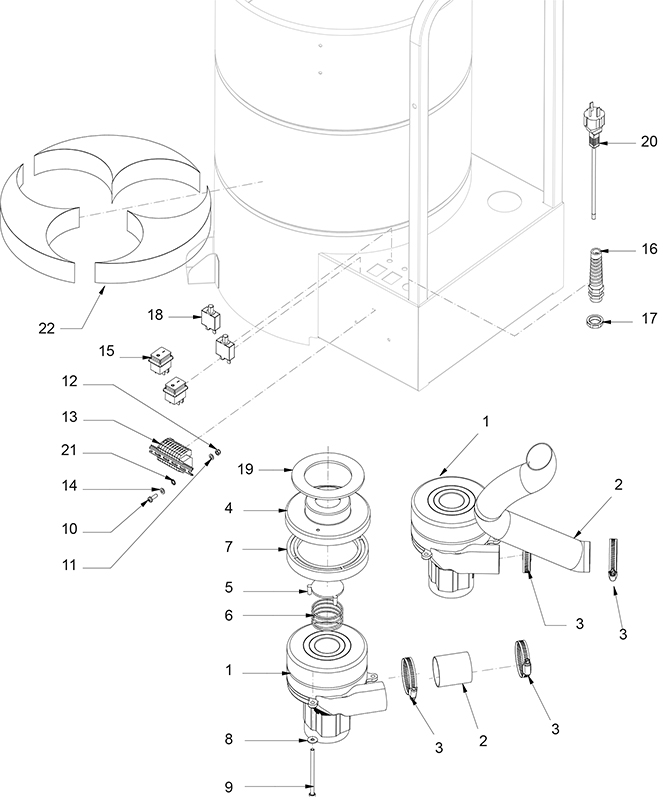

AVAC-18-vacuum-motor-assembly

ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
1TMB4420582ENGINE 120V-CL 1-800W-50Hz12TMB4167811LOCK NUT
2TMB4224922TUBE 0.50 AL MT.13TMB22537328 TERMINAL ELEMENTS+ RAIL DIN
3TMB4102874CLAMP14TMB4179872WASHER
4TMB4178932SUPPORT15TMB4176221BLACK BIPOLAR SWITCH
5TMB4178932VALVE16TMB4178261CABLE GUIDE
6TMB4177872VALVE SPRING 0.56 x 1 STAINLESS17TMB4175232RING NUT
7TMB4175646GASKET18TMB4095092CIRCUIT BREAKER
8TMB4091606WASHER19TMB4498931GASKET FILTER ASP.CARPET
9TMB4220782SCREW20TMB4472681CABLE SJTW 3X14AWG 1050 GREY PLUG USA
10TMB4088542SCREW21TMB4093341WASHER
11TMB4091502WASHER22TMB4174841SOUND ABSORBENT BASE
