To purchase parts for the HydraSand 16" Assembly:

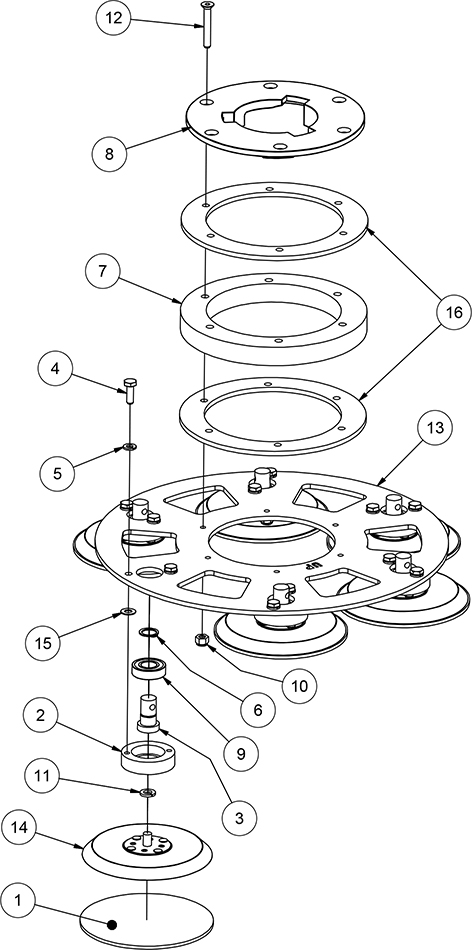

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |
| 1 | AS003500 | 6 | PAD, FOAM 5” | 9 | 56380282 | 6 | BEARING, BALL, 6002 CUSTOM | |
| 2 | AS003700 | 3 | HOUSING, BEARING, DRIVER | 10 | NB3275 | 6 | NUT, LOCK, 1/4” | |
| 3 | AS003800 | 6 | SHAFT, DRIVER | 11 | NB080100 | 6 | WASHER, .312 X 1 X .0840-.0960 | |
| 4 | NB019100 | 12 | BOLT, HEX, 1/4-20 X 3/4, GD 5 | 12 | NB071300 | 6 | SCREW, SOCKET, FLAT, CS, 1/4-20 x 2”, SS | |
| 5 | NB6110 | 12 | WASHER, LOCK, 1/4” | 13 | AS003600 | 1 | PLATE, DRIVER | |
| 6 | NB070200 | 6 | RING, RETAINING, EXT | 14 | AS003400 | 6 | PAD, DRIVER, 5”, ASM | |
| 7 | AS004800 | 1 | RING, ISOLATOR | 15 | NB071400 | 6 | WASHER, GROUND, 1/4” | |
| 8 | AS004600 | 1 | PLATE, CLUCH, DRIVER | 16 | AS004700 | 2 | RING, SPACER |
