FloorCrafter Belt Tensioner Assembly

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

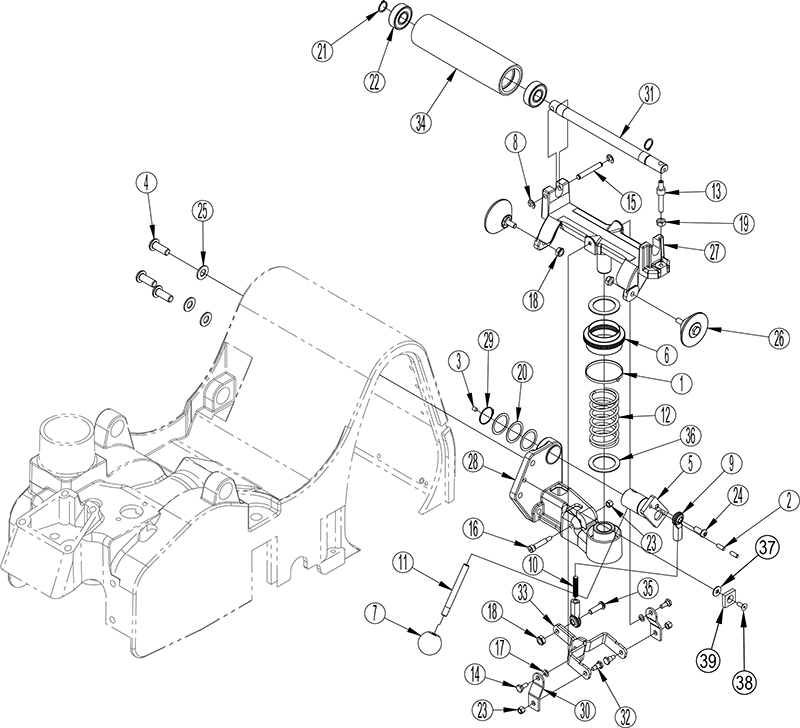

FloorCrafter-Belt-Tensioner

Item	Part Number	Qty	Description	Item	Part Number	Qty	Description
1	699202	1	Wire Tie	22	902567	2	Bearing Balldouble Sealed
2	925546	2	Pin-3/16x1/2 Roll	23	920296	3	Nut 10-24 Elastic Stop
3	962165	1	Scr 10-24x 3/16 St St Cuppt	24	962822	1	Screw 1/4-20 X 5/8 Bt St Soc
4	962870	3	Scr 3/8 -16x1 Bt St Allen	25	980645	3	Washer, 3/8” S.A.E. Flat
5	10247A	1	Cam Release Weldment	26	14704A	2	Guide Roller Asm C-12
6	30087A	1	Boot-Belt Tensioning Asm	27	20018A	1	Carriage Tension Roller
7	51099A	1	Knob Release	28	20020A	1	Support Tension Asm
8	51211A	2	E-Ring .25 Dia	29	51277A	1	Ring,Retaining,Ext.,1.00
9	51216A	2	Rod End Female	30	60382A	2	Link, Draw
10	51221A	1	Link Connecting	31	60383A	1	Shaft Tension Roller
11	60364A	1	Lever Tension Release	32	60391A	2	Screw, Link Retaining
12	60379A	1	Spring Abrasive Tension	33	60393A	1	Lever Draw
13	60381A	1	Adjuster Tracking	34	AS069400	1	Roller Tension 8” Belt Sander
14	60395A	2	Screw Link Retaining	35	80139A	1	Scr, 1/4-20 X 7/8 Button Hd
15	60396A	1	Pin Roller Shaft	36	80422A	2	Wear Washer
16	80020A	1	Bolt Shoulder 1/4 X 1	37	87007A	1	Washer-Control Shaft Eccentric
17	80140A	2	Washer 5mm Bowed				(only used prior to March 2009)
18	81217A	3	Nut, 1/4-20 Hex Esna	38	962505	1	Scr 1/4 -20x 5/8 Sf St Cap
19	81303A	1	Nut 1/4-28				(only used prior to March 2009)
20	87052A	3	Washer Flt 1.25x1.00x.020nylon	39	60906A	1	Block Wear Ez-8
21	747380	2	Ring Roller Retaining				(only used prior to March 2009)
