To purchase parts for the FloorCrafter (Drum Assembly):

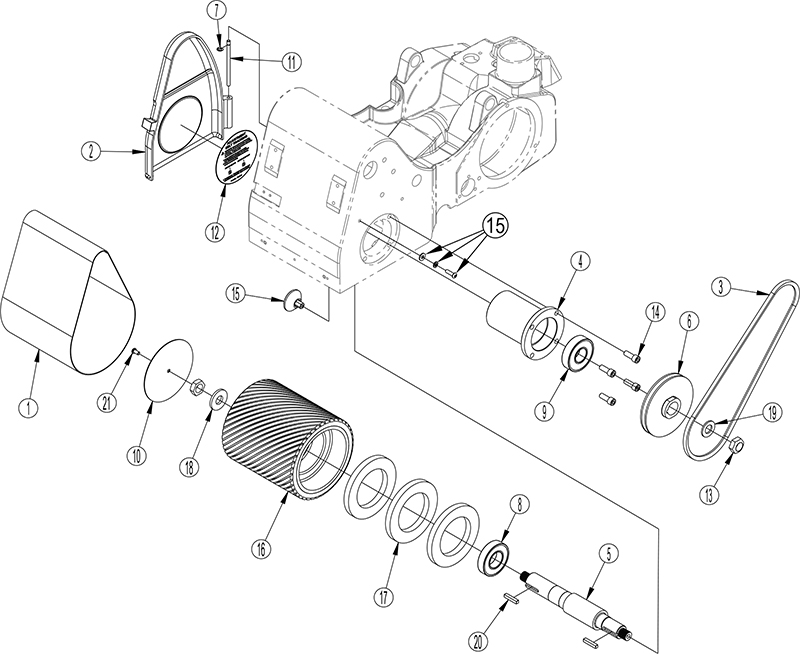

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".


ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
1563827541Beltabrasive100grt 8sndrs Cs=51160389A1Pin Hinge
220021A1Access Door (07014A, 07202A, 56380917)1270236A1Label Belt Tracking
20021B1Access Door, Blk (07014B)1381106A2Nuthex Lock3/4-10
351024A1Belt Drive1486110A4Screw-3/8-16 X 1-Socket Head
451051A1Bearing Carrier1510958A1Roller Asm.
551052A1Shaft Arbor1620015A1Wheel Contact
651053A1Pulley Drum1730675A3Dust Shield
751211A1E-Ring .25 Dia1860377A1Retainer Contact Wheel
851223A1Bearing Ball1960378A1Retainer Drum Pulley
951224A1Bearing Ball2060394A2Key Square .250 X 1.38
1060376A1Plate Drum End2187700A1ew 1/4-20 X 1/2 B.H.
