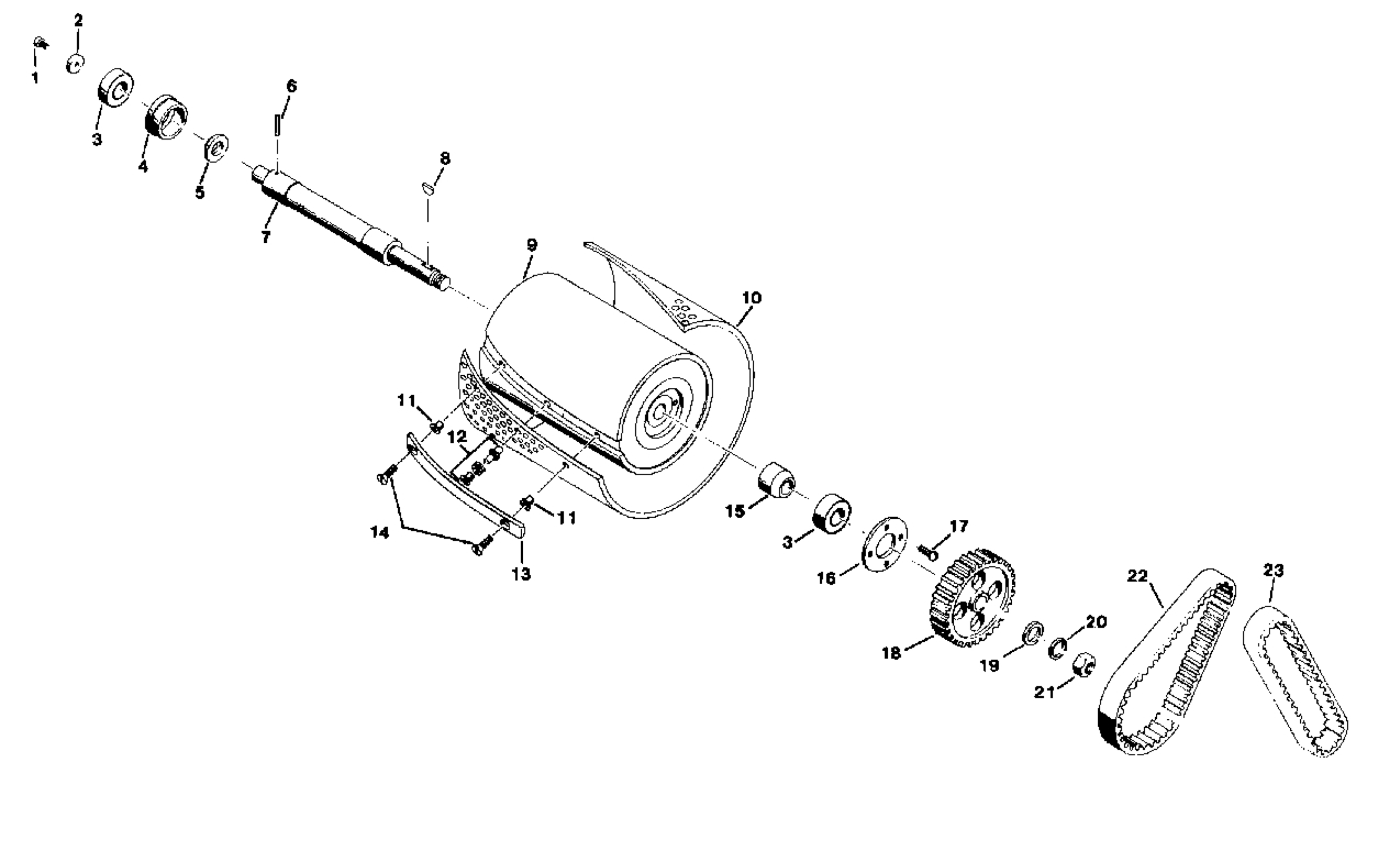

| Item | Part Number | Qty | Description | | Item | Part Number | Qty | Description |
| 1 | 962411 | 1 | SCR 1/4 -20X 3/4 SF ST CAP | | 13 | 50609A | 1 | CLAMP PAPER DU-8R TWO HOLE |
| 2 | 162006 | 1 | CLAMP BEARING 95 | | 14 | 57911A | 2 | SCREW12-24X11/2 FILLISTER HD. |
| 3 | 902550 | 2 | BEARING BALL-6203 | | 15 | 168209 | 1 | SPACER DRUM BEARING PULLEY E****OBSOLETE**** |
| 4 | 161108 | 1 | BUSHING DRUM BEARING 57 | | 16 | 162023 | 1 | CLAMP FAN BRG DU8 |
| 5 | 168206 | 1 | SPACER DRUM BRG WALL END | | 17 | 962345 | 4 | Screw - #10-24 x 3/8 Rd. Hd. Sems |
| 6 | 925113 | 1 | PIN-DOWEL 1/4X3/4 TYPE 4 | | 18 | 166916 | 1 | PULLEY DRUM DU8/DU8R |
| 7 | 167716 | 1 | SHAFT DRUM DU8/DU8R | | 19 | 980648 | 1 | WASH-17/32 ID X 1&1/16 OD PLN |
| 8 | 915028 | 1 | KEY 1/8 X 5/8 WDRF 5 | | 20 | 980626 | 1 | LOCKWASHER LIGHT SERIES 1/2 |
| 9 | 162532 | 1 | DRUM ASM COMPLETE DU8R | | 21 | 920132 | 1 | NUT-1/2-20 HEX JAM |
| 10 | 162312 | 1 | 237 1 COVER DRUM | | 22 | 903260 | 1 | BELT DRUM DU8 |
| 11 | 164607 | 3 | INSERT DRUM THREADED DU8-R | | 23 | 903273 | | BELT FAN DU8/R |
| 12 | 56828A | 1 | PIN ASM DRUM DU8R | | | | | |
