To purchase parts for the American 12 (Base Assy Models 07044A, 07049A):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

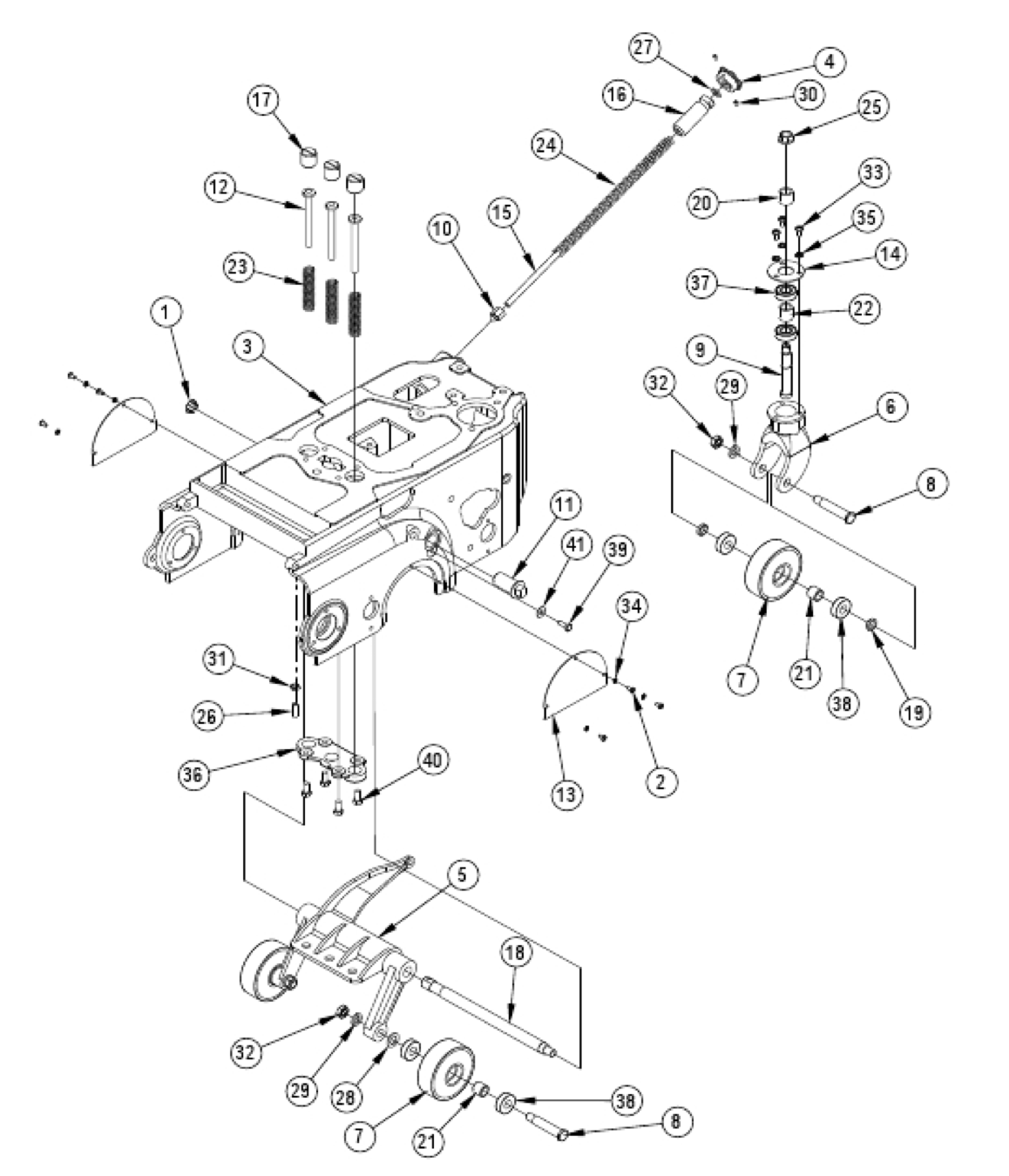

clarke-american-12-base-assembly-2

Base Assy [Models 07044A, 07049A]
ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
15013451PLUG BUTTON 25/32 FM2267821A1SPACER DRUM SANDER
29620156SCREW 10-24 X 3/8 PN ST PH2367906A3SPRING AMERICAN 8/12
323406A1FRAMEMAIN AMERICAN 122467907A1SPRING DRUM PRESSURE AMERICA
425200C1KNOB HAND - BLACK2581209A1NUT LARGE FLANGE 1/2-13
525600A1LEVER-REACH2686201A1SCR 5/16-18X1 ST ST CUP PT
629403C1YOKE WHEEL - BLACK2787000A1WASHER .39X.75X.09 FLAT ST
759928A3WHEELSTEEL AM 8&122887003A2WASHER .59X1.00X.09 FLAT ST
860101A3AXLE2987101A3WASHER LOCK 1/2 NOM
960715B1BOLTPIVOTAMERICAN 8 & 123088502A2SET SCREW-10-24X3/8 CONE POINT
1062000A1NUT-END319201601NUT-5/16-18 HEX JAM
1162801A1ECCENTRIC-CONTROL SHAFT329201963NUT-1/2-13 HEX JAM
1266123A3PLUNGER339628233SCR 1/4-20 X 1/2 PN ST PH
1366628C2COVER TRUCK WHEEL349806506WASH .19 x .34 x .04 LOCK
1466913A1RETAINER BEARING359806573WASHER LOCK 1/4 STD
1567109A1ROD-PILOT3626502A1PLATE-PLUNGER SPRING
1667309A1SCREW DRUM PRESSURE ADJ. AME3751112A2BEARING 6202
1767315A3SCR3851225A6BEARING BALL 6202 2RS
1867416A1SHAFT-LEVER3985806A1SCREW 1/4-20 X 3/4 HX SZ CAP
1967810A2SPACER4085811A4BOLT 5/16-18 X 3/4 HX HD
2067814A1SPACER4187007A1WASHER-CONTROL SHAFT ECCENTRIC
2167817A3SPACER
