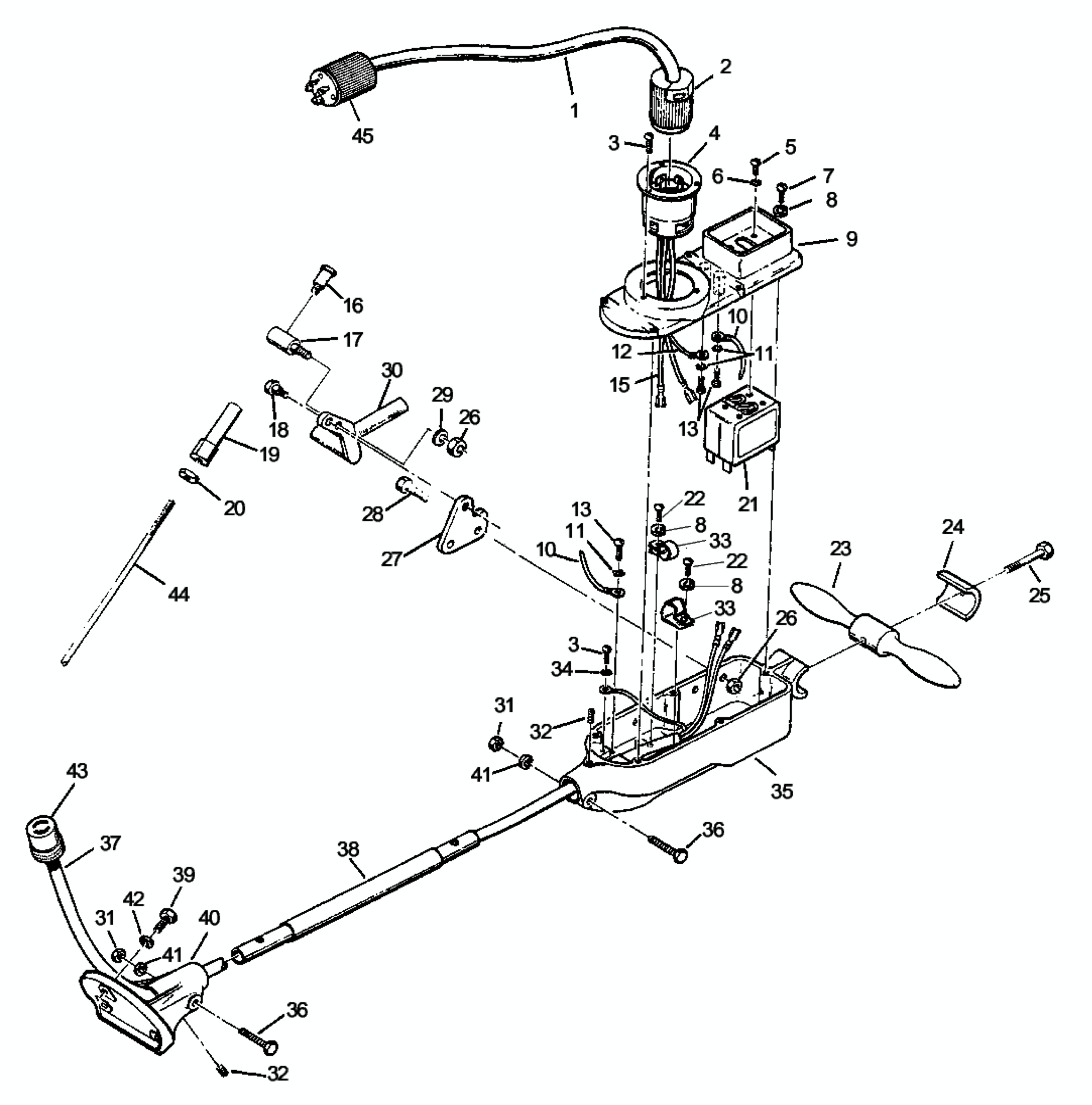

To purchase parts for the American 8 (Handle Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

american-8-handle-assembly

ItemPart NumberQtyDescriptionItemPart NumberQtyDescriptionItemPart NumberQtyDescription
11Cord Set1766151A1PIVOT CONTROL ROD3286200A2SCR 3/8 -16X 5/8 ST ST DOGPT
241706A1CONNECTOR ELECT. NEMA L6-20R18NB0712001SCREW, SHOULDER, 1/2" X 5/8" X 3/8-163351074A2CLAMP CABLE
39620654SCREW 8-32 X 1/4 PN ST PH1967129A2ADJUSTERCONTROL ROD8 BELT S349806211WASHER 8 EXT. TOOTH PLTD
443501A1INLETFLANGED NEMA L6-20P209201481NUT 3/8 -16 HEX JAM3520704C1SWITCH BOX - BLACK
59620704SCR 6-32X 1/4 RD P ST MACH2141411A1CIRCUIT BREAKER 30 AMP3685816A2SCREW 5/16-18 X 1 3/4 HX HD
69806074WASHER 6 EXT TOOTH PLTD2285517A2SCREW 10-24X1/2 PN SB TP-T PH3741917A1CORD-INTERCONNECTING
79627945SCREW 10-24X1 PN ST PH2364405A1HANDLE-STEERING3866116C1HANDLE PIPE- BLACK
89806507WASH .19 x .34 x .04 LOCK2421904C1CLAMP STEERING HANDLE - BLACK399622883SCREW 3/8-16 X 1.0 HX ST CAP
922127C1COVER SWITCH BOX - BLACK2585818A1SCREW5/16-18 X 2 1/2 HX HD4021105C1HANDLE MOUNT - BLACK
1048901A1WIRE ASSEMBLY269202842NUTSTOPELASTIC1/4-20HEAVY419806522WASHER LK 5/16 REGPLTD
119806993WASHER SH 1210-002766694A1PLATECONTROL LEVERPNTD8 BE429806383LOCKWASHER 3/8 LT SPRING TYPE
1248900A1WIRE ASSY2885393A2SCREW 10-24 X 1/4 PN SZ PH4341707A1CONNECTOR ELECT. NEMA L6-30R
1385393A3SCREW 10-24 X 1/4 PN SZ PH299806461WASHER 1/4 SAE FLAT PLTD4467143A1ROD CONTROL AM-8
1549023A2WIRE ASSEMBLY3025602A1LEVER CONTROL AM-8/124545608A1PLUGELECTRICAL NEMA L6-20P
1680021A6BOLT SHOULDER 3/8 X 5/8319202563NUT-5/16-18 HEX563806391DECAL-PROP 65
