EZ-8 Base Assembly

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

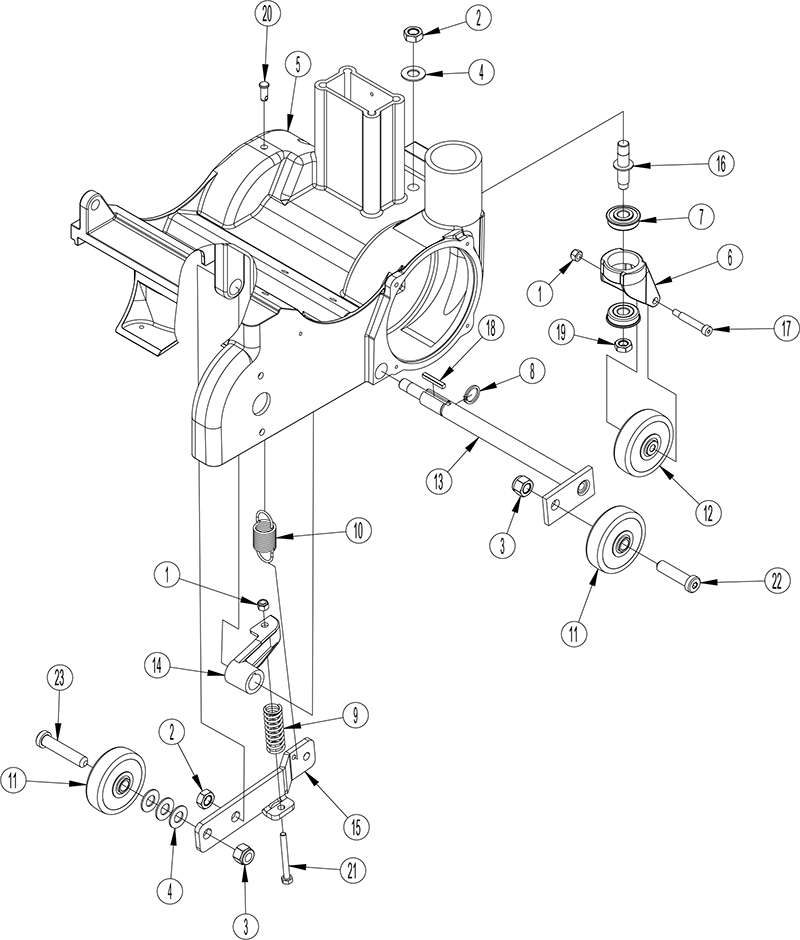

EZ-8-base-assembly

Item	Part Number	Qty	Description	Item	Part Number	Qty	Description
1	920284	2	Nut Stop Elastic 1/4-20 Heavy	13	60166A	1	Axle, Truck
2	NB003100	2	Nut 1/2-13 Hex Jam	14	60434B	1	Arm, Truck Level
3	920365	2	Nut 1/2-13 Nylock	15	60435A	1	Arm, Truck Lift
4	980648	4	Washer 17/32 X 1 1/16 Plain	16	67468A	1	Shaft Caster
5	25903A	1	Mainframe Ez-8	17	80012A	1	Bolt Shoulder 5/16 X 1 1/2
6	29405A	1	Yoke, Caster Ez-8	18	80501A	1	Key Mir Shaft-3/16sq X 1 1/41
7	51194B	2	Bearing, Flanged 1.375x.500x.312	19	81307A	1	Nut7/16-14Hex Jam Ez-8
8	57423A	1	Retaining Ring External Sh .75 Heavy	20	82504A	1	Pinclevis5/16 X 3/4
9	58698A	1	Spring Compression Truck Level Ez-8	21	85835A	1	Screw 1/4-20x2.50 Hhms
10	58699A	1	Spring Tension Drum Pressure Ez-8	22	86113A	1	Screw 1/2-13x2.00 Low Head Soc Cap
11	59945A	2	Wheel Truck	23	86114A	1	Screw 1/2-13x2.50 Low Head Soc Cap
12	59960A	1	Wheel Caster
