To purchase parts for the Clarke Sander 1600 Model 07100A (Gearbox Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

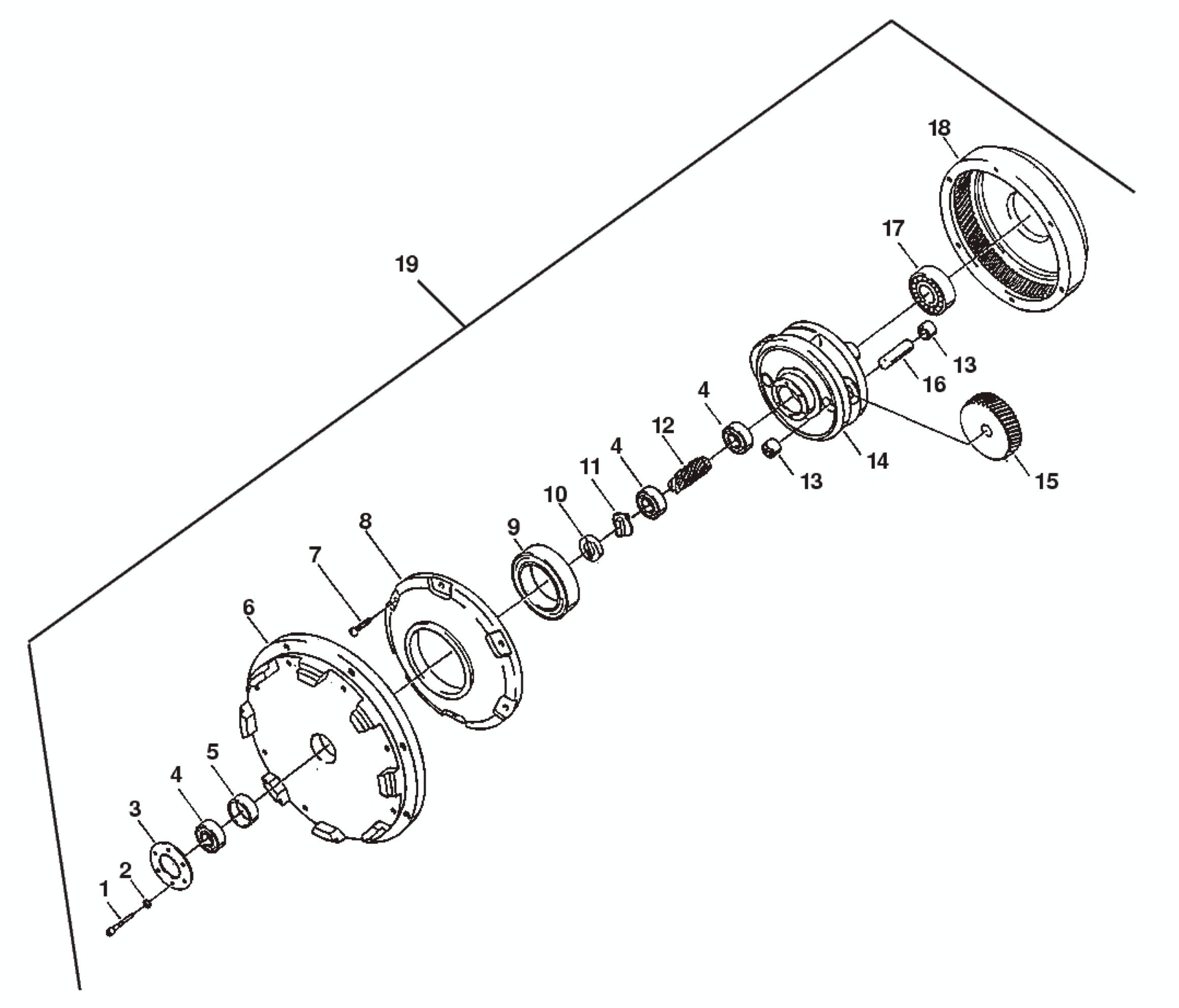

clarke-sander-1600-gearbox

ItemPart NumberQTYDescriptionItemPart NumberQTYDescription
19629666SCREW 10-32 X 1 1/4 SOCKET114424731COUPLING DRIVE SANDER 16/VP/
29806506WASH .19 x .34 x .04 LOCK1258313A1GEARPINIONGEARBOX FOR 45023
356922A1PLATERETAINERGEARBOX FOR 45139027376BEARING NEEDLE 1/2X11/16X3/8
49026063BEARING BALL 60021554408A3GEARPLANETGEARBOX FOR 45023
558520A1SPACERSLEEVEGEARBOX FOR 4501658312A3SHAFTPLANETGEARBOX FOR 4502
79627946SCREW 10-24X1 PN ST PH179025731BEARING BALL-6204
854858A1HOUSING COVERGEARBOX FOR 4501854856A1DRIVE HSGF/44635A G/RVP/C LI
99027361BEARINGBALL-6010W/SNAP RING1950979A1GEARBOX 10 TO 1 SANDER
1058314A1SHAFT RETAINERGEARBOX FOR 450503802GREASE-14 OUNCE TUBE
