To purchase parts for the Clarke Sander 1600 Model 07100A (Main Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

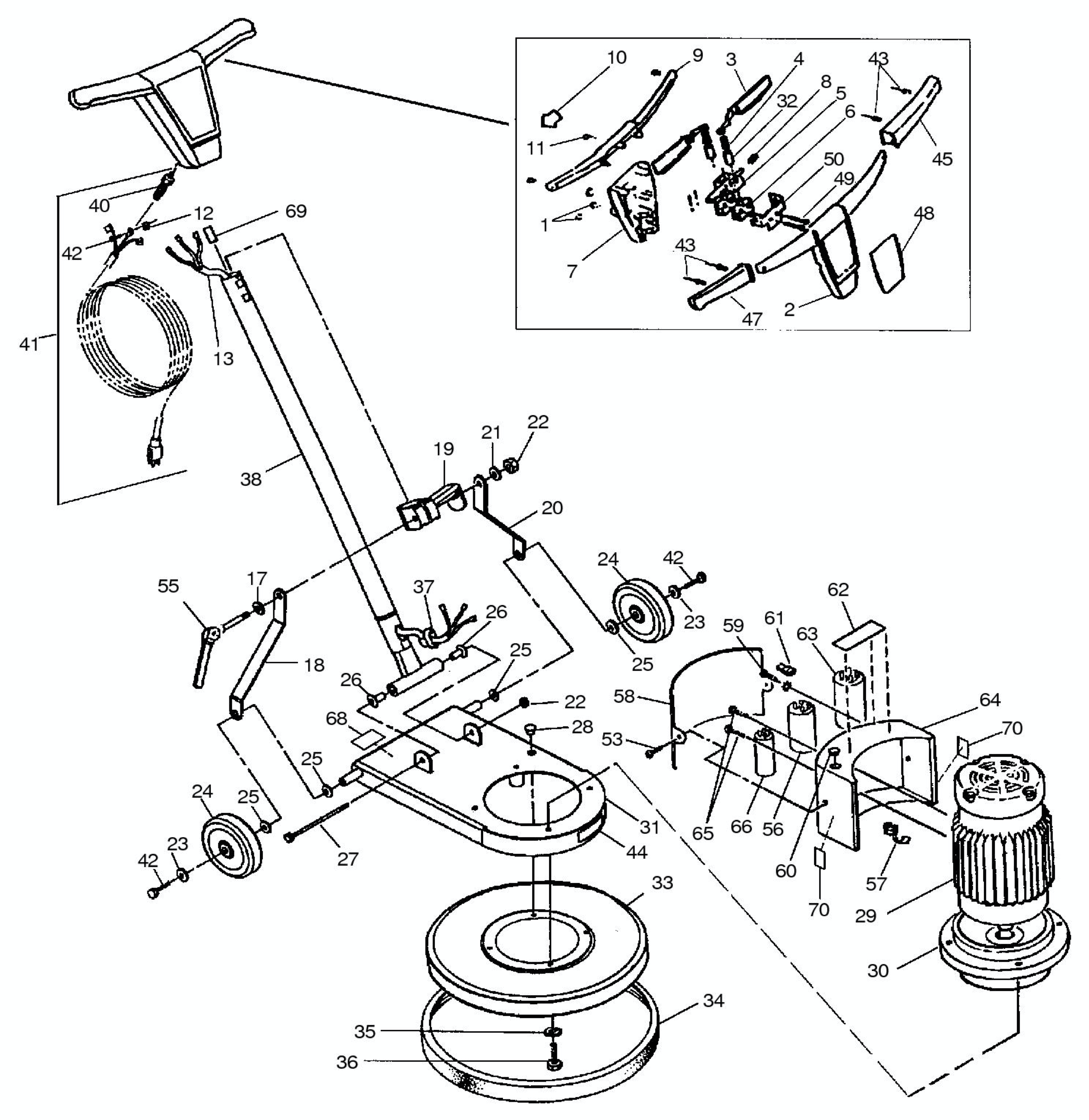

clarke-sander-1600-main-assembly

ItemPart NumberQTYDescriptionItemPart NumberQTYDescriptionItemPart NumberQTYDescription
19622899SCREW 1/4-20 X 3/4 SOCKET HD2940138A1MOTOR 1.5 HP SANDER5751523A1BUSHING STRAIN RELIEF
224508A1HOUSING-SWITCH FRONT3050979A1GEARBOX 10 TO 1 SANDER5862667A1COVERENCLOSURE OBS-18
350514A2Thru Bolt3150986A1FRAME MAIN SANDER5985833A1SCREW MACHINE 10-32 TYPE 23
45083402SPRING-SWITCH LEVER FM325002412ADAPTER SWITCH FM6057165A1PLUG NYLON HOLE 3DS
538004A1STOP-SWITCH INTERLOCK3350987A1SHIELD BRUSH 16 GREY611706672CONNECTORWIRE NUT 74B-YELLOW
69116892PLUG FEMALE TWIST LOCK 9033450782A1BUMPER SHIELD 16 C2K6277195A1DECAL-UL WARNING
722109A1COVER-SWITCH HOUSING359806524WASHER LK 5/16 REGPLTD6341312A1CAPACITOR START 400-480MFD125V
867900A1SPRING-SWITCH LEVER3685817A4SCREW5/16-18 X 2.0 HEX HD GR56422906A1ENCLOSUREMTR STRPNTD OBS-18
924507A1HOUSING HANDLE/SWITCH FM 1503750796A1BUSHING CORD C2K659628922SCR 1/4 -20X 3/4 PN ST
104451781LABEL-INTER LOCK3853742A1TUBE HANDLE 1600 SANDER6647409A1SWITCH STARTER50A EZ-8 ONLY
119623911SCREW 10-24X1 SC ST CAP3942207A1CORDSET ROUGH NEMA 5-15/146873285A1LABEL-WARNING
129207221NUT 10-32 ELASTIC STOP ZN.PL.4050797A1RELIEF STRAIN C2K6950930A1CORD RETAINER C2K
1340927A1CORD INTERCONNECT419082751CORD ASM EXT. 50 FM1500-1707077234A2LABELWARNINGHEAVY OBJECT
179803491WASHER WEAR CAM4285383A3SCREW 10-32 X 3/4 PAN HD563806391DECAL-PROP 65
1852348A1LINK ARM RIGHT439301084RIVET RED 1/8X3/837007APAD DRIVER-15 SUPERGRIP/SHWRF
1950781A1CLAMP HANDLE C2K4470499A1LABEL CAS460215ADAPTER ASM SANDING 15 3/4
2052349A1LINK ARM LEFT4534612A1GRIP HANDLE LEFT FM POLISHE674117HOSE-1 1/2 IDX50 GRAY
219806451WASHER 3/8 FLAT SAE4682100A1LOCKNUT 1/2 CONDUIT632418CUFF HOSE 1 1/2 X 1 1/2
229203422NUT LK 3/8-16 REG4734613A1GRIP HANDLE RIGHT FM POLISH682408HOSE-CONNECTOR 1 1/2 TB60/80
2387035A2WASHER 10 FENDERSS4871141A1LABEL HANDLE 1600 SANDER639804WAND ASSEMBLY CURVED 1 1/2
2450793A2WHEEL 5 C2K W/SPACER4984807A2SCREW 6-32 X 1 5/8 PAN HD638820TOOL-FELT SHOD 14 1 1/2
2587050A2WASHER FLT 1.0 X .63 X .06 NYL5061120A1BRACKET-SWITCH STOP674114HOSE VACUUM 1.5 X 10
2650794A2BUSHING NYLON C2K539627272SCREW 8-32X 1/2 PN ST TP23 PH634118HOSE VAC 15X1 1/2
2780087A1SCREW 3/8-16 X 655561096991CAM ASSY WITH GRIP68805AWEIGHTMACHINE S-16
2857120A1PLUG-BUTTON5641311A1CAPACITORRUN25MFD 370V
