To purchase parts for the AVAC 12 Vacuum (Filter Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

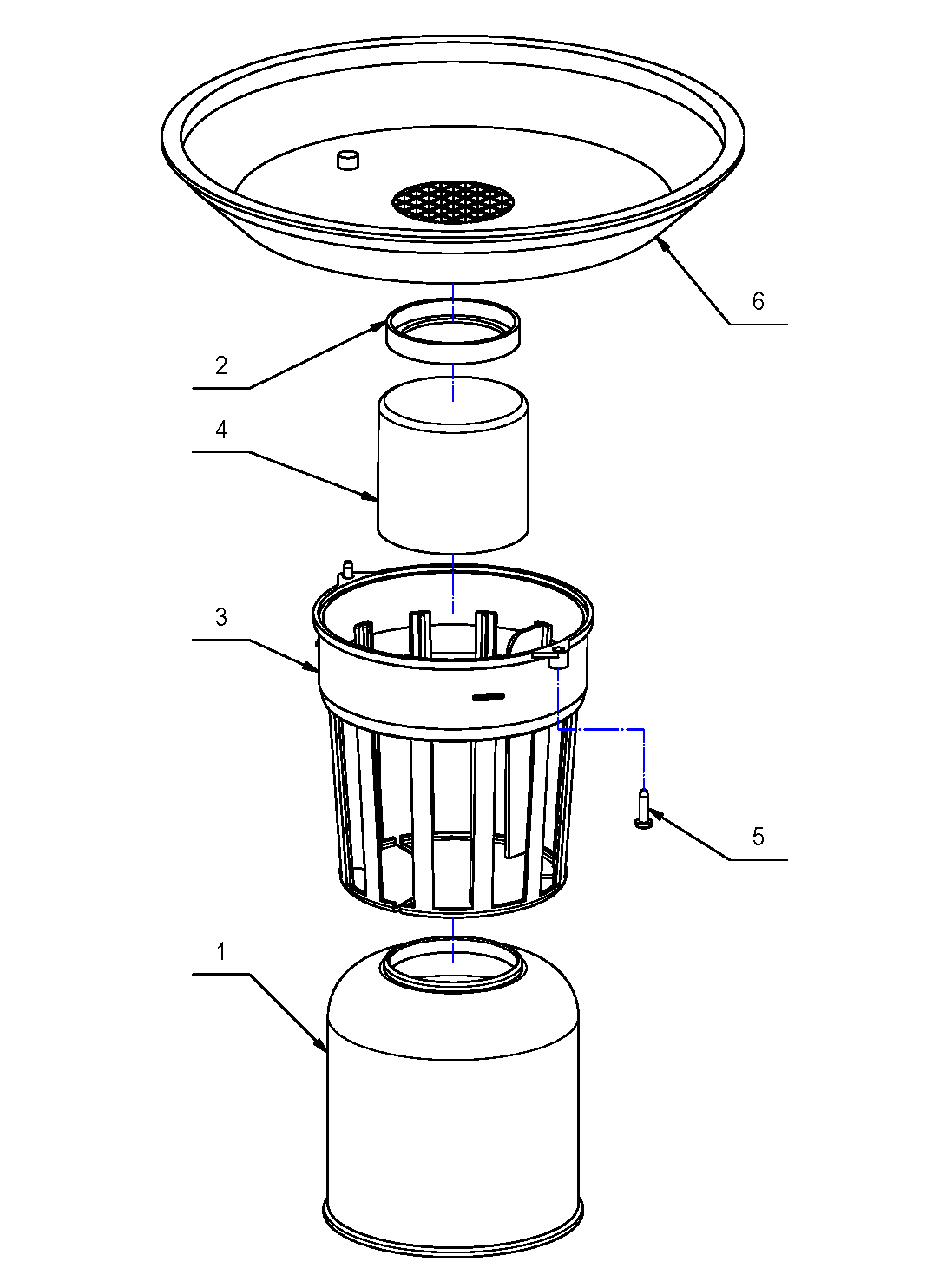

AVac12_Filter Assembly Diagram

ItemRef. No.DescriptionQty
1TMB405429FILTER, FOAM1
2TMB405946SEAL, FLOAT1
3TMB417138BASKET, PLASTIC1
4TMB417501FLOAT, WHITE1
5TMB418279SCREW, SELF-TAPPING, M4.8 X 192
6TMB428201FRAME, BASKET, FLOAT1
7TMB405432BAG, FILTER, NYLON (NOT SHOWN)1
