To purchase parts for the AVAC 12 Vacuum (Tank Assembly):

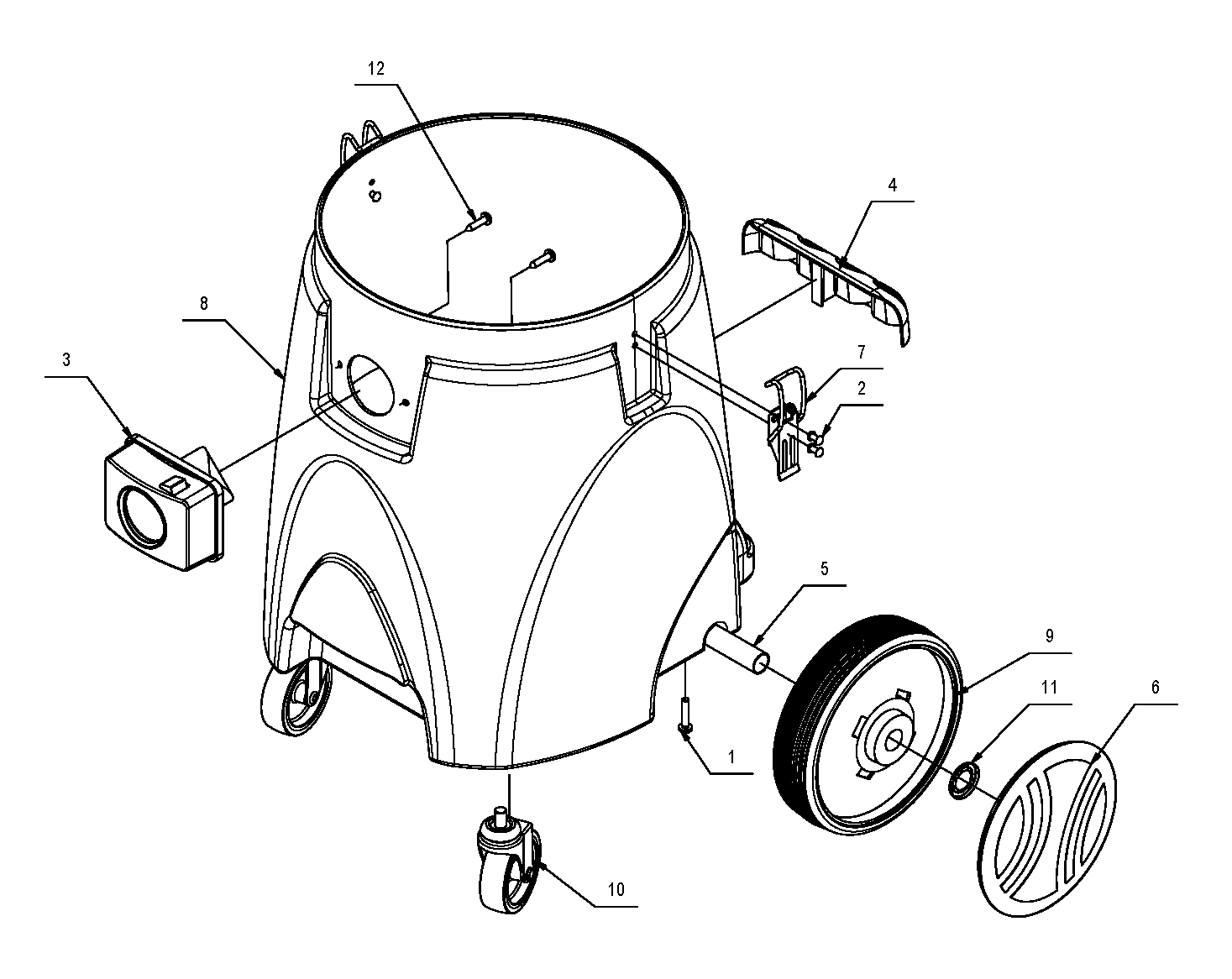

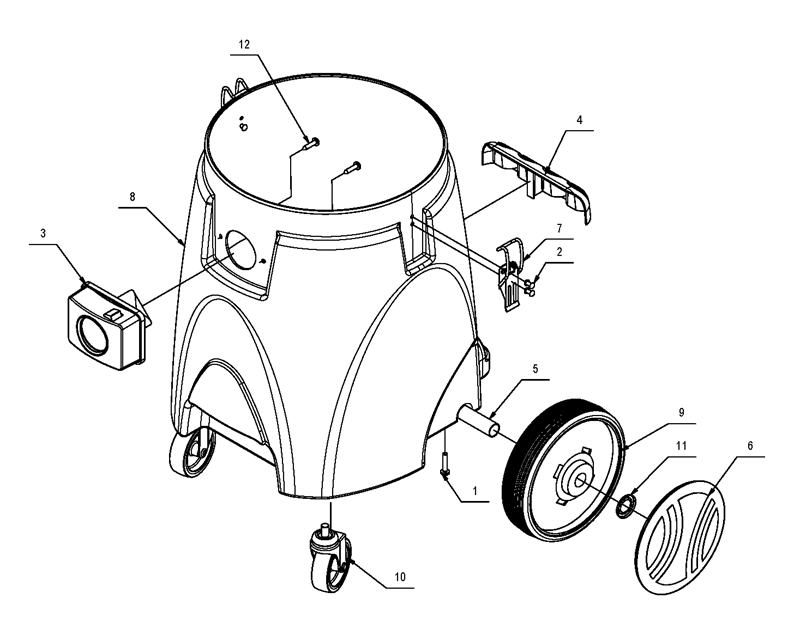

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | Qty |
| 1 | TMB408857 | SCREW, M6 X 30MM | 2 |
| 2 | TMB409360 | RIVET, M4.8 X 14MM | 4 |
| 3 | TMB412464 | ADAPTER, INTAKE | 1 |
| 4 | TMB412527 | HOLDER, ACCESSORY | 1 |
| 5 | TMB416866 | AXLE, WHEEL, D20 | 1 |
| 6 | TMB417184 | COVER, WHEEL, BLACK, D20 | 2 |
| 7 | TMB417506 | LATCH, CLOSUR | 2 |
| 8 | TMB417638 | TANK, GREY, 12 GAL | 1 |
| 9 | TMB418012 | WHEEL, GREY, D20 | 2 |
| 10 | TMB418017 | CASTER, SWIVEL | 2 |
| 11 | TMB418140 | LOCK, RETAINING, 20MM | 2 |
| 12 | TMB418287 | SCREW, SELF-TAPPING, M4.8 X 28 | 2 |
