To purchase parts for the CAV 50 Vacuum (Suction System):

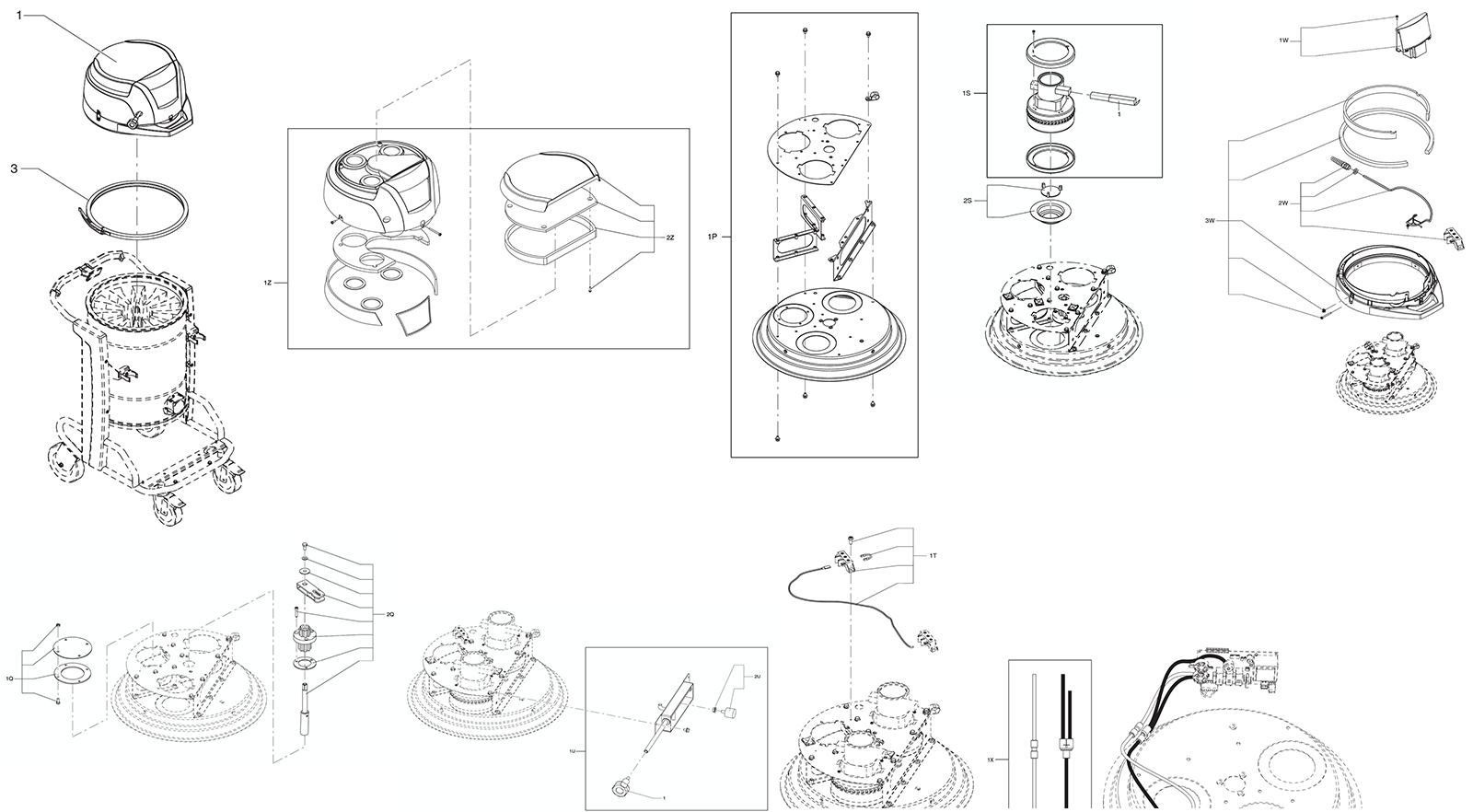

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | QTY | Description | Item | Part Number | QTY | Description | |
| 1 | 4085300344 | 1 | COMPL. HEAD CAV50 120V | 1_7 | 4084001012 | 1 | KNOB | |
| 1 | 4085300345 | 1 | COMPL. HEAD CAV100 120V | 1U | 40000906 | 1 | FILTERSHAKER KIT | |
| 3 | Z836191 | 1 | BAND | 2U | 40000907 | 1 | PUFFER KIT | |
| 1P | 40000899 | 1 | MOTOR SUPPORT KIT | 1W | 40000931 | 1 | KEYBOARD KIT CAV50 | |
| 1Q | 40000901 | 1 | 3RD MOTOR CLOSING KIT CAV50 | 1W | 40000932 | 1 | KEYBOARD KIT CAV100 | |
| 2Q | 40000900 | 1 | FILTERSHAKER DEVICE KIT | 2W | 4089100018 | 1 | CABLE KIT CAV50/100 120V | |
| 2R | 40000900 | 1 | FILTERSHAKER DEVICE KIT | 3W | 40000908 | 1 | DIFFUSER KIT | |
| 1_5 | 40000886 | 1 | MOTOR BRUSH KIT | 1X | 40000914 | 1 | FILTER SENSOR HOSE KIT | |
| 1S | 40000928 | 1 | MOTOR KIT V115 800W CAV100 | 1Z | 40000933 | 1 | COMPLETE COVER KIT | |
| 1S | 40000938 | 1 | MOTOR KIT V110 UK | 2Z | 40000916 | 1 | AIR INTAKE COVER KIT | |
| 2S | 40000902 | 1 | BUTTERFLY VALVE KIT |
