To purchase parts for the Clarke American B2+DC (Lower Assembly):

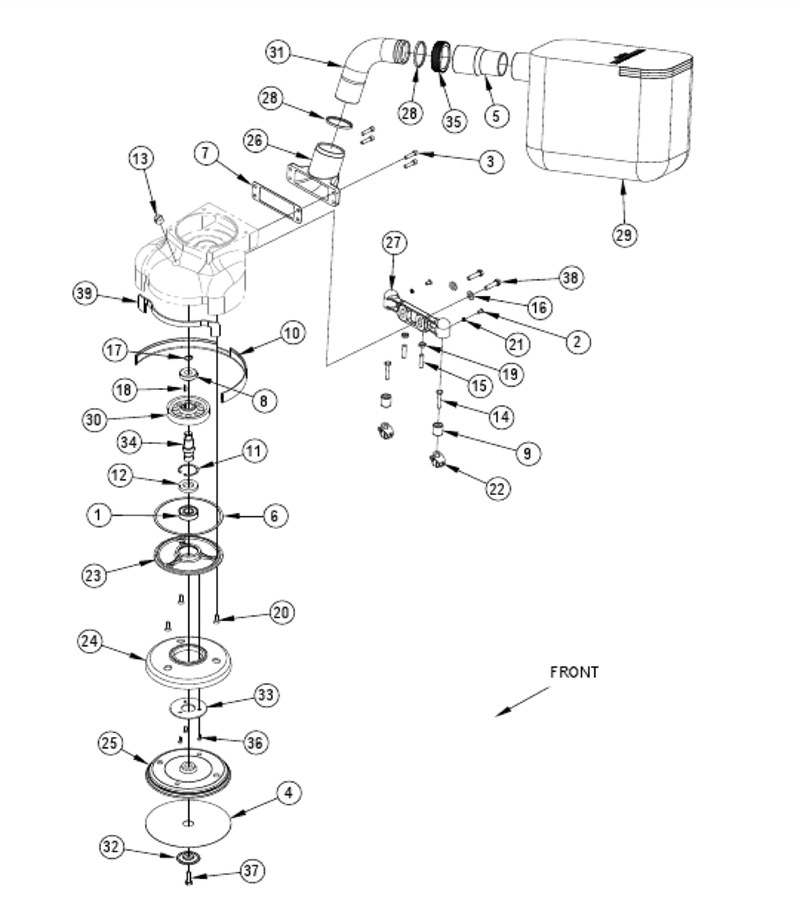

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Parts Number | QTY | Description | Item | Parts Number | QTY | Description | Item | Parts Number | QTY | Description | ||
| 1 | 902550 | 1 | BEARING BALL-6203 | 16 | 87000A | 2 | WASHER .39X.75X.09 FLAT ST | 28 | 30613A | 2 | SEAL PIPE S-7 & B-2 EDGERS | ||
| 2 | 962015 | 2 | SCREW 10-24 X 3/8 PN ST PH | 17 | 467308 | 1 | RING IDLR GEAR STUD 189 | 29 | 53544B | 1 | BAG EDGER | ||
| 3 | 962454 | 4 | SCR 1/4 -20X1 SC ST CAP | 18 | 915028 | 1 | KEY 1/8 X 5/8 WDRF 5 | 30 | 61568A | 1 | GEARDRIVEB-2 RH | ||
| 4 | 56382755 | 1 | DISC 7 SANDING 60 CS=100 | 19 | 920160 | 2 | NUT-5/16-18 HEX JAM | 31 | 61712A | 1 | TUBE EXHAUSTB-2 | ||
| 5 | 30563A | 1 | ADAPTOR2 TUBE X 1.50 CUFF | 20 | 962098 | 3 | SCREW 1/4 -20X 3/4 FL ST | 32 | 62411A | 1 | CLAMP SANDPAPER B-2 EDGER | ||
| 6 | 34232A | 1 | GASKET-GEAR CASE COVER | 21 | 980650 | 2 | WASH .19 x .34 x .04 LOCK | 33 | 66917A | 1 | RETAINER-ROLLER GUARD | ||
| 7 | 34233A | 1 | GASKET-DISCHARGE PIPE | 22 | 10212A | 2 | WHEEL & YOKE ASM | 34 | 67426A | 1 | SHAFT-GEAR | ||
| 8 | 51127A | 1 | BEARING-BALLSHIELD & SEAL | 19901A | 2 | CASTER YOKE ASM B-2+ | 35 | 80276A | 1 | NUT-SLIP JOINT 2X2 | |||
| 9 | 51128A | 2 | BEARING-DBL ROW UNGROUND | 12203A | 2 | CASTER ASSY | 36 | 84200A | 3 | SCREW 8-32 X 1/2 FH ST PH | |||
| 10 | 52853A | 1 | SKIRT B-2 EDGER | 980657 | 2 | WASHER LOCK 1/4 STD(Not Shown) | 37 | 85715A | 1 | SCR 5/16-18X1 HC SZ SPEC.FLUTE | |||
| 11 | 57702A | 1 | RING RETAINING INTERNAL | 23 | 12906A | 1 | COVER ASM-GEAR CASE | 38 | 85814A | 2 | SCREW 5/16-18 X 1 1/4 HX HD | ||
| 12 | 58114A | 1 | SEAL-SHAFT | 24 | 15000A | 1 | GUARD ASM-ROLLER | 39 | 38103A | 1 | SEAL-DUST | ||
| 13 | 66130A | 1 | PLUG-GEAR HSG. VENT | 25 | 21067A | 1 | DISC SANDING | 30050A | 1 | B-2 CE SANDER CASE***USE AS035800*** | |||
| 14 | 85701A | 2 | SCR 1/4 -20X1&1/2 HX ST CAP | 26 | 21078A | 1 | ADAPTOR EXHAUST B-2 EDGER | 55724A | LATCH SET OF 2 CASEEDGER | ||||
| 15 | 86203A | 2 | SCR 5/16-18X1&1/4 ST ST | 27 | 21106A | 1 | BRACKET-CASTER |
