To purchase parts for the Clarke Super E (Main Assembly):

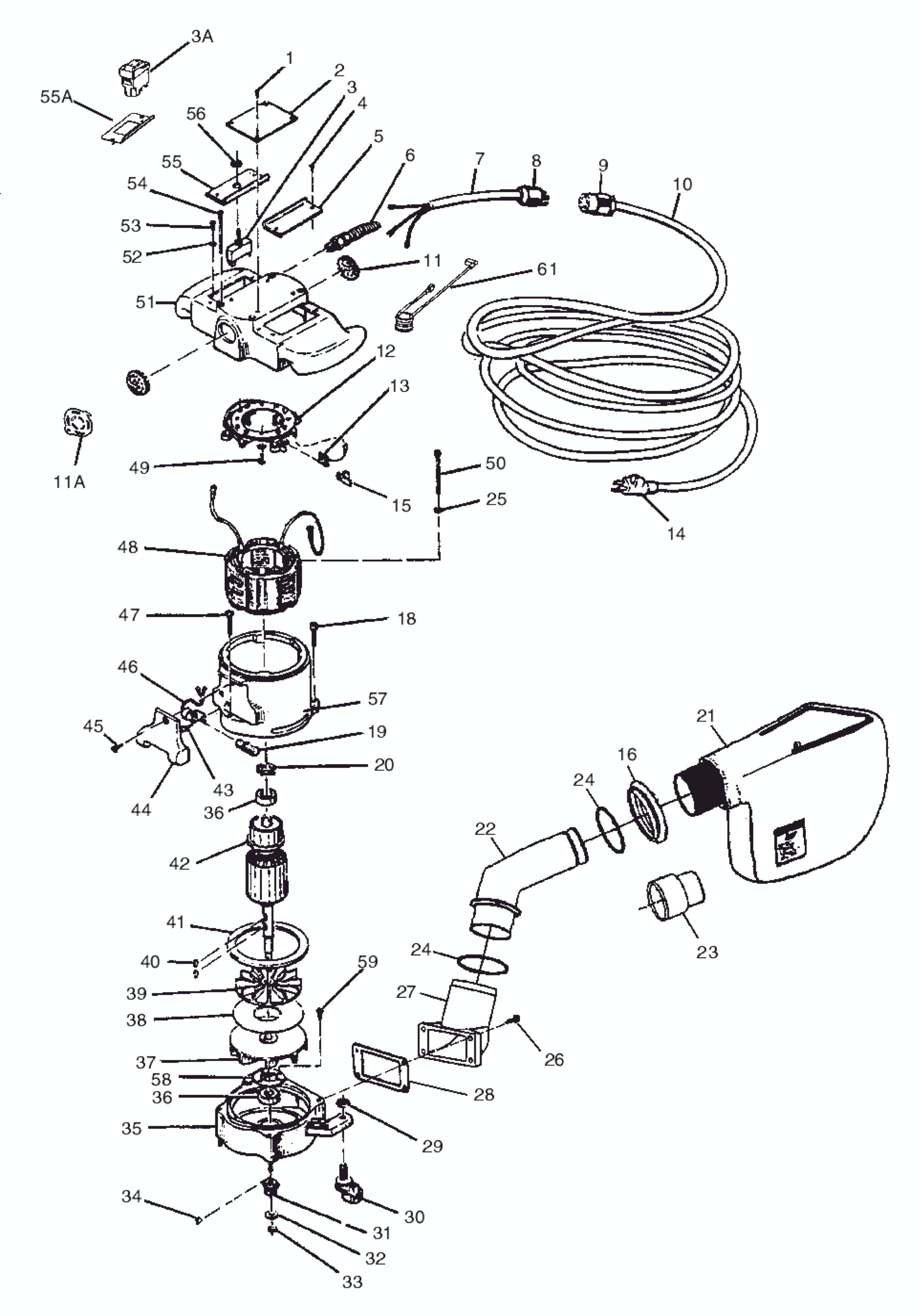

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | QTY | Description | Item | Part Number | QTY | Description | Item | Part Number | QTY | Description | ||
| 1 | 962555 | 4 | SCR 0-00X 3/16 FT ST DRIVE | 16 | 80276A | 1 | NUT-SLIP JOINT 2X2 | 40 | 915028 | 2 | KEY 1/8 X 5/8 WDRF 5 | ||
| 2 | 70486A | 1 | PLATENAME SUPER E | 17 | 962004 | 1 | Screw 6-32 x 3/8 | 41 | 293403 | 1 | GASKETEXH FAN BAFFLE S-7R | ||
| 3 | 47394A | 1 | SWITCH DPST 16A/125V SUPER | 18 | 962454 | 2 | SCR 1/4 -20X1 SC ST CAP | 42 | 40321A | 1 | ARMATURE ASM SUPER 7E | ||
| 3A | 40775A | 1 | SWITCH 16A 230/50 COIL | 19 | 40920A | 1 | LIGHT BULB RUGGED EDGERS 115V | 40324A | 1 | ARMATURE ASM. SUPER 5E 240V | |||
| 4 | 962545 | 4 | SCREW 6-32 X 3/8 FLAT HEAD | 911116 | 1 | LAMPCLEAR250V 10WBAYONETB- | 43 | 85393A | 1 | SCREW 10-24 X 1/4 PN SZ PH | |||
| 5 | 302309 | 1 | COVER MOTOR BRUSH L H | 20 | 298306 | 1 | SPRING LOAD 56 | 44 | 31408A | 1 | B-2 EDGER CASE** USE 30050A** | ||
| 6 | 56475A | 1 | RELIEF STRAIN 240V S7 | 21 | 53544B | 1 | BAG EDGER | 45 | 962310 | 1 | SCR 10-24X 1/2 OV P ST MACH | ||
| 7 | 41960A | 1 | CORD INTERCONNECTING SUPER 7 | 22 | 61564A | 1 | TUBE EXHAUST S-7 | 46 | 46902A | 1 | SOCKET ASSY | ||
| 41947A | 1 | CORD POWER 14-3 14 240V 7 | 23 | 30563A | 1 | ADAPTOR2 TUBE X 1.50 CUFF | 47 | 962988 | 1 | SCREW 1/4-20X1 1/4 PN ST PH | |||
| 40841A | 1 | CORD ASM W/UK1-13P | 24 | 30613A | 2 | SEAL PIPE S-7 & B-2 EDGERS | 48 | 42820A | 1 | FIELD & COIL ASM 115V | |||
| 10973A | 1 | CORD ASM W/EU1-16P SUPER E | 25 | 980643 | 2 | WASHER 7/16ODX.036THK | 42819A | 1 | FIELD & COIL ASM 240V | ||||
| 8 | 912169 | 1 | PLUGELECTRICAL NEMA L5-15P | 26 | 962289 | 4 | SCREW 1/4-20 X 3/4 SOCKET HD | 49 | 962727 | 4 | SCREW 8-32X 1/2 PN ST TP23 PH | ||
| 45602A | 1 | PLUGELECT. NEMA L6-15P | 27 | 21077A | 1 | ADAPTOR EXHAUST SUPER-7 | 50 | 962211 | 2 | SCR 10-24X2&1/2 RD P ST MACH | |||
| 9 | 911461 | 1 | CONNECTOR ELECT. NEMA L5-15R | 28 | 293406 | 1 | GASKET EXHAUST BRKT 95 | 51 | 32386A | 1 | COVER MOTOR PNTD SUPER 7E | ||
| 41708A | 1 | CONNECTORELECT.NEMA L6-15R | 29 | 920196 | 2 | NUT-1/2-13 HEX JAM | 52 | 980621 | 1 | WASHER 8 EXT. TOOTH PLTD | |||
| 10 | 42234A | 1 | CORD SET SUPER 7E | 30 | 52132A | 2 | CASTER SWIVEL SUPER**OBSOLETE** | 53 | 962550 | 1 | SCREW 8-32X 5/16 RD ST TP23 PH | ||
| 40007A | 1 | CORDSET 50FT W/AU1-10P | 31 | 66199A | 1 | PULLEYMOTOR SUPER 7E | 54 | 962404 | 4 | SCREW 10-24X3 1/4 FH ST PH | |||
| 11 | 306802 | 2 | PLUG VENT | 32 | 980646 | 1 | WASHER 1/4 SAE FLAT PLTD | 55 | 302310 | 1 | COVER MOTOR BRUSH R H | ||
| 11A | 53597A | 2 | COVER VENT SUPER E | 33 | 81302A | 1 | NUTHEX JAM1/4-20 | 55A | 61774A | 1 | PLATE SWITCH SUPER E | ||
| 12 | 40130A | 1 | HOLDER ASM BRUSH | 34 | 915561 | 1 | HP404 KEY HARDENED | 56 | 646302 | 1 | SWITCH PLATE | ||
| 13 | 40818A | 4 | BRUSHCARBON EACH S-7A/7R | 35 | 24527A | 1 | HOUSING FAN PNTD S7E GRAY | 57 | 24528A | 1 | HOUSING MOTOR PNTD SUPER 7E | ||
| 40055A | 4 | BRUSH CARBON | 36 | 902567 | 2 | BEARING BALLDOUBLE SEALED | 58 | 57396A | 1 | RETAINER BEARING SUPER 5E | |||
| 14 | 911248 | 1 | PLUG ELECT. NEMA 5-15P | 37 | 303002 | 1 | IMPELLER VACUUM METAL S7A/R | 59 | 85313C | 2 | SCREW 6-32 X 3/8 PAN HD | ||
| 40023A | 1 | PLUG AU1-10P | 38 | 306102 | 1 | PLATE EXHAUST FAN BAFFLE | 60 | 40840A | 2 | INDUCTOR .1MH | |||
| 15 | 50932A | 4 | SPRING BRUSH HOLDER | 39 | 303004 | 1 | FAN MOTOR COOLING METAL S7 |
